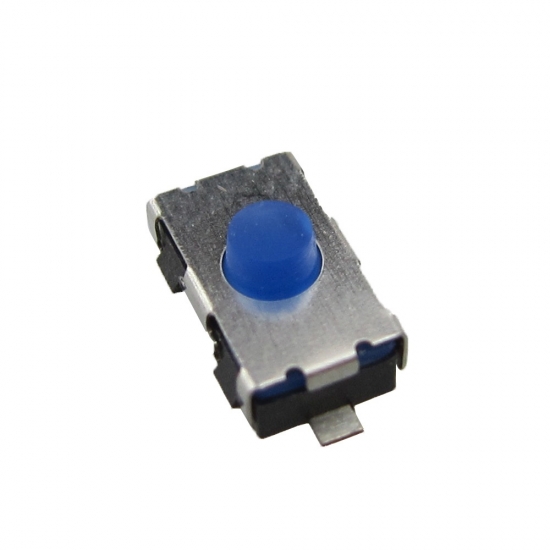

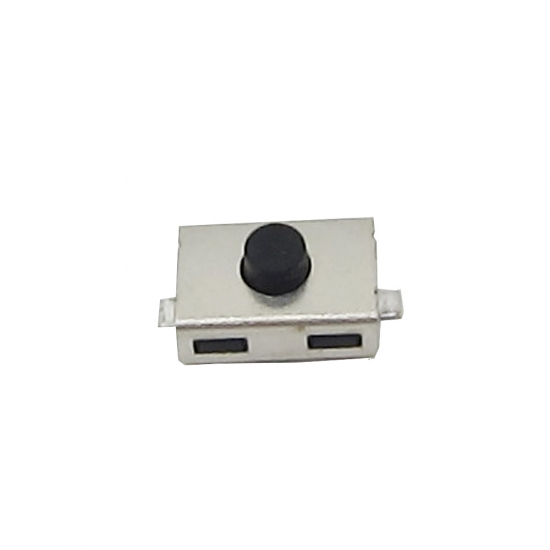

Smd Momentary Tact Switch Tactile Switch

KAN0441F: Waterproof type, Smd Momentary, 6*4mm Tact Switches

  • Brand:

    Gangyuan
  • Item No.:

    KAN0441F
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black or Bule
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

Smd Momentary Tact Switch Tactile Switch


Basic Information

P/N
KAN0441F
Dimension
6*4mm
Rating current

12VDC 50mA

Operating force
100gf, 160gf, 260gf(at customers request)
Life cycles
100,000cycles
Travel

0.25±0.1mm

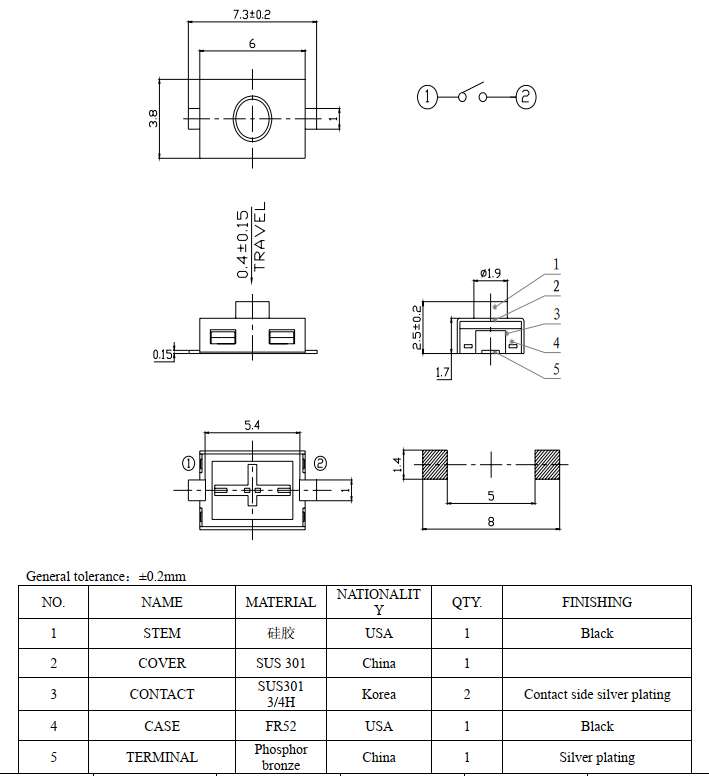

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
