Home Switch Tactile switch 04 Series tact switch KAN0441 White SMD Mini tact Switch 12V

KAN0441 White SMD Mini tact Switch 12V

Gangyuan KAN0441 White SMD Mini tact Switch 12V, Operating force: 160gf/260gf,Life cycles:30,000/50,000 cycles Min,Travel:0.25±0.1mm  for optional.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441C
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    white and red button
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    5-7 Working Days after payment
  • Product Detail

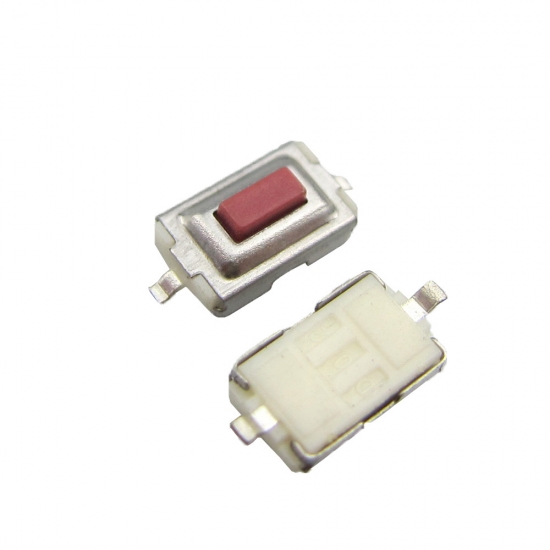

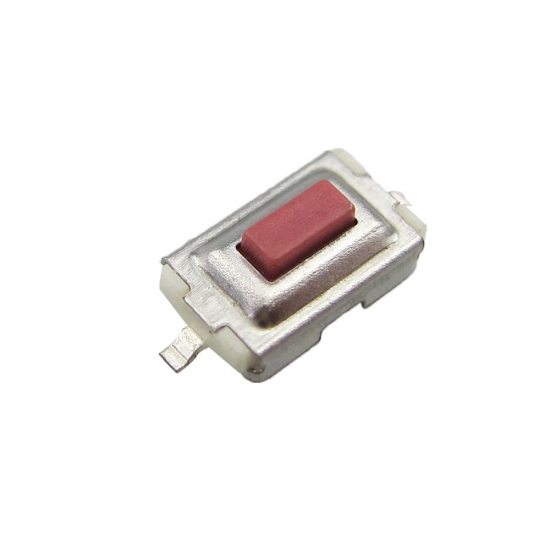

KAN0441 White SMD Mini tact Switch 12V


Feature


P/N: KAN0441

Type: SMD tact switch

Dimension:6x3.5xHmm

Operating force: 160gf/260gf

Life cycles:30,000/50,000 cycles Min

Travel:0.25±0.1mm


Operation life
30,000/50,000 cycles Min
Salt Mist
35℃±2℃  8h±1h
Sulfuration  resistance
40±2℃  72h
Moisture  resistance
60±2℃   96h
Insulation Resistance
≥100MΩ
Contact resistance
≤50mΩ
Heat resistance
80±2℃  96h
Resistance to low temp
-30±2℃  96h
Return Force
0.4min
Press force
1.6±0.5N
Model Number
KAN0441
MOQ
1000




Dimension







Application

Use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
