Home Switch Tactile switch 68 series tact switch Right angle tact switch with led

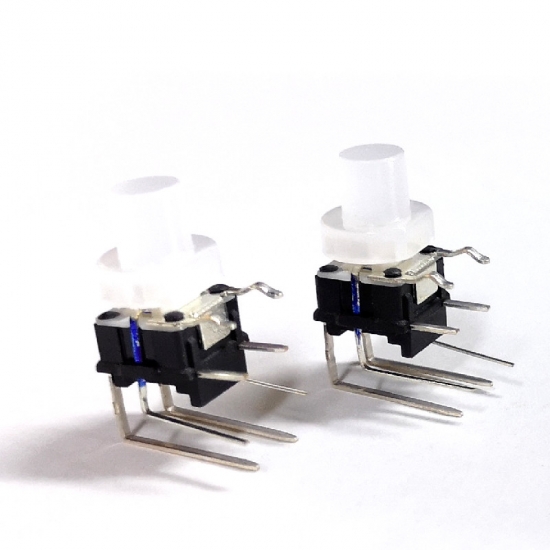

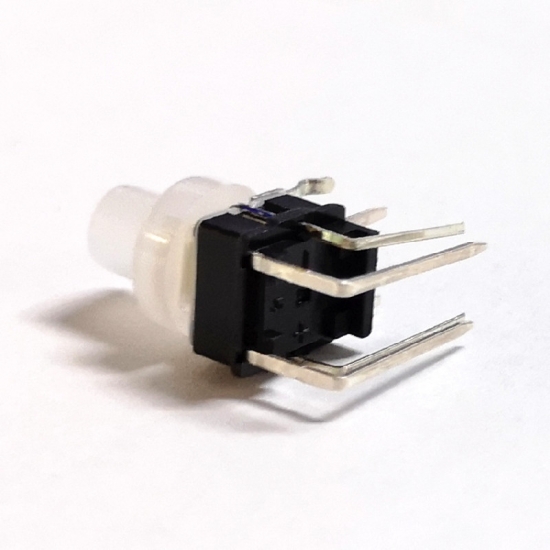

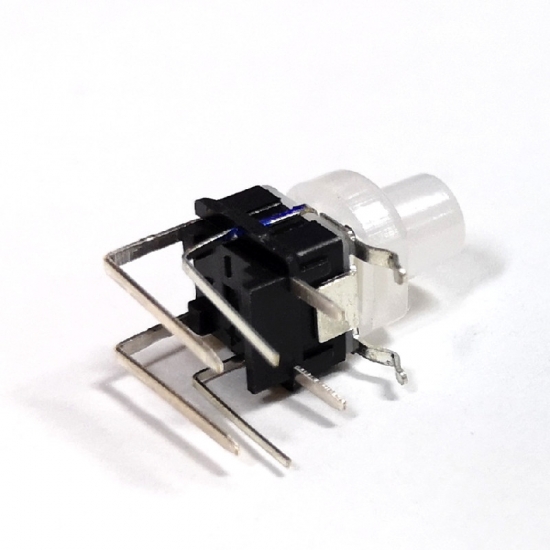

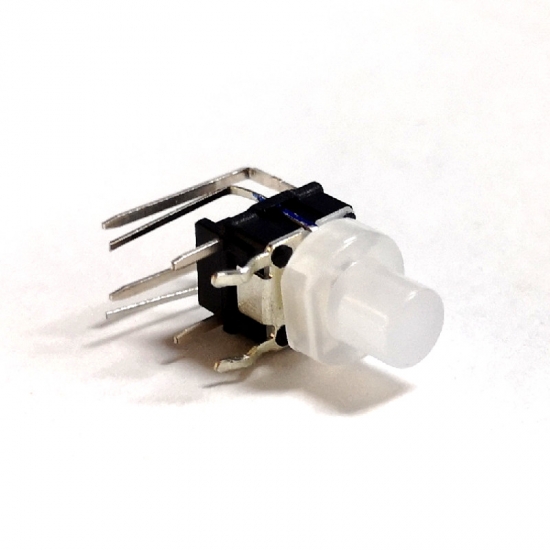

Right angle tact switch with led

The cover with light tact switch can be transparent or silver. There are single-color and dual-color options for led lights.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN6831
  • Order(MOQ):

    500pcs
  • Payment:

    EXW
  • Product Origin:

    Zhejiang ,China
  • Color:

    White Red Yellow Green...
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    6.80mm x 6.80mm
  • Mounting Type

    Right Angle
  • lllumination

    llluminated
  • IP Rating

    IP4X
  • Product Detail

8 pin pcb mount 12V led push button tact switch

The overall height of the product is 12.2mm


 Basic Information


Type:illuminated surfact mount tact switch

Rating: 12VDC 50mA

Contact resistance: 100mΩ Max

Insulation resistance: 100MΩ 250VDC for 1 Min

Dielectric strength: 250VAC(50/60Hz) for Min

Life test: 100000 cycles

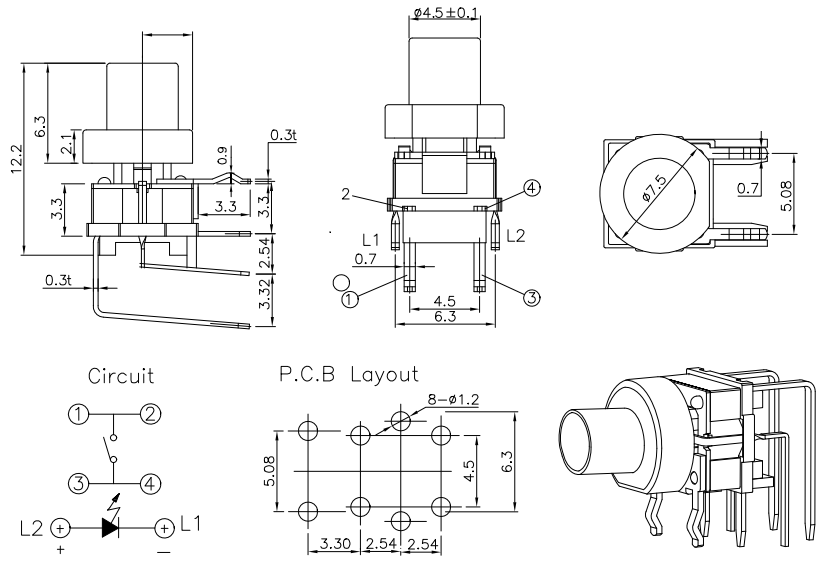

 Dimension





 What is the led tact switch ?


The LED tact switch is consist of tactile switch and embedded with LED light,the tact switch has 4 pins and led has two pins,

so the led tact switch has 6 pins terminal ,you can put it into the PCb directly and solder it on the easy PCB board.

There has many LED color are available and multiple caps options.


 Related



  FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
