Home Switch Tactile switch 04 Series tact switch Mini RGB push button SMD tact switch

Mini RGB push button SMD tact switch

Mini RGB push button SMD tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441C-1
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    Silver and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    5-7 Working Days after payment
  • Product Detail

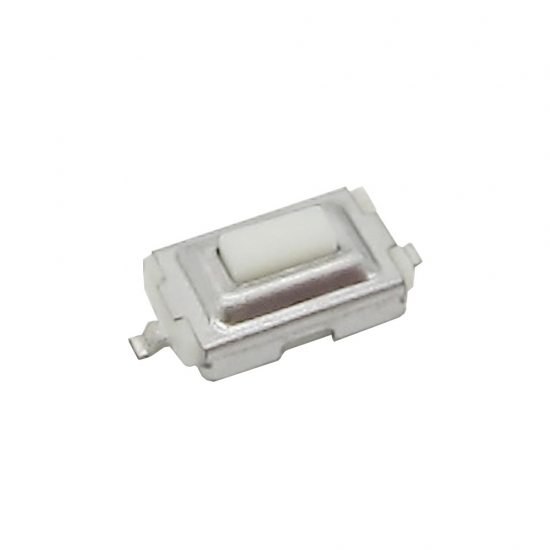

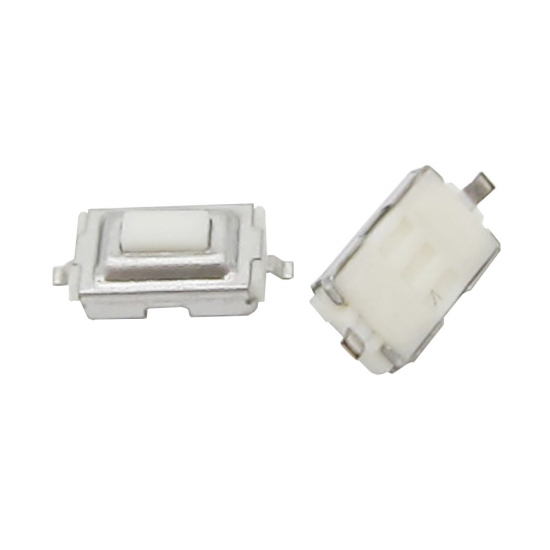

Mini RGB push button SMD tact switch

Feature

P/N: KAN0441

Type: SMD tact switch

Dimension:6x3.5xHmm

Operating force: 160gf/260gf

Life cycles:30,000/50,000 cycles Min

Travel:0.25±0.1mm

Operation life
30,000/50,000 cycles Min
Salt Mist
35℃±2℃  8h±1h
Sulfuration  resistance
40±2℃  72h
Moisture  resistance
60±2℃   96h
Insulation Resistance
≥100MΩ
Contact resistance
≤50mΩ
Heat resistance
80±2℃  96h
Resistance to low temp
-30±2℃  96h
Return Force
0.4min
Press force
1.6±0.5N
Model Number
KAN0441
MOQ
1000

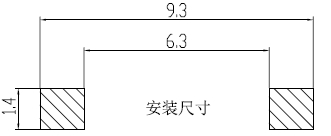

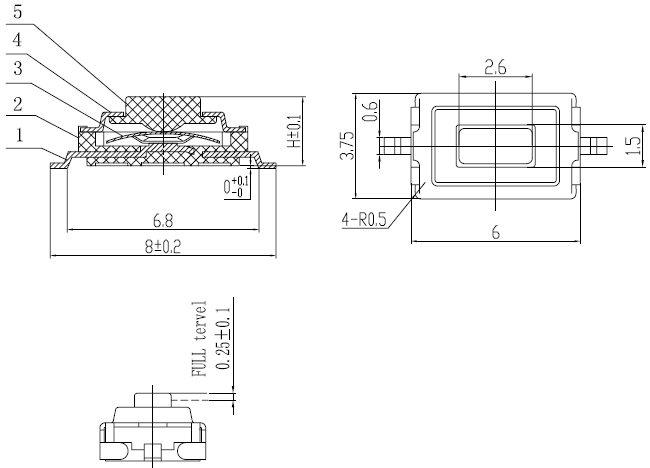

Dimension






Application

Use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
