Wenzhou Gangyuan Electronics Co.,Ltd.

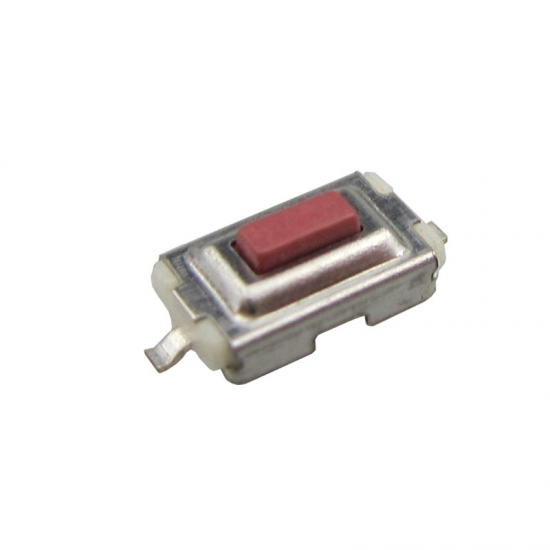

KAN0441B: DC12v 50mA, 100gf/ 160gf/ 260gf, mini micro tact switch.
Brand:
GangyuanItem NO.:
KAN0441FOrder(MOQ):
1000Payment:
T/T before shipmentProduct Origin:
ChinaColor:
Red buttonShipping Port:
Shenzhen/ NingboLead Time：
5-7 working days depend on order quatityGangyuan Mini 2 pin Hot sale SMD Tact Switch KAN0441B
Temperature
-20℃to+70℃
Rating
50mA.12V DC
Insulation resistance
100mΩ min.100V DC
Dielectric strength
250V AC for 1 min
Contact resistance
100mΩ max
Travel
0.25±0.1mm
Height
3.15mm-19.85mm
Operating Force
100gf/160gf/260gf
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0441F: SMD, 2 Pins, waterproof tactile Switch.
3.9x1.55x2.9mm Miniature Tactile Switches waterproof IP65 slide push SMD switch for Mobile Phone etc, new product.
Gangyuan KAN0441 White SMD Mini tact Switch 12V, Operating force: 160gf/260gf,Life cycles:30,000/50,000 cycles Min,Travel:0.25±0.1mm for optional.
Mini RGB push button SMD tact switch.
KAN0442B: SMD DC12v 50mA tactile switch.
KAN0447: DC12v 50mA, 3.9*3.55mm, smd with pole tact switch.
KAN0446: DC 12v 50mA, SMD type, high resistance tact switch.
KAN04445: 4.8*4.8mm, height=0.5mm, mini smd tact switch.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
