Home Switch Tactile switch 04 Series tact switch 6x3.8mm 2 Pin SMD Surface Mount Waterproof Tact Switch

6x3.8mm 2 Pin SMD Surface Mount Waterproof Tact Switch

KAN0441F: SMD, 2 Pins, waterproof tactile Switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441F
  • Order(MOQ):

    1000
  • Payment:

    T/T L/C D/P
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo.Shenzhen
  • Lead Time:

    7-10 working days de[ends on actual quan
  • Product Detail

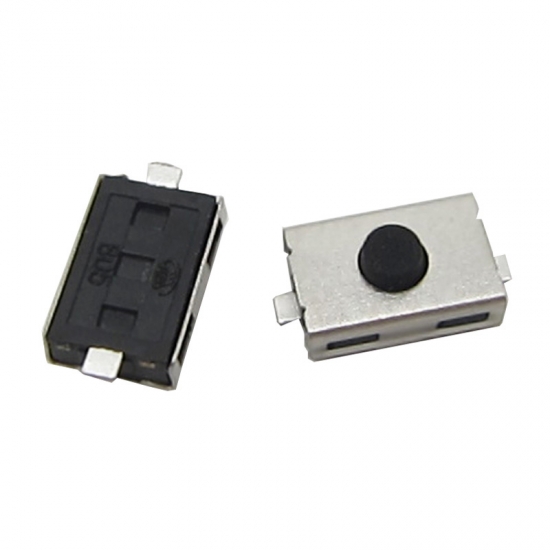

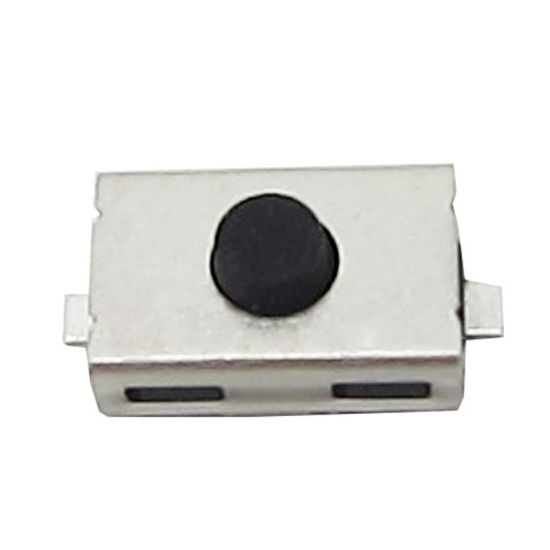

6x3.8mm 2 Pin SMD Surface Mount Waterproof Tact Switch


Basic Information

P/N KAN0441F
Rating DC 12v 50mA
Size 6*3.8mm
Height 2.5mm
Operating force 100gf/ 160gf/ 260gf ±50
Life 60,000/ 80,000/ 100,000 cycles

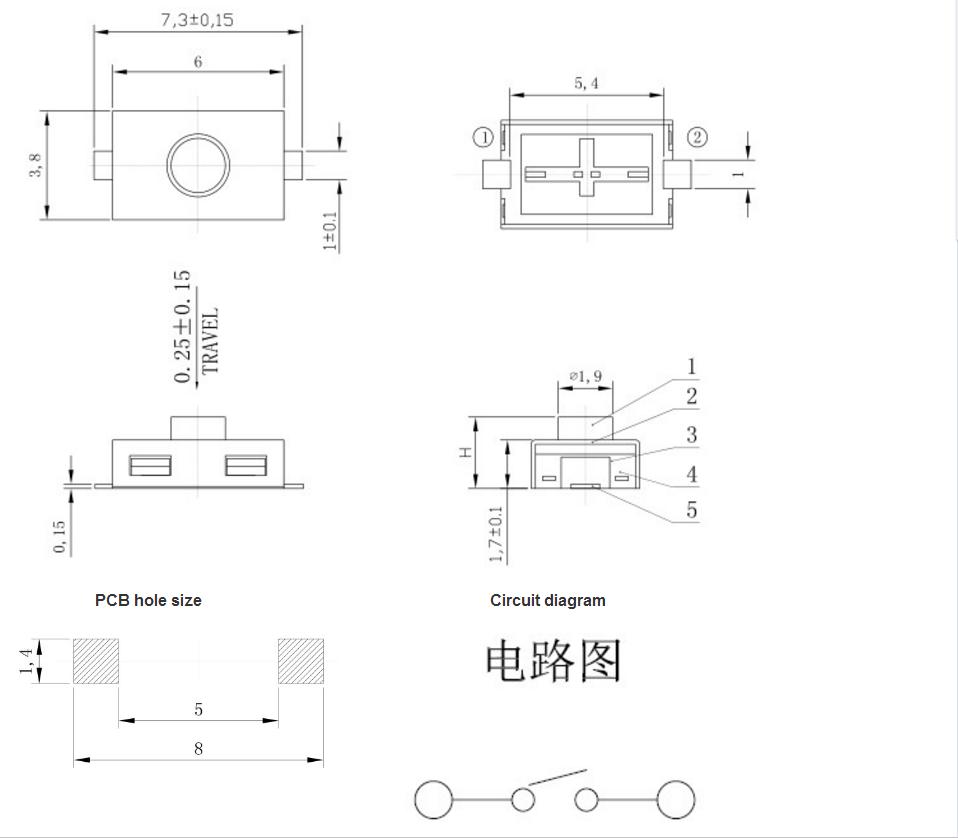

Dimension




Overview

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Gangyuan
Model Number: KAN0441F
Protection Level: IP67
Type: SMD
Certification: UL,ROHS,SGS
Packing: Tape
