Home Switch Tactile switch 04 Series tact switch SMD Push Button Tactile Switch

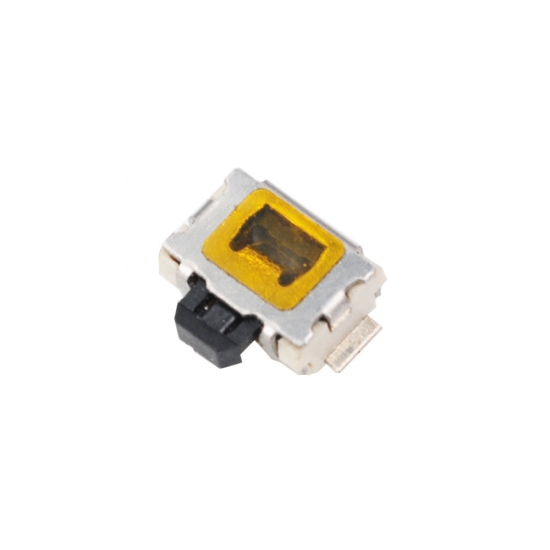

SMD Push Button Tactile Switch

KAN0447: DC12v 50mA, 3.9*3.55mm, smd with pole tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0447
  • Order(MOQ):

    1000
  • Payment:

    T/T, Paypal before produce
  • Product Origin:

    China
  • Color:

    Sliver
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    5-7 working days dependon order quality
  • Product Detail

SMD Push Button Tactile Switch


Basic Information

            P/N              KAN0447
Rating DC 12v 50mA
Size 3.9*3.55mm
Operating force 180gf/ 260gf
Life 50,000/ 100,000 cycles
Height  1.5mm

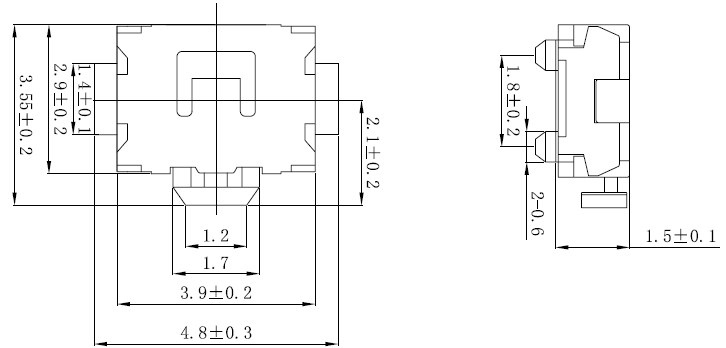

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application


Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
