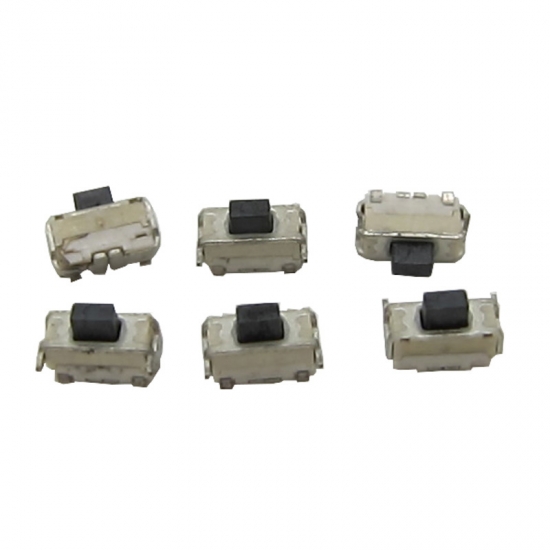

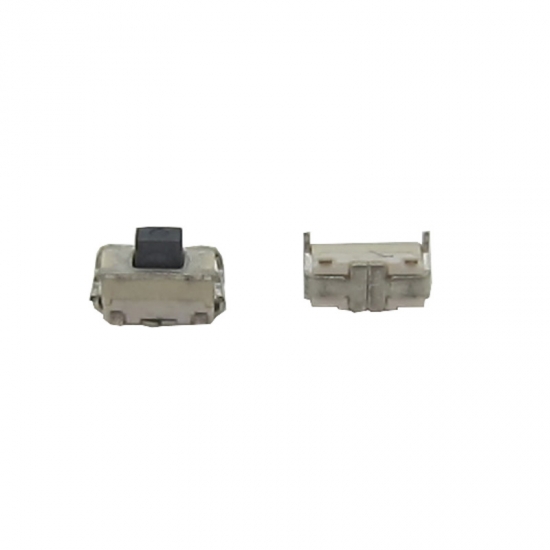

Home Switch Tactile switch 04 Series tact switch 3.9*1.55mm waterproof IP65 slide push SMD switch for Mobile Phone etc

3.9*1.55mm waterproof IP65 slide push SMD switch for Mobile Phone etc

3.9x1.55x2.9mm Miniature Tactile Switches waterproof IP65 slide push SMD switch for Mobile Phone etc, new product.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN1542-0291C
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    Silver and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3-5 Working Days after payment
  • Product Detail

3.9*1.55mm waterproof IP65 slide push SMD switch for Mobile Phone etc


Feature

Product Name: Miniature SMD Tactile Switches

Product specifications: 3.9x1.55x2.9mm

Product model: KAN0542 series

Product strength: 160gf/230gf±50gf

Product life:200,000 times

Waterproof rating: IP65

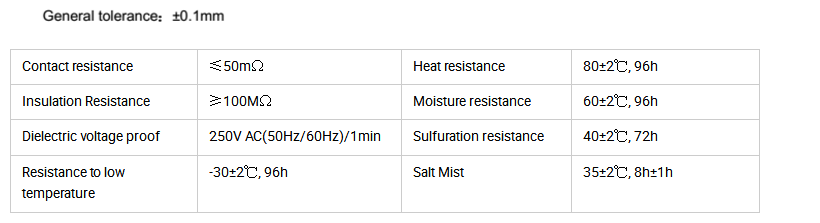

Basic parameters

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

Switching Travel: 0.25±0.1mm

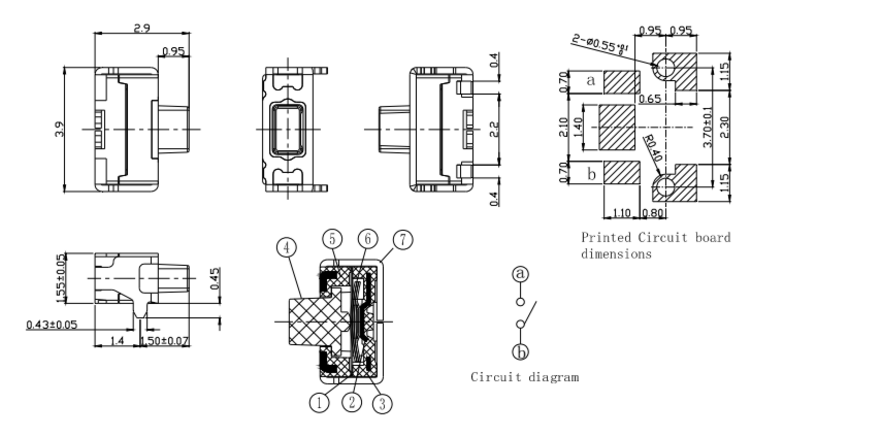

Dimension




Application

3.9x1.55x2.9mm Miniature Tactile Switches waterproof IP65 slide push SMD switch for Mobile Phone etc, new product,use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment etc, named Router, Audio and Video products, smart meter, remote control, communication products, household electric appliances, security products, toys, humidifiers and other personal care products.
