Red Button Low-profile SMD Tact Switch

KAN0442: Low-profile Smt, 6*3.5*2.5mm, Tact Switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0442
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Red button
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

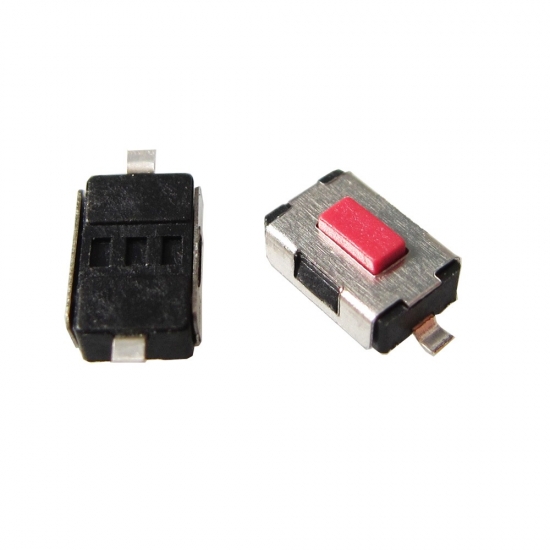

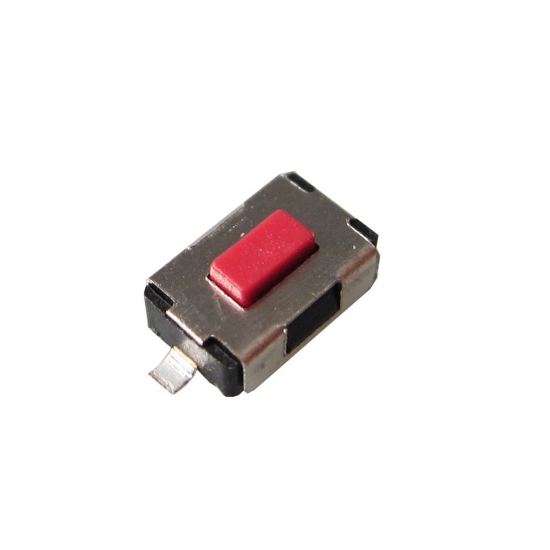

Red Button Low-profile SMD Tact Switch


Basic Information

P/N
KAN0442
Dimension
6*3.5*2.5mm
Rating current
12VDC 50mA
Operating force
100gf/ 180gf/ 260gf
Life cycles
50,000/ 100,000 cycles
Travel 0.25±0.1mm

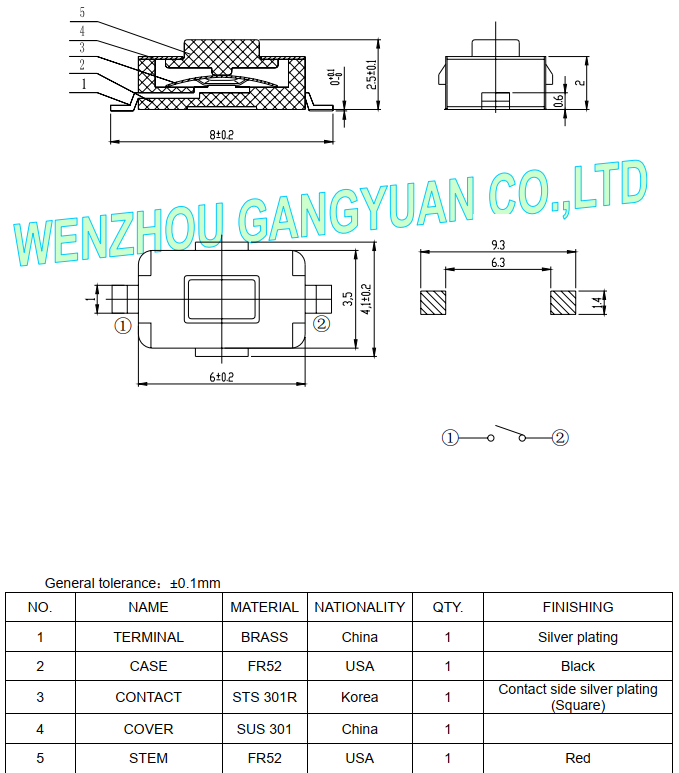

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switche

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.


Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
