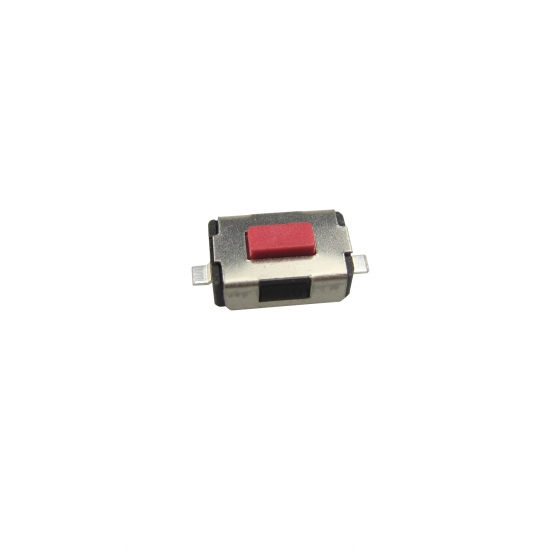

Gangyuan SMD 3.6*6 Red Sterm Tact Switch

KAN0442B: SMD DC12v 50mA tactile switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0442B
  • Payment:

    T/T, Paypal and etc.
  • Product Origin:

    China
  • Color:

    Red
  • Shipping Port:

    shenzhen/ ningbo
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

Gangyuan SMD 3.6*6 Red Sterm Tact Switch


Basic Information

P/D
KAN0442B
Type
SMD
Size
6*3.6*2.5mm
Operating force
100gf/180gf/260gf
Life
50,000/ 100,000 cycles

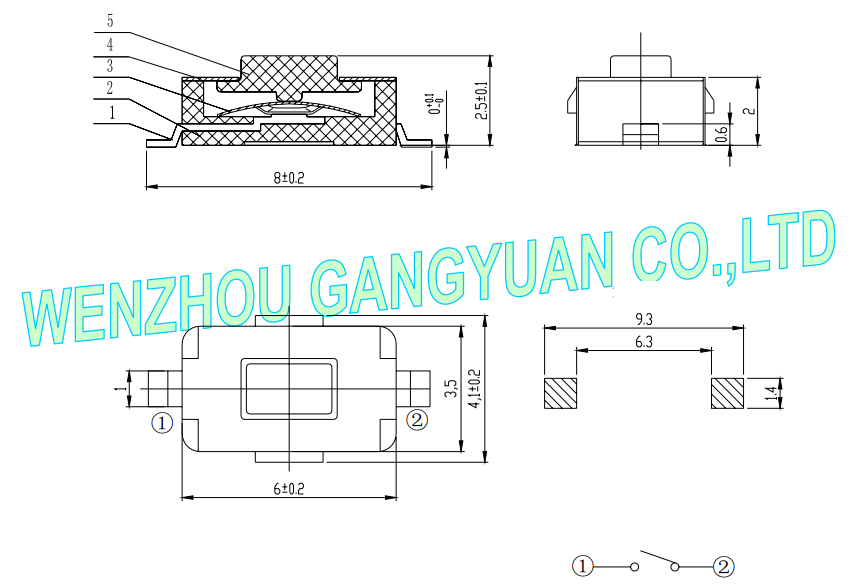

Dimension




Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature




Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
