Our advantage #

Gangyuan Electronics aims to be the top one brand electronics supplier with complete MS process and qualified workers; certified factory and equipment. We gradually grows up based on full equipment of professional factory audits and process system, as well as unit groups.

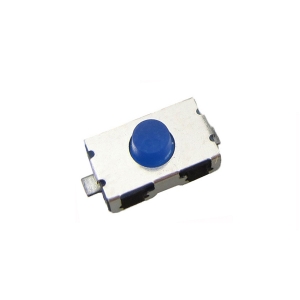

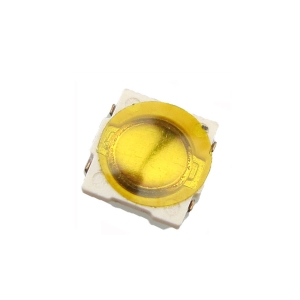

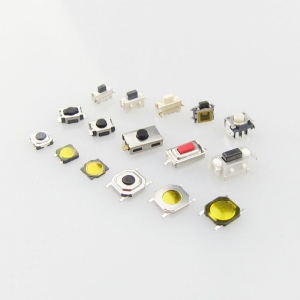

Mini SMD Tactile Switch
Ultraminiature Low Profile SMD SMT Tactile Switch

SMD Tactile switch series, Low profile, size of 3*3mm, 6*3mm, 5*5mm etc for options, widely used in consumer electronics, medical equipment, smart electornics etc

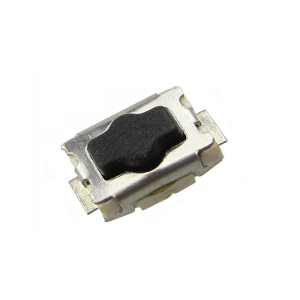

KAN0441F Waterproof
6x3.8mm 2 Pin SMD Surface Mount Waterproof Tact Switch

KAN0441F: SMD, 2 Pins, waterproof tactile Switch.

Waterproof tact switch
KAN0656 Waterproof DC12V 50mA With 2 Pin Tact Switch

KAN0656: DC 12v 50mA, smd, water resistance type tact switch.

Digital Camera Tactile Switch
2018 hot sale 4*3mm momentary tact switch SMD switch for digital products

3*4*1.8mm tactile switch offers excellent dust- and waterproof properties (Equivalent to IP67) Long Life cycles,anti Soldering flux,we have 2mm and 2.5mm height for choose.

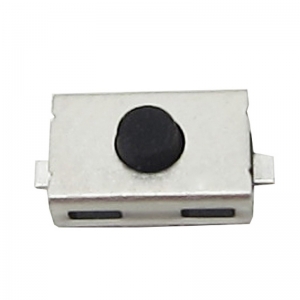

3×6 Tactile Switch
IP67 Silicone knob tactile switch SMD type

3×6 SMD Rubber actuator tactile switch meet IP67 waterproof level.Salt mist 48h.operation force 100,000 cycles

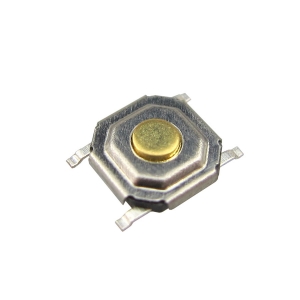

Surface Mount Tactile Switch
5.1x5.1x1.5 tactile switch SMD type

Product item KAN0542 TACT SWICH offers black and white color,plastic and metal stem is available.

Surface Mount Tactile Switch
Mini-tactile push button switch surface mount

KAN0642F is waterproof type tactile switch,IP67 rated,widely used in household appliance.

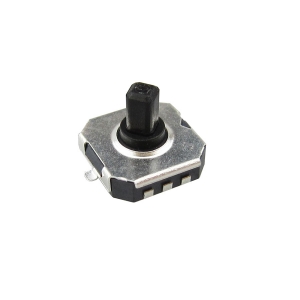

5-way tactile switch
Five direction tact switch 0.5a 12V

This 5 Way/direction SMD tactile switch simulates joystick movement. It has six  solder pads underneath, and extends to the side.

J bend Tactile Switch
Ultra-thin 4.8*4.8mm SMT Tactile Switch

KAN0542 membrane tactile switch use for laptops reset&power buttons and volume control button.

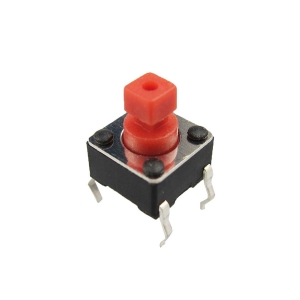

DIP Tactile Switch
6 x 6x10mm Square actuator tactile push button switch

6.0mm square stem in red color,which is easy to use and available in wide varieties.

  • About us

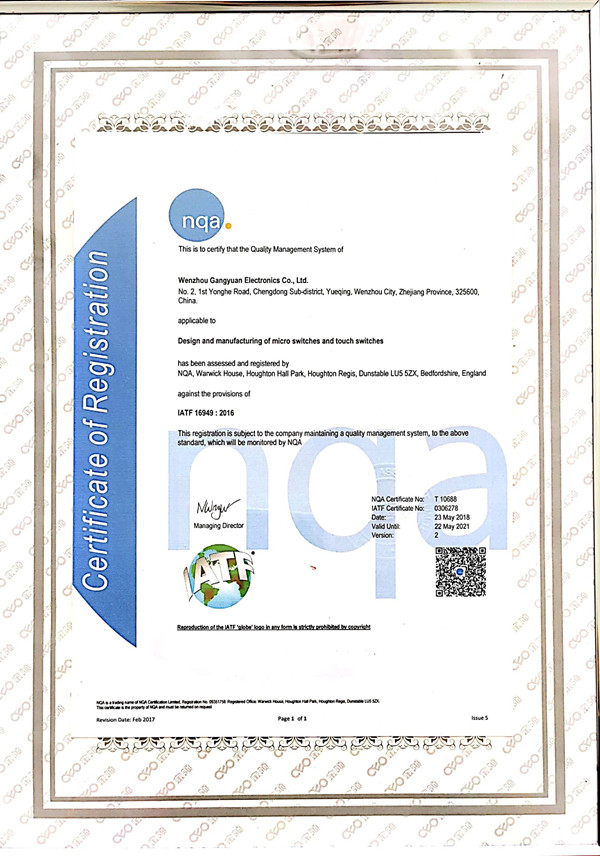

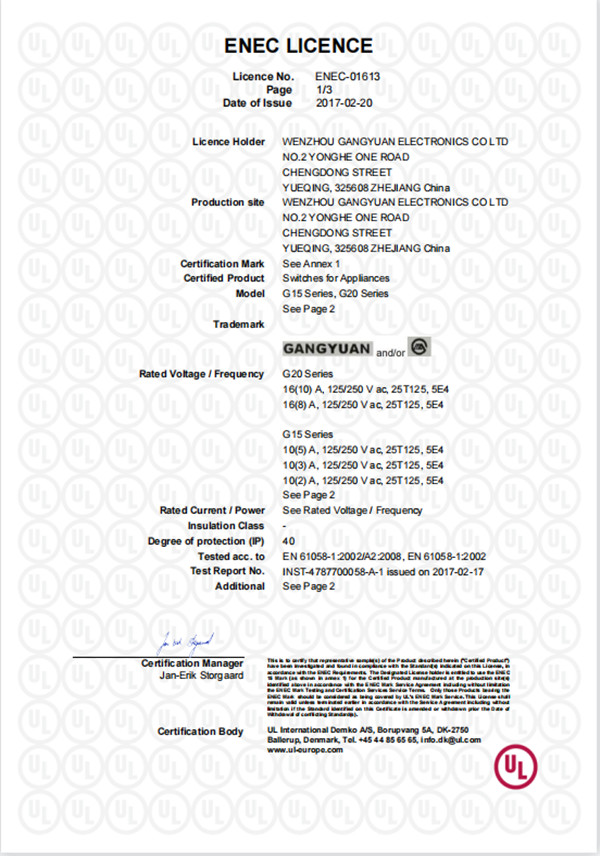

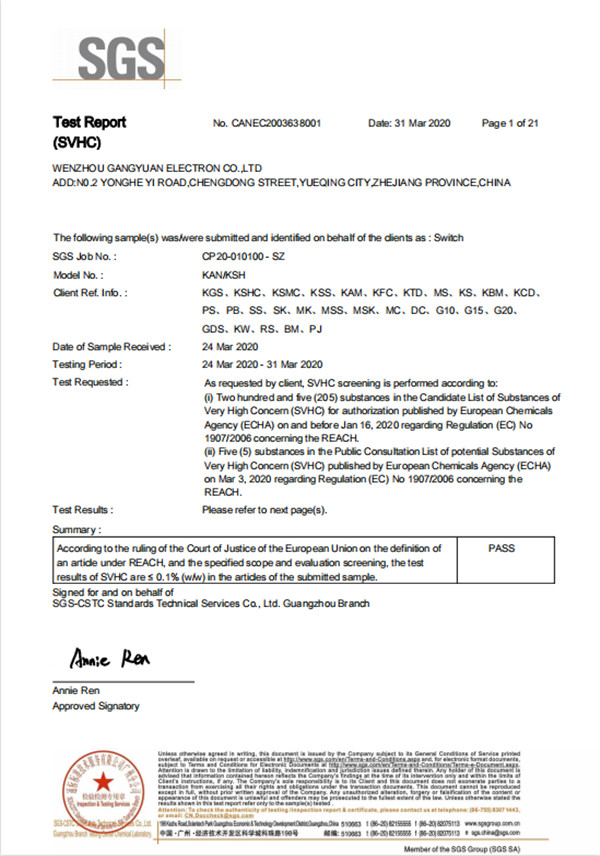

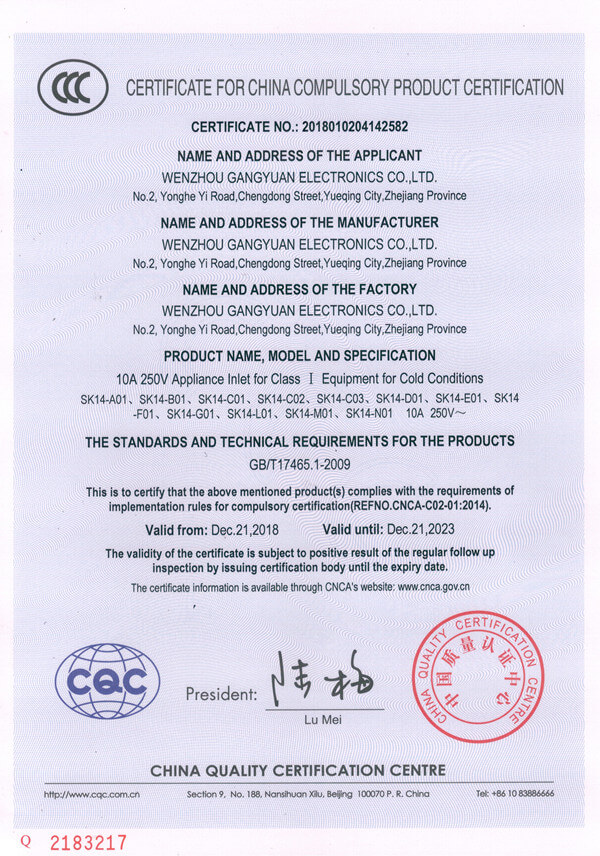

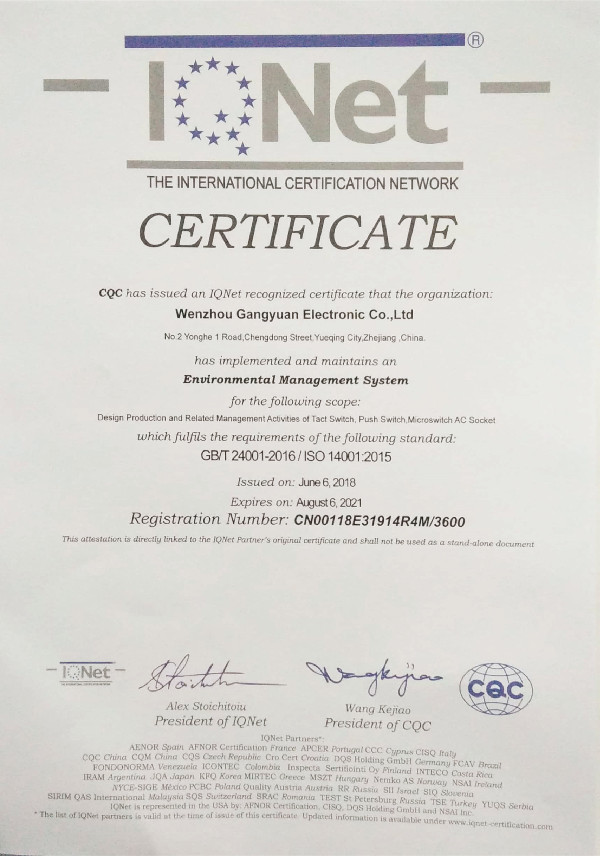

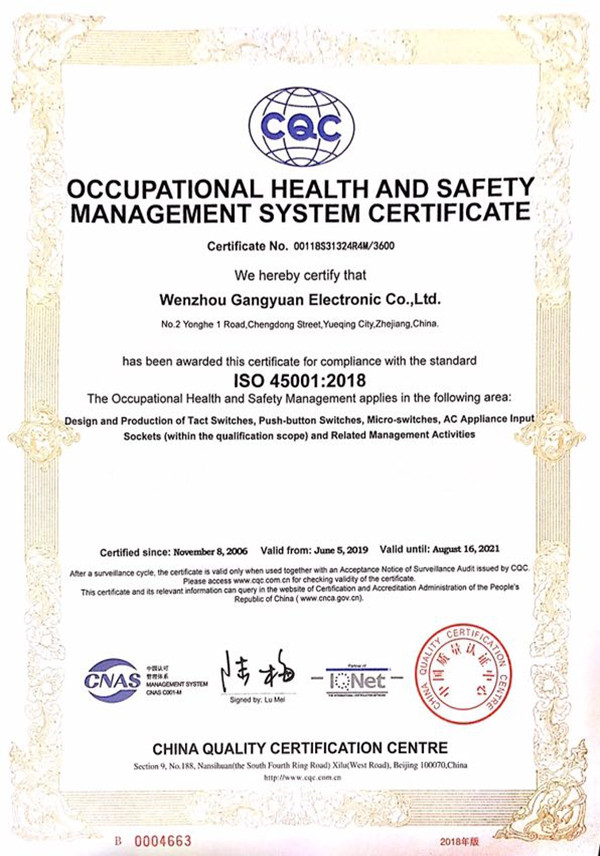

  • Certificates
Company Company


Wenzhou Gangyuan Electronics Co., Ltd.

Gangyuan Electronics was founded in 1994, focusing on Tact Switches and other electronic switch ,sockets, transformers, relays series of product development, production and sales. Our Products are mainly used in household appliances, 3C (computer, communications, consumer electronics), office equipment, medical, security, personal care, automotive electronics, industrial control and other fields. Headquartered of Gangyuan based in Yueqing City, Zhejiang Province, three manufacturing plants located in Yueqing, Zhejiang, Hubei Guangshui, Shenzhen, Guangdong. Has an independent research and development centers in Shenzhen. And Shenzhen,Hefei, Hong Kong, Singapore sales subsidiaries. in the domestic Beijing, Shanghai, Guangzhou, Huizhou and overseas South Korea, Brazil, with sales offices, more than 800 employees worldwide. The company was rated as "AAA" enterprise and "golden client" by Zhejiang Branch of China Construction Bank and Zhejiang Branch of Agricultural Bank of China respectively. We focus on scientific management, adhere to the continuous innovation for customers continue to create value, focus on industry products, technological innovation and efficient manufacturing, automation to achieve more than 85 percent of manufacturing coverage. Companies in the precision of small plastic hardware components have a breakthrough technological advantages, to adapt to electronic products "fast, precison" technology trends, the switch products in the application of the problem-solving capacity, the company "rapid response + full Quality "capacity of the comprehensive embodiment. We work closely with many industry benchmarking customers to understand customer needs as early as possible, with customers to quickly achieve product development and production shipments to meet the electronics industry needs to quickly update the iteration. Gangyuan Electronics has now passed the ISO9001 quality management system certification, ISO14001 environmental system certification and OHSA18001 occupational health and safety management system certification, TS16949 quality system certification. We are engaged in the production and business activities in the prevention and control of pollution, waste reduction, the provision of environmental protection (ROHS) standards of green products, and selected China and the world famous products, access to "China's electronics industry quality management, quality reliable products" Title, part of the security products with the United States UL, Germany TUV, Canada CSA, the European VDE, and other international certification.

  • 3 3

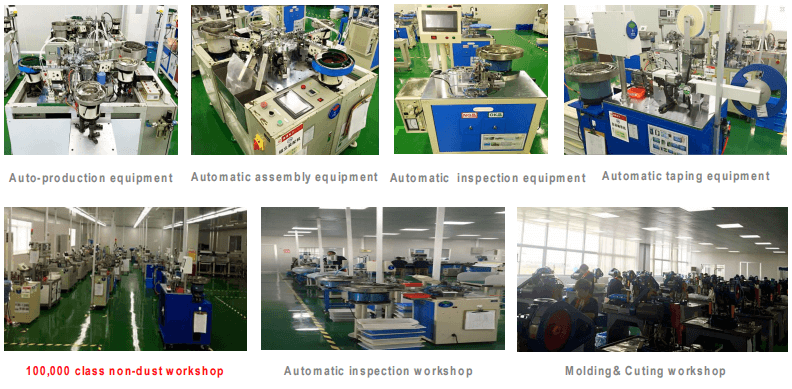

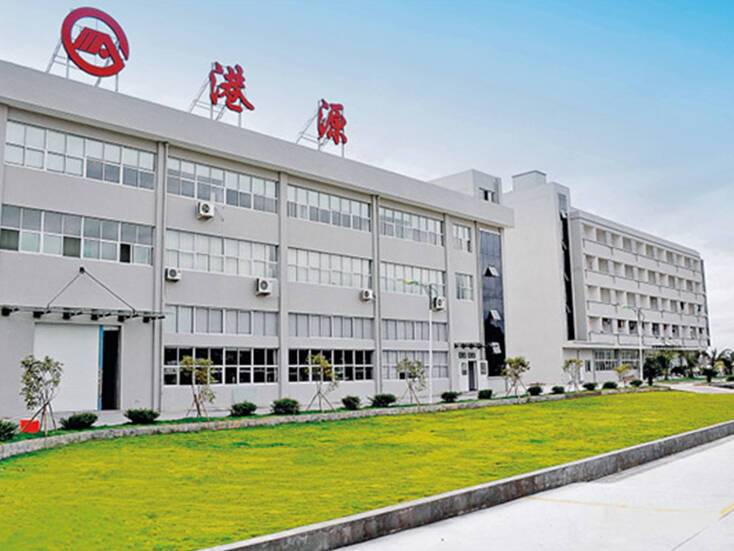

    Manufacturing plant

  • 800 800


  • 85 85

    Automation coverage


Quality management policy: quality first, continuous improvement; abide by the contract, customer satisfaction.

  • Technological Expert Technological Expert

    R&D center and excellent engineering team; Professional equipment and certified system audits;

  • Brand Quality Brand Quality

    100 thousand grade dust-free workshop; Independent QC system and production prcocess

  • Complete Product Variety Complete Product Variety

    More than 2000 switch categories and 3 plants with different process line; Continuous exploration and development on new products OEM/ODM and customerization

  • Considerate Sales Service Considerate Sales Service

    Top one sales team and after-work stuffs answer in 24 hours; More than 26 years producing and sales expreience; Multiple sales office distribution in Chinese mainland, Taiwan, HK, Singapore and South Korea, etc.

Cooperative Company #

Gangyuan get many brand support from different fields, such as consumer electronics ,Samsung, LG, Canon, Huawei etc. ; Household appliance like Midea, Panasonic, OEM industry HDK; Components supplier like OMRON, ALPS etc. We developed business in automobile industry in 2015, cooperated with SOUTH EAST, NISSAN etc.

  • Partners 03
  • Partners 02
  • Partners 01
United States
  • Partners 06
  • Partners 05
  • Partners 04
  • Partners 10
  • Partners 09
  • Partners 08
  • Partners 07
View More Partner Companies
latest news #
The rapid growth in market demand for tact switches The rapid growth in market demand for tact switches
The rapid growth in market demand for tact switches

The tact switch is a product with the fastest growth in market demand and the widest application in the past ten years.During the development of the four major products of color TV, video recorder, audio system, and VCD, the tact switch has also gained a larger share. develop. Tact switch classification       The types of tact switches are standard type, sealed type, SMD type, waterproof type, pendulum type, long type, vertical type, semi-circular array thin type, etc., with light type (red, yellow, green), and the appearance is square, Rectangular type, round type, flat type, convex type, vertical type, long-life type, the main installation forms are plug-in welding type, embedded pin type, surface mount, etc.The advantage of light touch switch is that it is suitable for high-density surfaces Mounting, some can be cleaned after soldering, sealed type can be waterproof and dustproof, very suitable for harsh environments, simple circuit design, product life ranging from 100,000 to 10 million times. Application of light touch switch       At present, light-tact switches with light are widely used in portable consumer digital electronic products, household appliances and office supplies, instrumentation and other fields, such as a set of color TV sets of 6 applications, and a set of combined audio applications about 20 sets. Nowadays, the scope of application is still expanding, and the main areas are medical electronic products, car audio, automatic control systems, testing and measuring equipment, automobile transportation and so on.       The tact switch market continues to be optimistic, and the competition is becoming more and more fierce. It is mainly manifested in the production specialization and automation. The output has become more and more concentrated in a few powerful and large-scale enterprises, plus DC power supplies. The price of sockets has been falling all the way, and the profit margin is getting smaller and smaller. The situation of one or two hundred companies producing more than a decade ago or more than 20 years ago has been changed. Production is basically concentrated in more than a dozen representative foreign-funded companies and mold technologies. In the hands of joint-stock and private enterprises with strength and advanced processing equipment. Tact switches have now become the most demanded switch category in China, and they are also one of the most exported and imported products.

Sep 24, 2021
New factory and office Building New factory and office Building
New factory and office Building

In last weekend, September 12, 2021 Gangyuan opens a brand new work place in Shenzhen, Guangdong Province. That's an important activity for all our stuffs and customers. We all took part in this great moment and celebrate for Gangyuan's another development.   In the new workshop, we will focus on R&D for new tact switch and automobile related switches for all our customers. In this new workshop, let's witness Gangyuan Electronics make top-level switches for everyone and provide better services.

Sep 13, 2021

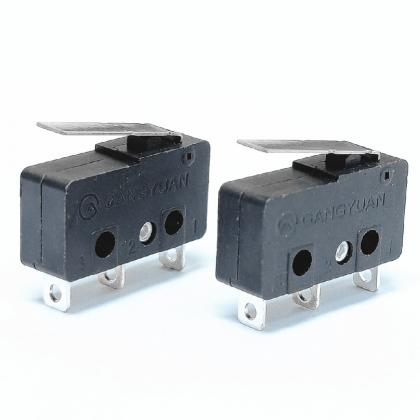

The MS15A Series micro switches are the perfect solution for your automotive needs. Beginning of 2021-a manufacturer with more than 25 years of experience Gangyuan has developed a new car micro switch, MS15A-A (applicable to Car Electronic handbrake ) The MS15A-A IP67 waterproof micro switch is a dual-circuit detection switch. Compared with the traditional switch, it adds a disconnected normally-on function detection circuit. It can be used in a functional feedback system to ensure the safety and stability of the entire system. Waterproof and dustproof can reach IP67 standard, except for terminals. Surface mount sliding contact micro switch product advantages have high reliability, electrical life of up to 100,000 times; and large stroke, the maximum switch stroke can reach 2.6mm; waterproof and dustproof can reach the IP67 standard; the switch instantaneous function switching is completed within 20ms. High reliability, so as to ensure the safety and stability of the customer system. The switches measure 15.4×7.4×7.5mm. Maximum rating is 50mA,18V DC  and contact resistance is 75mO maximum and 200mO maximum after lifetime. Operating load is 300,000 cycles (50mA 18V DC).

Sep 02, 2021
The tactile switch can also be self-locking The tactile switch can also be self-locking
The tactile switch can also be self-locking

Working principle of self-locking tact switch The self-locking tact switch is a kind of passive components and cannot be used alone. It can only be used with active components to form a set of control system, and its function can be brought into full play. The working principle of the normally open tact switch: press the switch button to turn on the switch when it is working, and the switch is off when the button is released, and its internal structure is realized by the force of the metal shrapnel. The principle of normally closed tact switch: Press the switch button to turn off the switch while working, and the switch is turned on when you release your hand. How does the self-locking tact switch work? (1) When the power is turned on, when C9 is charging, the base and emitter of transistor Q1 are connected to the positive electrode of the battery power supply, Q1 is turned off, and the base of transistor Q2 is turned on to ground and Q2 is also cut off, so the circuit is cut off. , VCC 0V. (2) When the touch switch is pressed, C9 discharges and C10 charges. Since the capacitor voltage of C9 does not change immediately, the base voltage of Q2 immediately becomes the capacitor voltage of C9. In other words, Q2 quickly saturates and ignites, while C9 discharges through R18. Set the collector voltage of Q2 to a saturation voltage of 0.3V. At this time, the voltage of the capacitor C9 is also 0.3V, and the voltage of the capacitor C10 is also 0.7V. The battery power is distributed in series through R16 and R17, where Q1 is saturated and turned on, so the circuit is turned on. When turned on, VCC is approximately the battery supply voltage. (3) When the touch switch is pressed again, C9 is 0.3V and C10 is 0.7V, so C9 is charged and C10 is discharged, so the node of Q2 is reverse biased and the battery is on time. It charges C9 to R18 and is based on Q1. The pole voltage increases, Q1 turns off, the circuit turns off, and VCC becomes 0V.

Dec 22, 2020
See the future of electronic switches through the High-tech Fair See the future of electronic switches through the High-tech Fair
See the future of electronic switches through the High-tech Fair

Recently,theHigh-tech Fairin Shenzhen has attracted the attention of many people. More than ten majors, covering all fields. This year's Hi-Tech Fair, all kinds of technology products are still full of black technology, which is dazzling. New technologies and new equipment represented by artificial intelligence, 5G, and big data have become the "stars" of the China Hi-Tech Fair. These high-tech products with wisdom and innovative elements all hint that human life can be more beautiful in the future. Many of these products are inseparable from the shadow of electronic switches. Especially in this aspect of smart life. Our company has a case where the touch switch KAN6247 has been successfully applied to Bluetooth headsets. The Bluetooth headset mobile audio that appeared at this high-tech fair will also be the direction to overcome in the future; in addition to the first time, you can also look forward to the vehicle-road collaborative communication Terminals, the shadow of electronic switches that will appear on portable mobile computing platforms. Not only that, the appearance of industrial robots and food delivery robots at the Canton Fair, etc., all have the appearance of electronic switches, which shows the great prospects of tact switches and micro switches. Our company is already a mature manufacturer and trader. , Has its own independent R&D center and factory, and laboratory personnel are always working hard in the process of design, R&D and improvement. Please look forward to the new transformation of the company.

Nov 13, 2020
