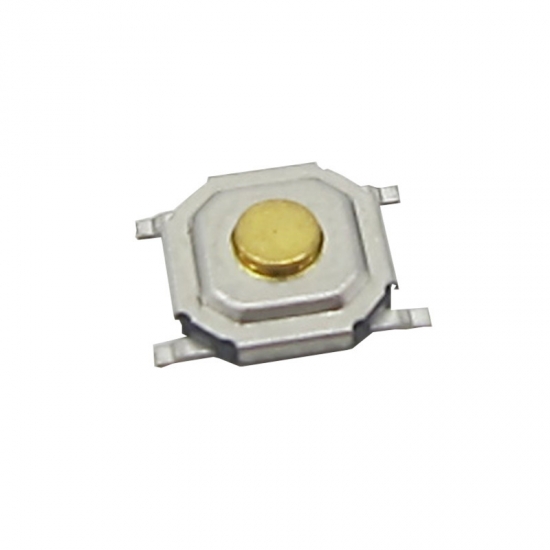

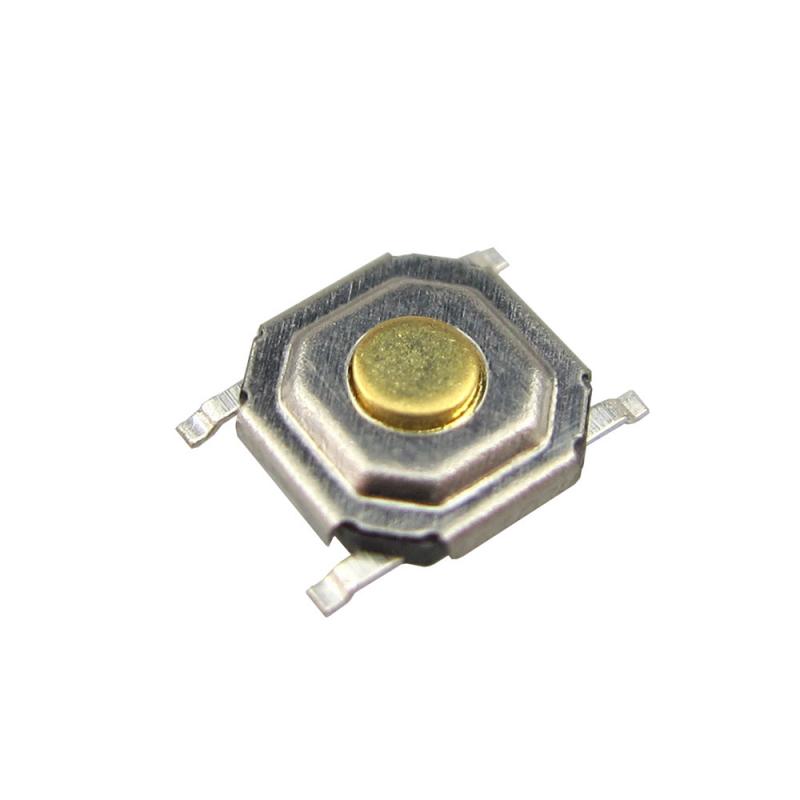

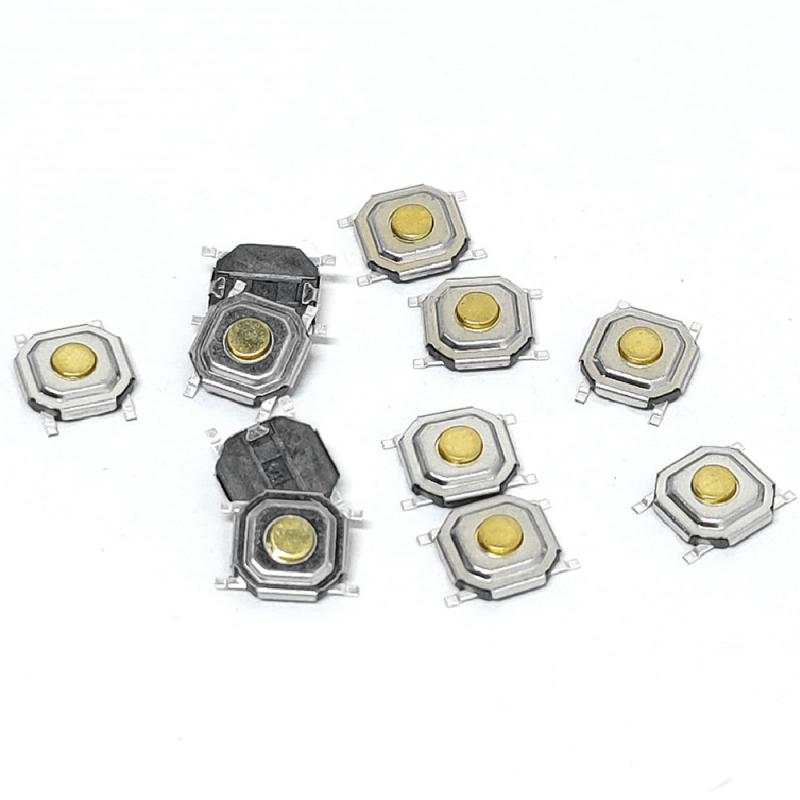

5x5mm waterproof ip68 micro push button switch smd tact switch for Ventilator machine
Brand:
GangyuanItem NO.:
KAN0542Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
silverShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for payment
5x5mm waterproof ip68 micro push button switch smd tact switch for Ventilator machine
Basic Information
| Operating Temperature | -20℃~70℃ |
| Rated current | 50mA 12V DC |
| Insulation resistance | 100MΩ min 100V DC |
| Dielectric strengh | 250V AC for 1 min |
| Contact resistance | 100m Ω max |
| Travel |
0.25±0.1mm |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
5*5 SMT SMD Mini Tact SwitchNext:
4pin SMD momentary tact switchesIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0542: smd type, 5.1*5.1*1.5mm, metal tact switch.
KAN0543: 5.1*5.1mm, SMD type, metal tactlie switch.
KAN0544: smt, smd type, FR52 tact switch.
KAN0545: 5*5mm, metal push, smd tact switch.
KAN0546: DC12v 50mA, 5*5mm, metal push button tact switch.
KAN0546: DC12v 50mA, 5*5mm, metal push button tact switch.
KAN0546: DC12v 50mA, 5*5mm, metal push button tact switch.
SMT tactile silicone rubber push button tactile switch
