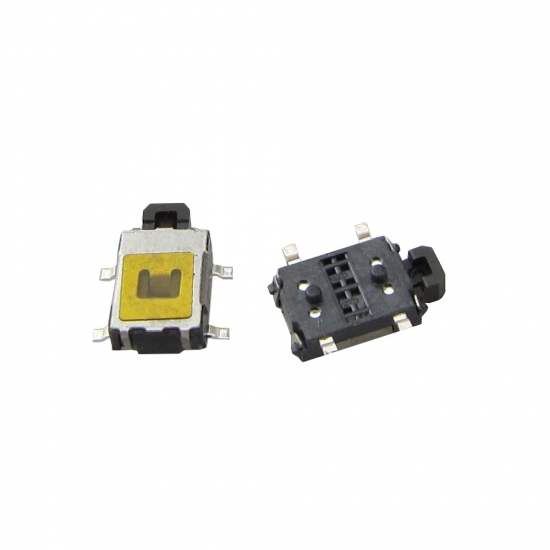

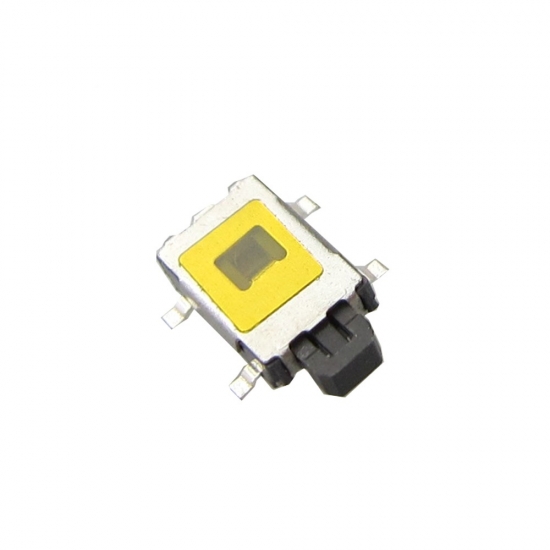

Electronic Push Button Smd Tact Switch

KAN0443: DC12v 50mA, 4 pins, smd type tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0443
  • Payment:

    T/T, Paypal full payment for produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen/ Ningbo
  • Min Order:

    1000
  • Lead Time:

    5-7 working days
Product Details

Electronic Push Button Smd Tact Switch


Basic Information

P/N
KAN0443
Dimension
6*4*1.8mm
Rating current
12VDC 50mA
Operating force
180/260 gf
Life cycles
50,000 cycles
Travel
0.25±0.1mm

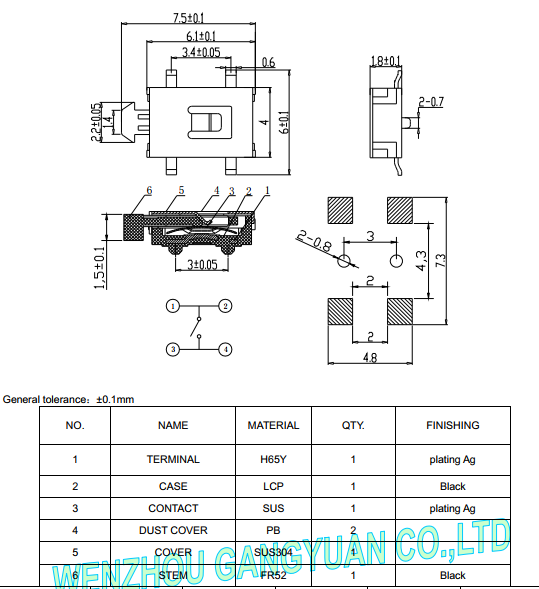

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
