wholesale push button surface mount tactile switch

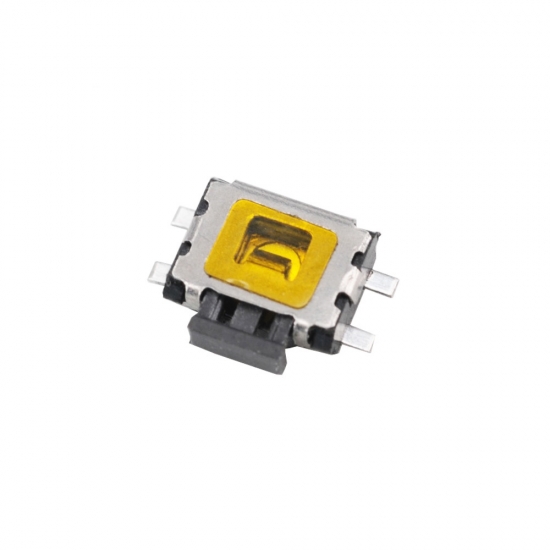

KAN04445: 4.8*4.8mm, height=0.5mm, mini smd tact switch.

Brand:
Gangyuan
Item NO.:
KAN0445
Order(MOQ):
1000
Payment:
T/T, Paypal before produce
Product Origin:
China
Color:
Sliver
Shipping Port:
Ningbo/ Shen zhen
Lead Time：
5-7 working days depend on quatity

Product Detail

wholesale push button surface mount tactile switch

Basic Information

P/N	KAN0445
Dimension	4.8x4.8mm
Rating current	12VDC 50mA
Operating force	100gf, 160gf, 260gf(at customers request)
Life cycles	100,000/200,000/300,000cycles
Travel	0.25±0.1mm

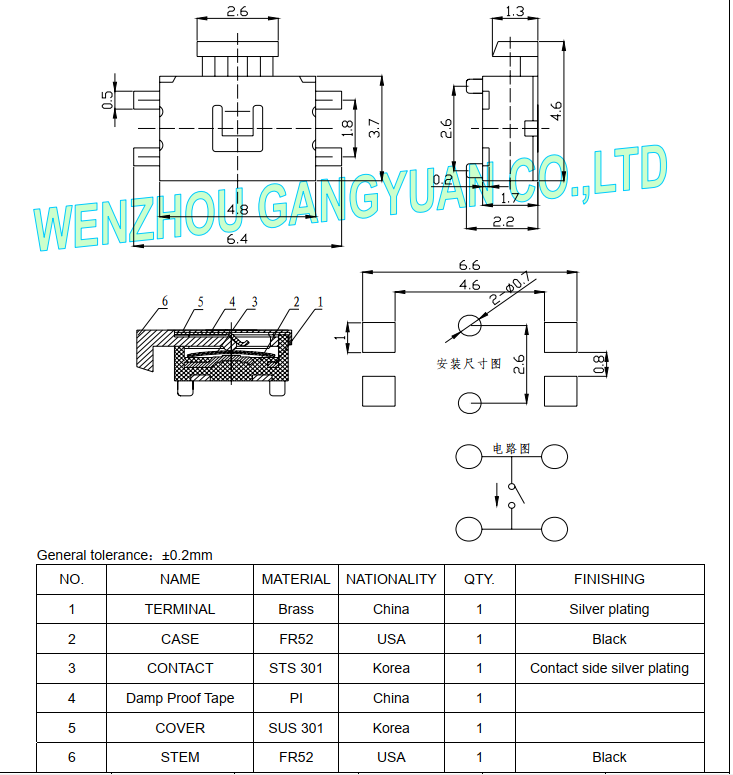

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches
2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature

Advantage
Gangyuan electronics offers a wide variety of tactile switches including 6*6mm SMD/DIP , ultra-thin, and low profile tactile switch options. GYE tactile switches are specially sealed to permit automated wave soldering and washing. Logic-level surface-mount and PC board mounting options. Lighted and non-illuminated models and with various heights and operating force are designed to meet virtually any application. Customizable 3D CAD models would be provide if require. UL certifications available. Certificate of RoHS2 Environmental Compliance is provided within each product series.

Application

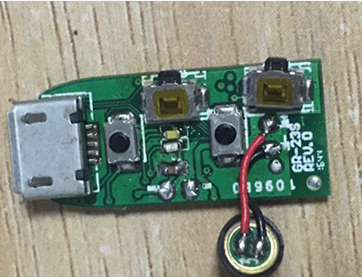

Tactile switch use for bluetooth, e.g:
