micro tact switch 12V

2P3T push button switch SMD micro tact switch 12V

  • Brand:

    Gangyuan
  • Item No.:

    KAN0444
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black and silver
  • Shipping Port:

    ningbo or shenzhen
  • Min Order:

    1
  • Lead Time:

    3 Working Days after payment
Product Details

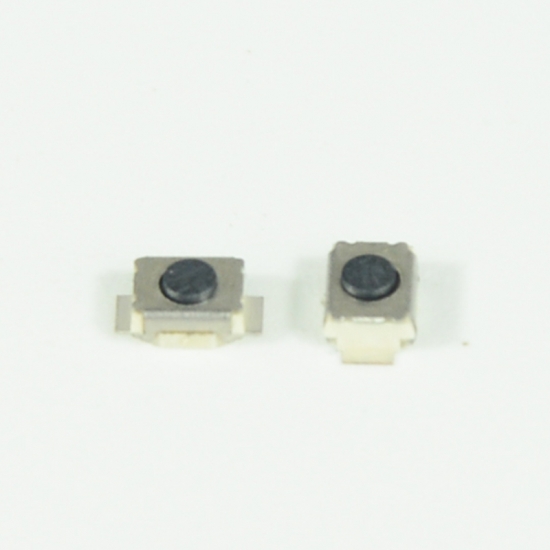

2P3T push button switch SMD micro tact switch 12V

cBasic Information

Life cycles 100,000cycles
Rating DC12V 50mA
Function 2P3T
Travel 0.5mm
Operating force 160±50gf
Contact resistance 100MΩ Max
Insulation resistance 100MΩ Min

Dimension

2P3T tact switch 12V.jpgminiature push button switch.jpg

switches tactile.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
