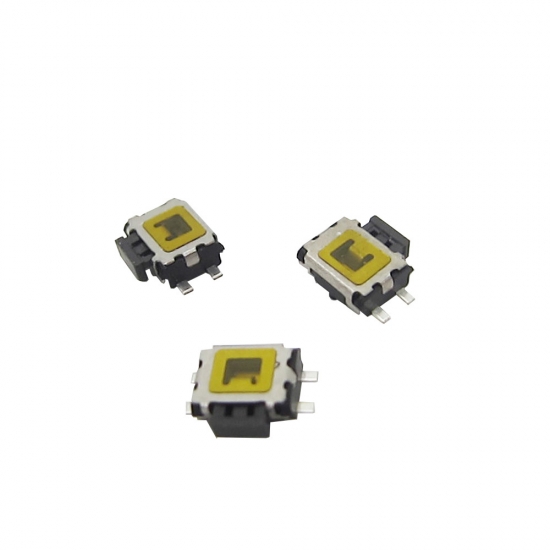

4 pin nc side push tact switch

Ultra thin smd smt 3x6mm 4 pin nc side push tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0445
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    yellow
  • Shipping Port:

    ningbo or shenzhen
  • Min Order:

    50 pcs
  • Lead Time:

    3 Working Days after payment
Product Details

Ultra thin smd smt 3x6mm 4 pin nc side push tact switch

Basic Information

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

200gf±50gf

Operation life

50,000 cycles



 Heat resistance



80±2℃, 96h

Sulfuration resistance

40±2℃, 72h

Free samples range

30~50pcs


Dimension

Ultra thin tact switch.jpgcontact switches.jpg


Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
