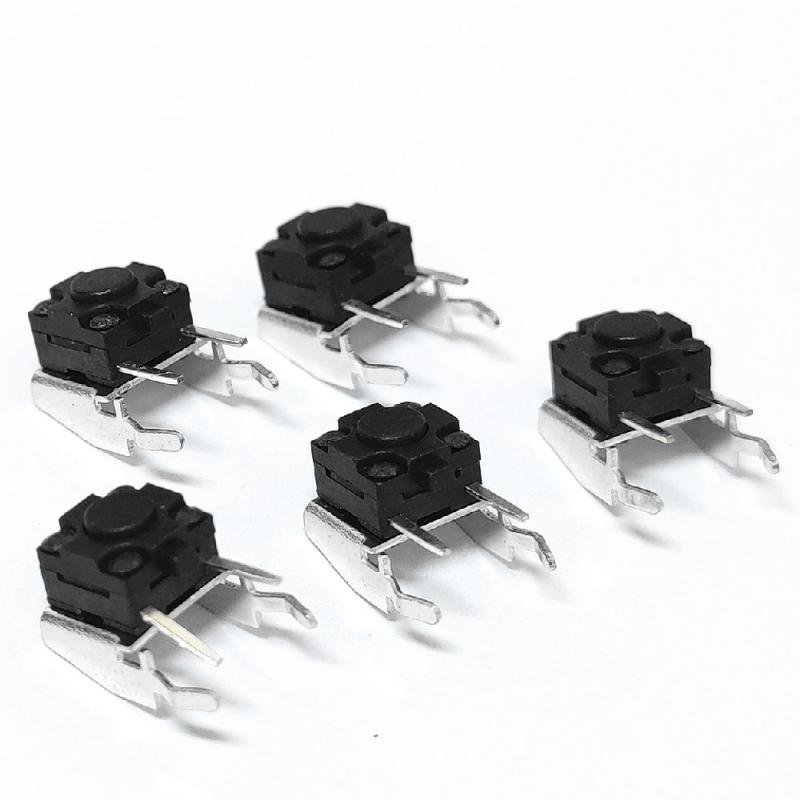

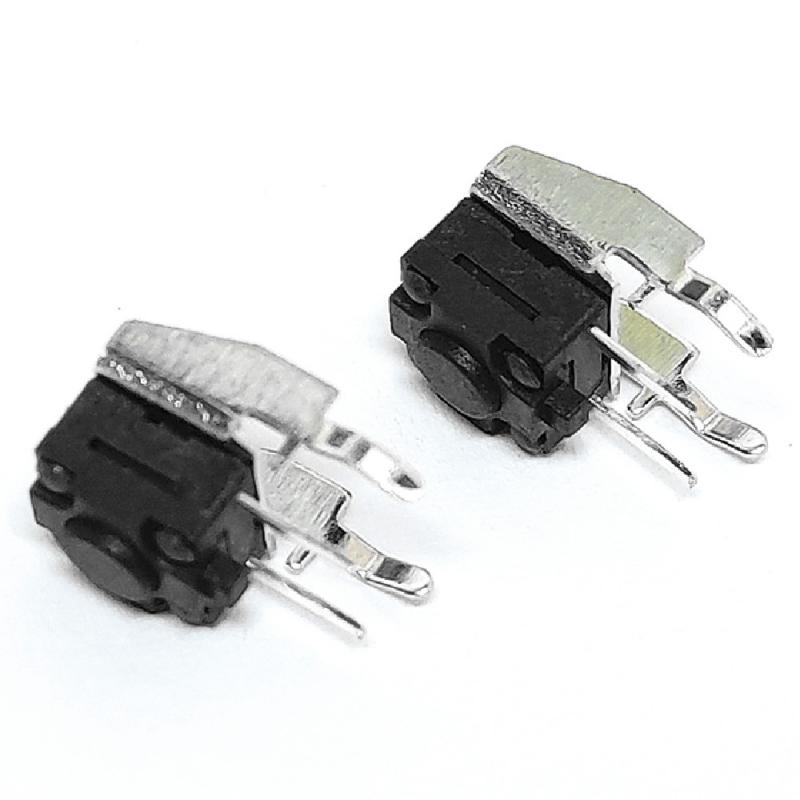

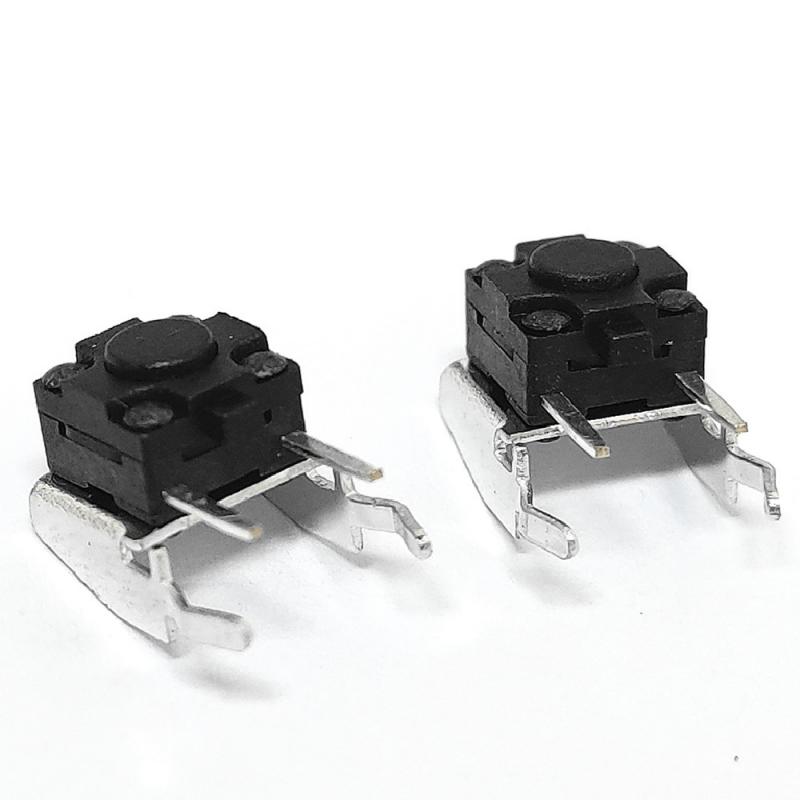

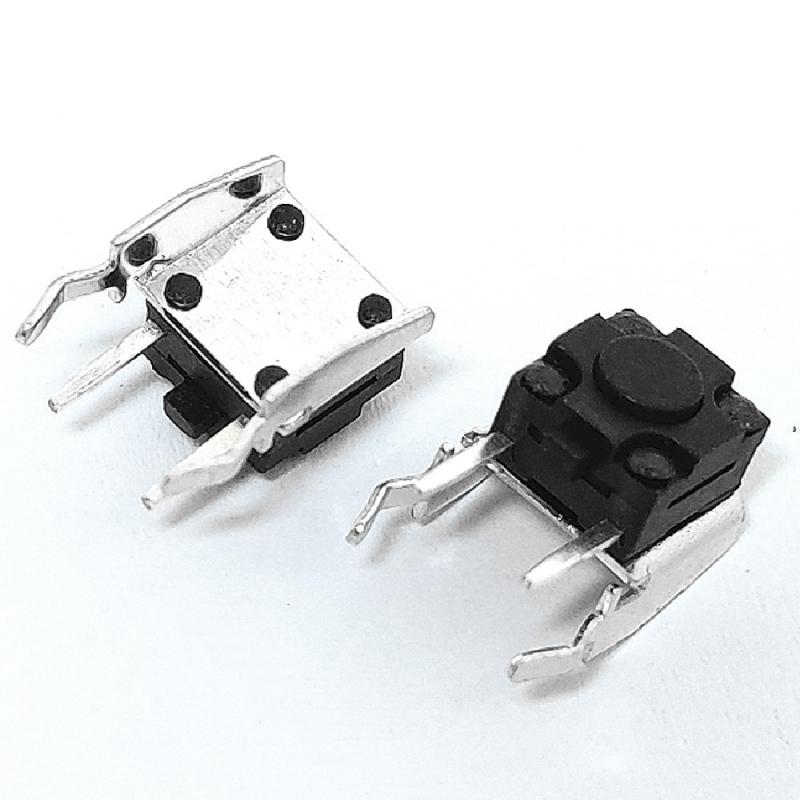

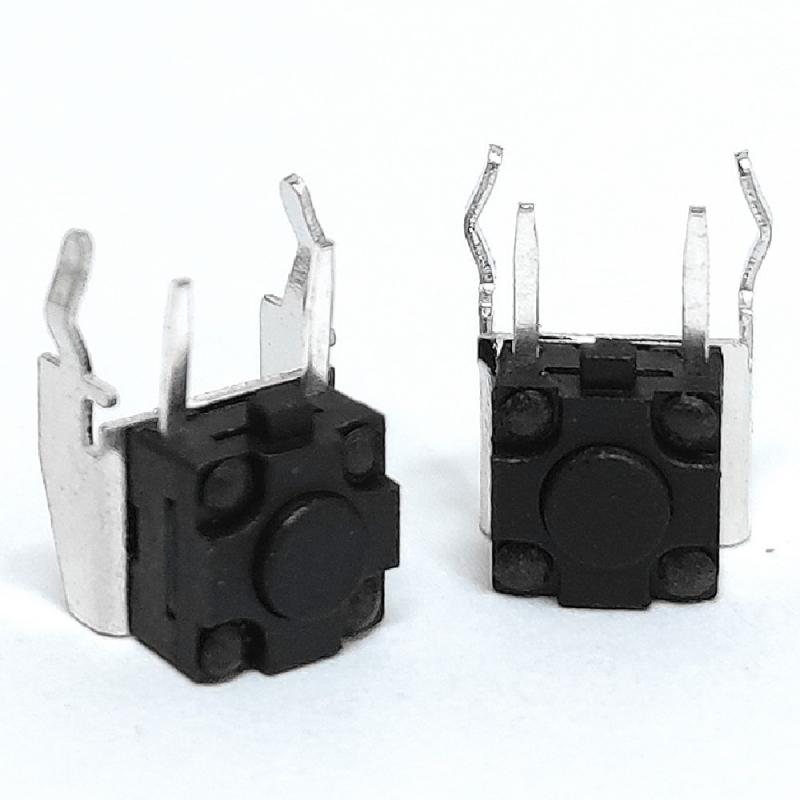

Waterproof bracket tact switch

This product is divided into copper brackets and iron brackets for customers to choose. The salt spray test time of copper brackets is longer than that of iron brackets.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0631W-0431C010
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Silver and black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Side actuated IP67 soft feeling with bracket tact switch

china waterproof tact switch manufacturer


Parameter


Dip 6×6 tact switch


1. Rating: DC12V 50mA
2. Contact resistance: 100MΩ Max
3. Insulation resistance: 100MΩ Min at DC 100V
4. Operating force: 250±50gf
5. Life: 100000 cycles
6. Stroke: 0.2±0.1MM
7. Dielectric Strength: AC 250V for 1 Minute

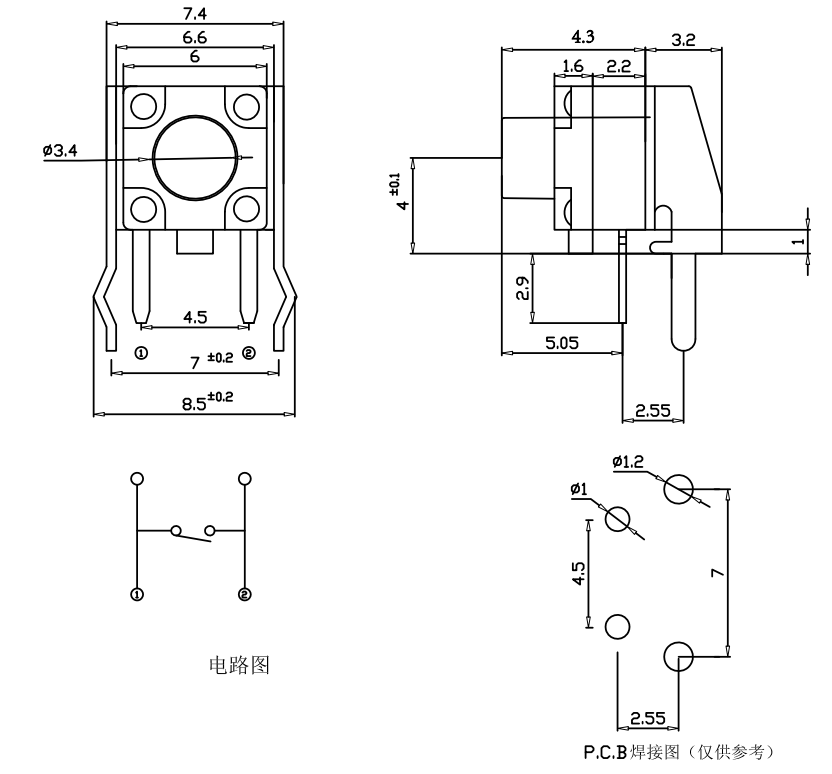

Drawing



Application of waterproof tact switch


1. Digital products: digital cameras, digital video cameras, etc.;
2. Communication products: mobile phones, car phones, telephones, PDAs, etc.;
3. Computer products: cameras, voice recorders, etc.;
4. Remote control: remote control for vehicles, rolling doors, and home anti-theft products;
5. Audio and video products: MP3, MP4, DVD. Audio;
6. Security products: video walkie-talkies, monitors, etc.;
7. Fitness equipment: treadmill, massage chair, etc.;
8. Toys: electronic toys, etc.;
9. Household appliances: TVs, microwave ovens, rice cookers, electric fans, electronic body scales, electronic fat scales, electronic kitchen scales, etc.;
10. Others: money detector pen, laser pen, etc.;
11. Medical equipment: sphygmomanometer, thermometer, hospital call system, etc.


What is bracket tact switch


The tact switch with bracket is to add a hardware bracket outside the tact switch, its function is to better fix the product and make it more stable. The appearance is basically wrapped by hardware, so its salt spray performance is very important.
