Home Switch Tactile switch 06 Series tact switch 6*6 IP67 Momentary Waterproof 50mA 120VDC SMD Tact Switch

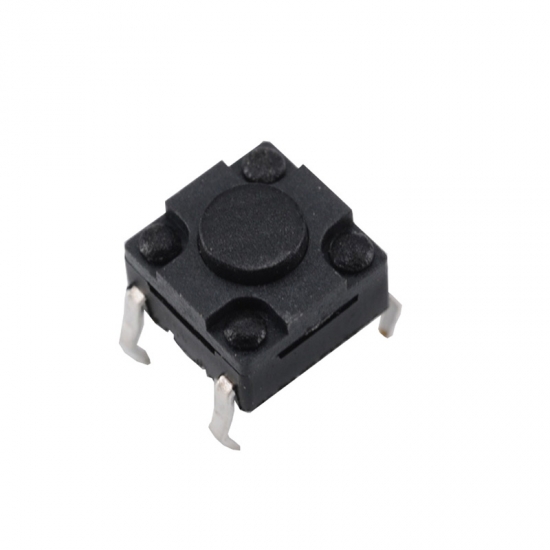

6*6 IP67 Momentary Waterproof 50mA 120VDC SMD Tact Switch

KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0616
  • Order(MOQ):

    1000
  • Payment:

    T/T D/P L/C etc
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo, Shenzhen
  • Lead Time:

    7-10 working days depends on actual orde
  • Product Detail

6*6 IP67 Momentary Waterproof 50mA 120VDC SMD Tact Switch


Product Description

  • Positive tactile feeling
  • 3.4mm or 5.0mm heights for choose
  • Long life cycles
  • Sealed tact switch for SMT
  • Soft actuator

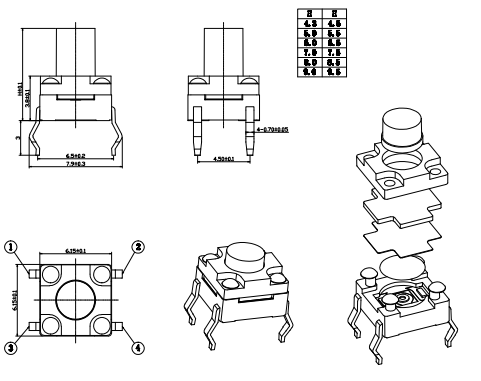

Dimension



Tact Switch Using Attention


1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.

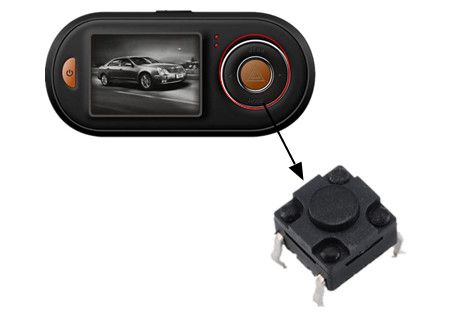

Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
