Home Switch Tactile switch 06 Series tact switch KAN0656 Waterproof DC12V 50mA With 2 Pin Tact Switch

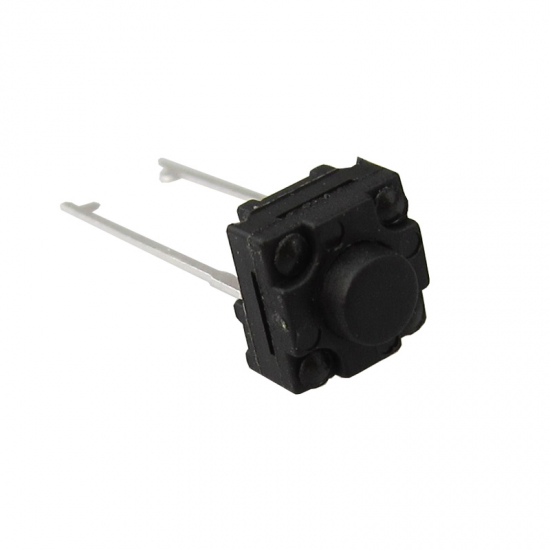

KAN0656 Waterproof DC12V 50mA With 2 Pin Tact Switch

KAN0656: DC 12v 50mA, smd, water resistance type tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0656
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, D/P etc.
  • Product Origin:

    Zhenjiang China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Lead Time:

    3-7working days
  • Product Detail

High Quality KAN0656 Waterproof DC 12V 50mA With 2 Pin Tact Switch


Product Details

Press force
1.6±0.5N
Return force
0.4min
Contact Resistance
≤100mΩ
Insulation Resistance
≥100MΩ
Full Travel
0.3±0.1mm
Resistance to low temp
-40±2℃     96h
Heat resistance
 85±2℃      96h
Moisture resistance
60±2℃       96h
Waterproof grade IP67

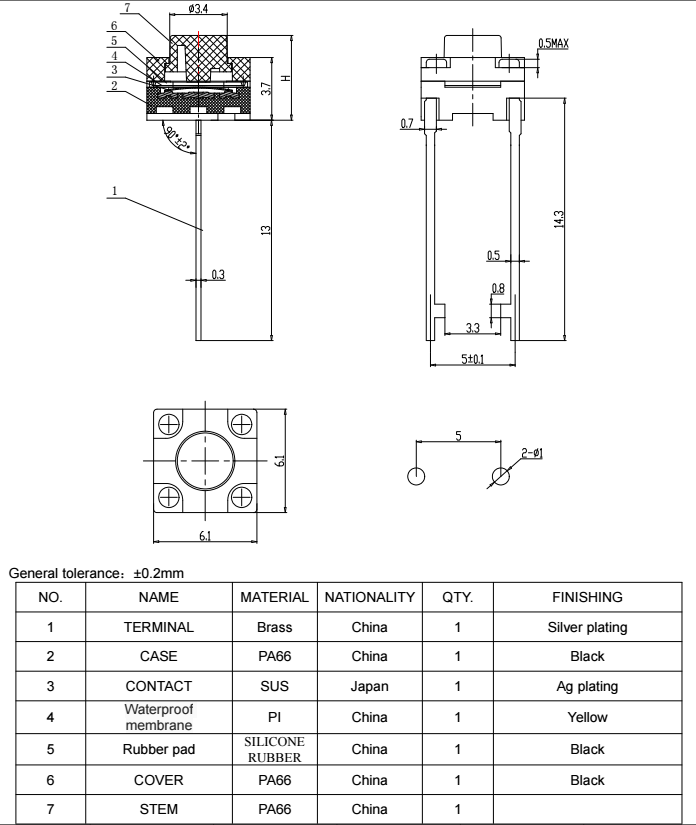

Product Specification



Application

Tactile switch use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
