Home Switch Tactile switch 06 Series tact switch 12V Momentary Tactile Switch With Plastic Cover

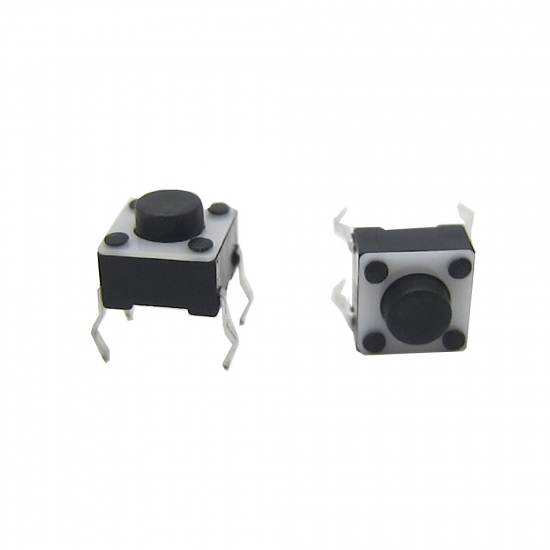

12V Momentary Tactile Switch With Plastic Cover

KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0611
  • Order(MOQ):

    1000
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo.Shenzhen
  • Lead Time:

    7-10 working days depends on actual orde
  • Product Detail

12V Momentary Tactile Switch With Plastic Cover Mini Tact Switch


Basic Information

P/N KAN0611
Rating DC 12v 50mA
Size  6*6mm
Height 4.3-18mm
Operating force 100gf/ 160gf/ 260gf±50gf
Life 60,000/ 80,000/100,000 cycles
Travel 0.25±0.1mm

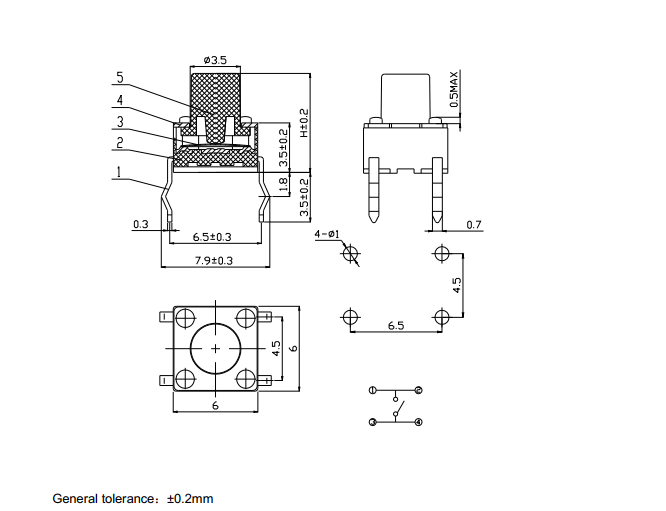

Dimension





Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.

2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.




Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

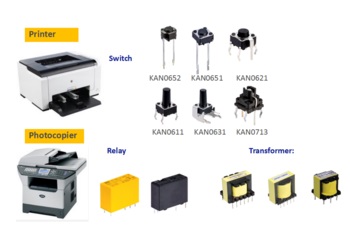

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance.
