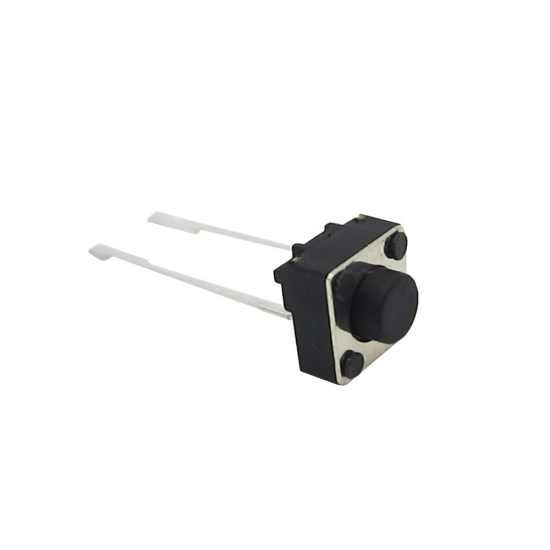

6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch

6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0651
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000
  • Lead Time:

    3-5 Working Days after payment
Product Details

6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch


Feature

Product Name: 2 pin push button smd tact switch

Product model: KAN0651

Product specifications: 6x5.3mm

Product strength: 160gf/260gf

Product life: 100,000 times



Basic parameters

Working temperature: -20 ° Cto + 70 ° C

Rated current: 50mA.12V DC

Insulation resistance: 100MΩ min.100V DC

Dielectric strength: 250V AC for 1 min

Contact resistance: 100m Ω max.

Switching Travel: 0.25±0.1mm

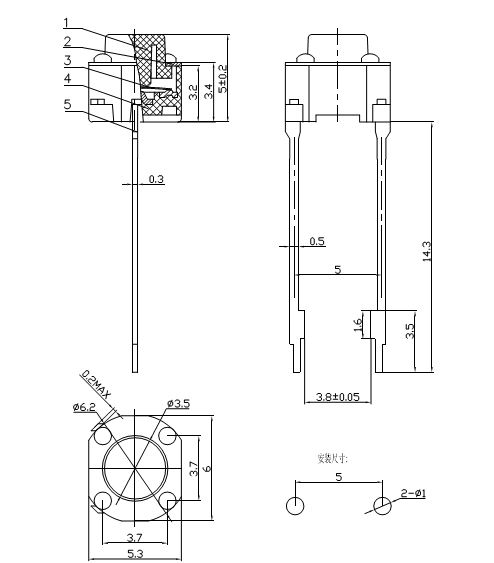

Dimension

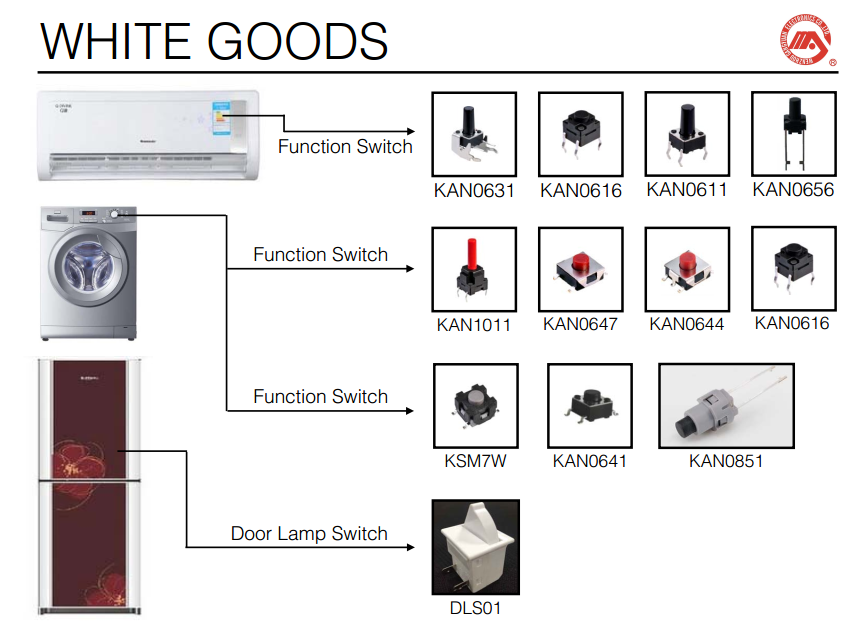

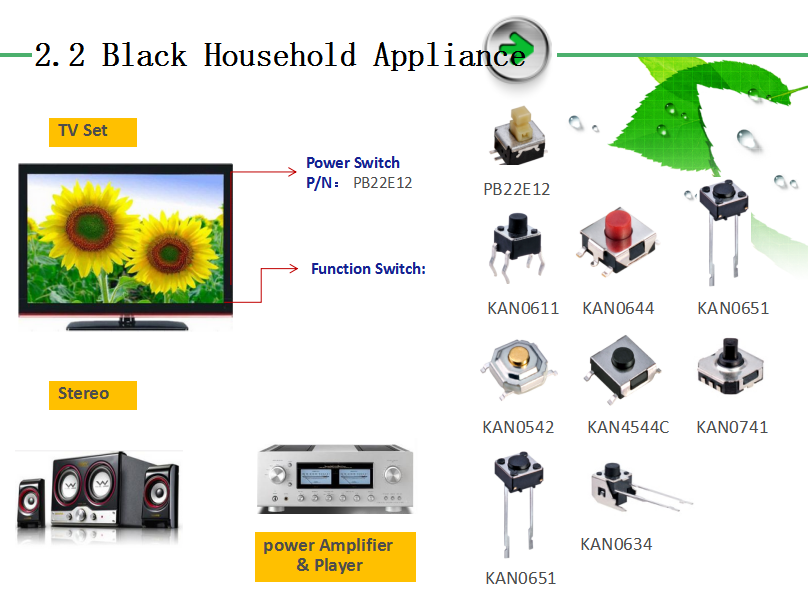

Application

6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch,use for automotive electronic industry, household appliance, office equipment, security equipment, 3C intelligent products, EMS board factory, Medical equipment etc, named Router, Audio and Video products, smart meter, remote control, communication products, household electric appliances, security products, toys, humidifiers and other personal care products.
