Home Switch Tactile switch 06 Series tact switch Dual bracket type tact switch

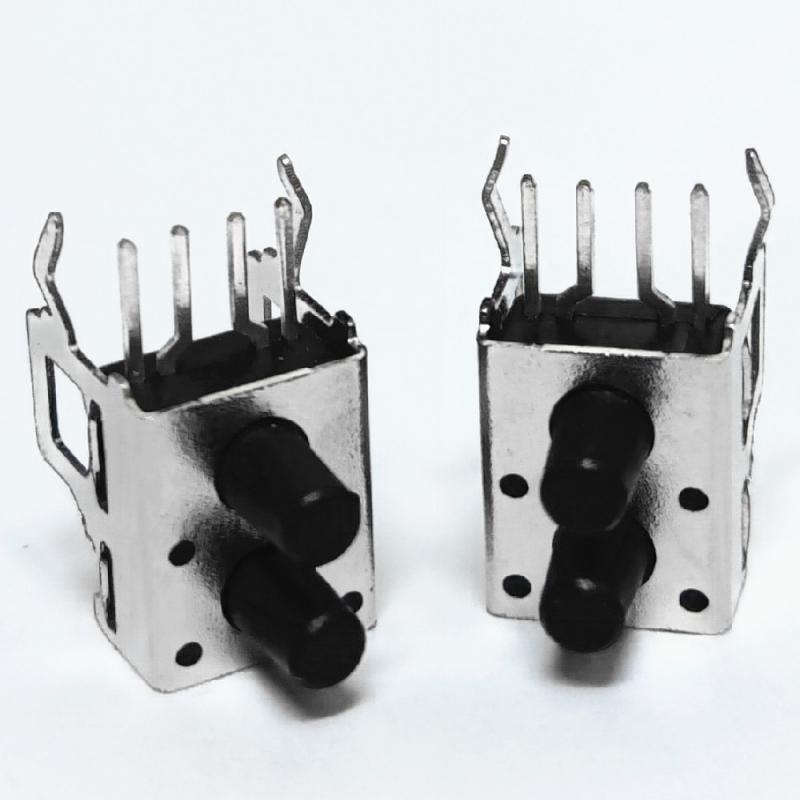

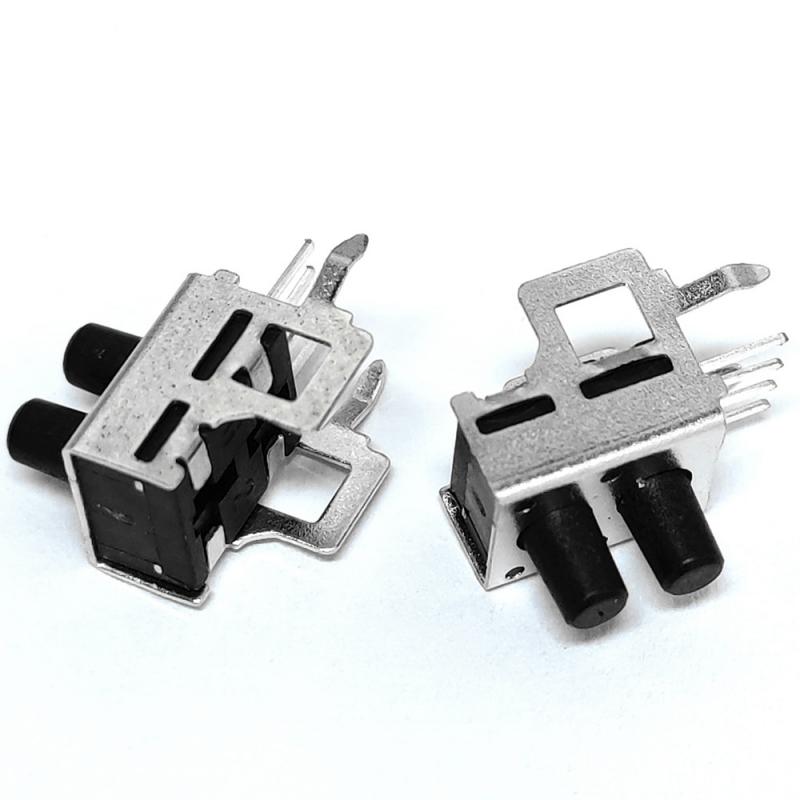

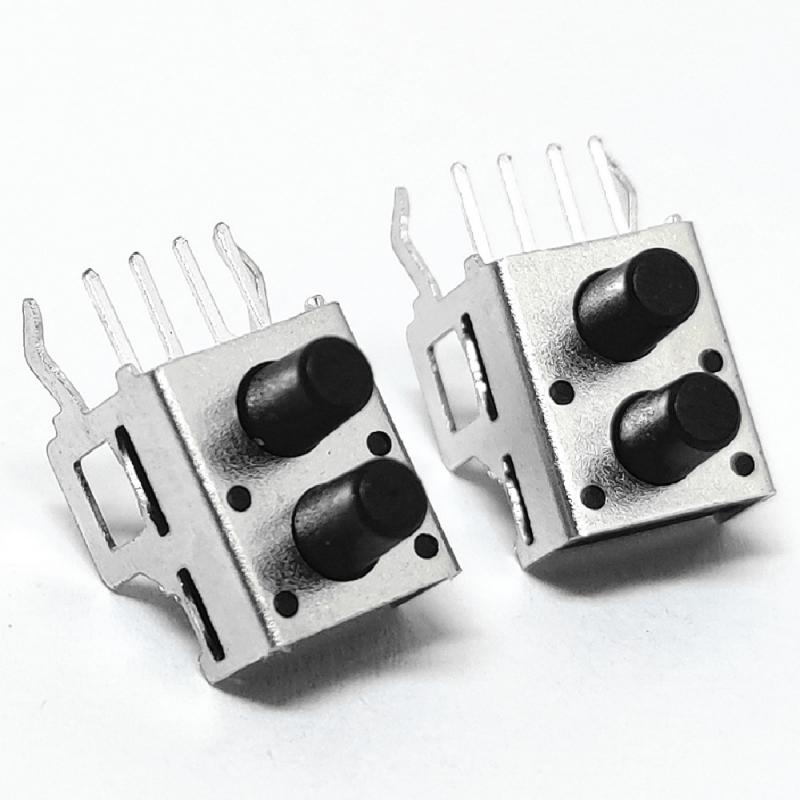

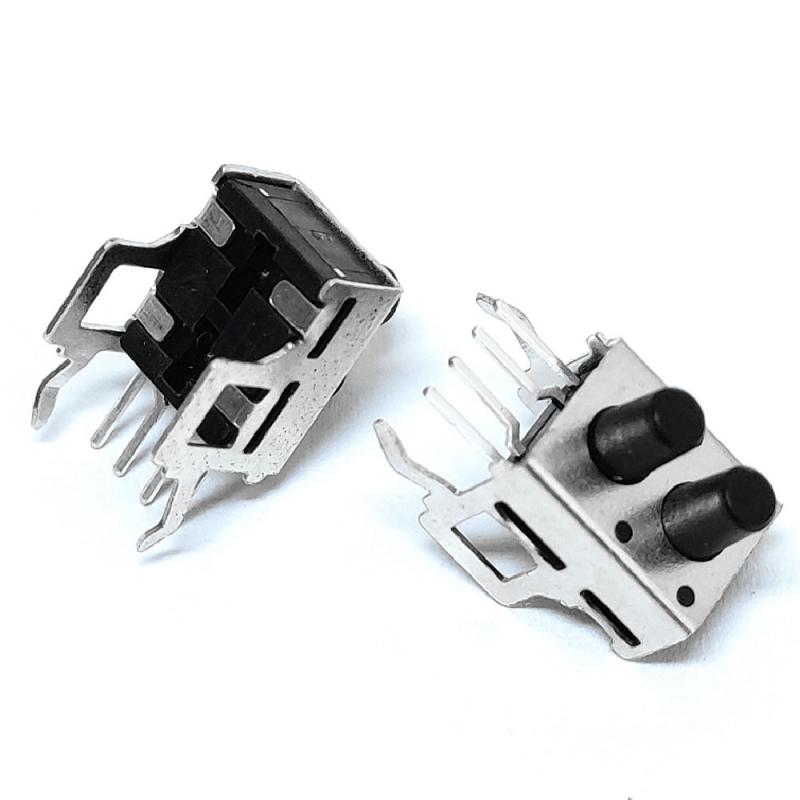

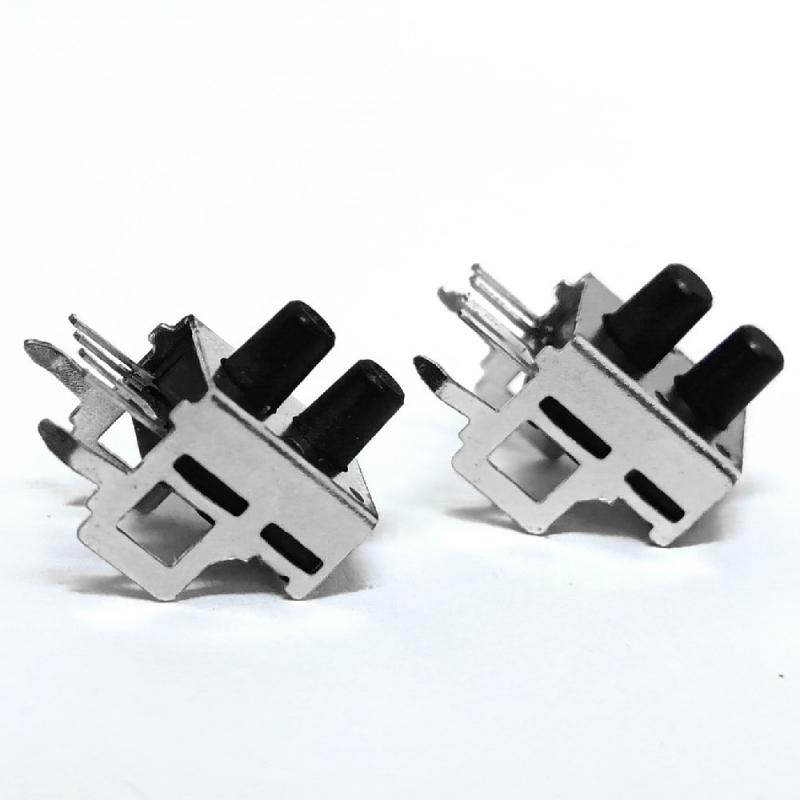

Dual bracket type tact switch

Compared with the traditional tact switch, the double-type switch with bracket has been upgraded with a focus on the applicable surface of the product. The double-type tact switch with bracket is deeply optimized for the internal structure, which realizes the function of combining two tact switches on one product, and the circuits are grouped without interfering with each other.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN6731-0831B-0831B
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Silver and black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Double type tact switch with bracket stable tactile switch

tact switch side push wholesale price


Parameter


tact switch right angle


Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Bounce: 10ms max

Operating Force: 160±50 gf

Full Travel: 0.2±0.1mm

Return Force: 20gf Min

Stem Strength: 20N min

Operation life: 80,000cycles


Drawing



Height choices


The following A/B heights can be combined arbitrarily, for example: A-0.8, B-1.8; A-1.8, B-0.8 and other combinations.

A/B H
0.8 5.3
1.8 6.3
3.8 8.3
6.3 10.8

Advantages


1. Excellent contacts, good conductivity
2. Ingenious craftsmanship, batch supply
3. Reliable quality, widely used
4. Easy to operate and good practicability
5. The hand feels smooth, strong and resistant to pressure
