Home Switch Tactile switch 06 Series tact switch 12V IP67 waterproof switch push button tact switch china

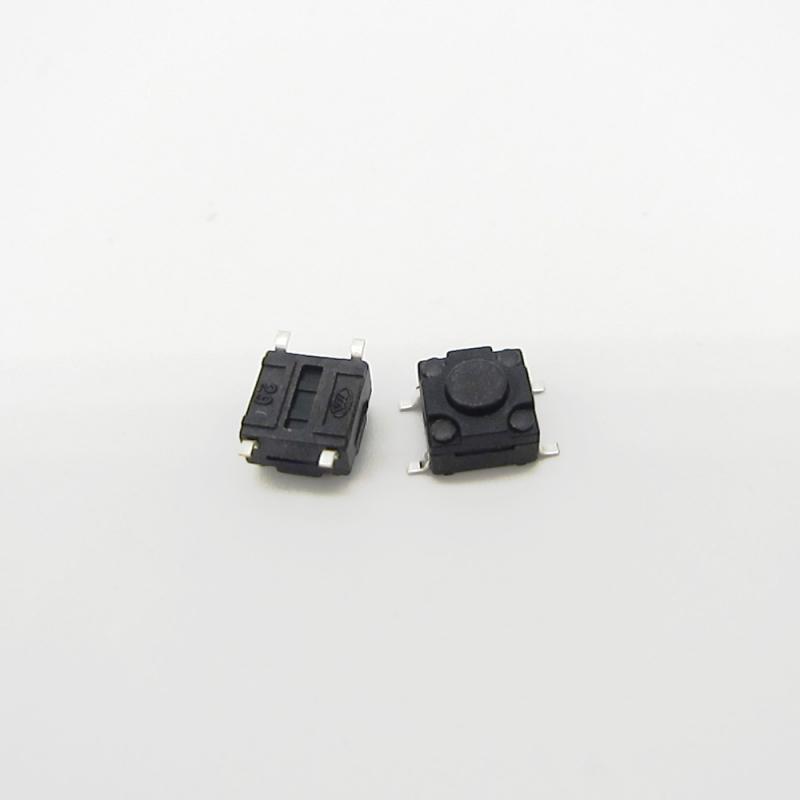

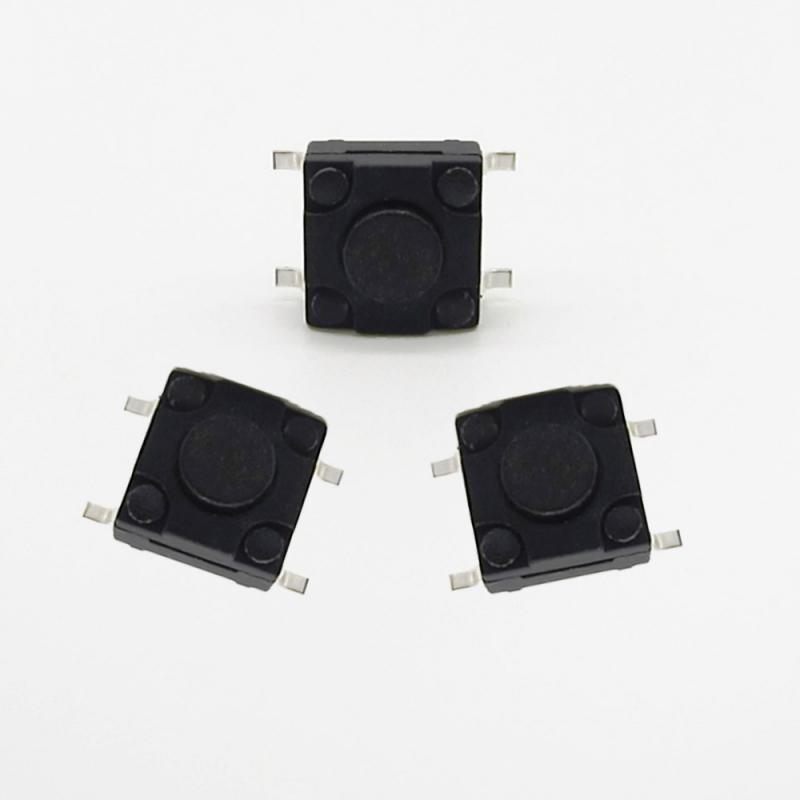

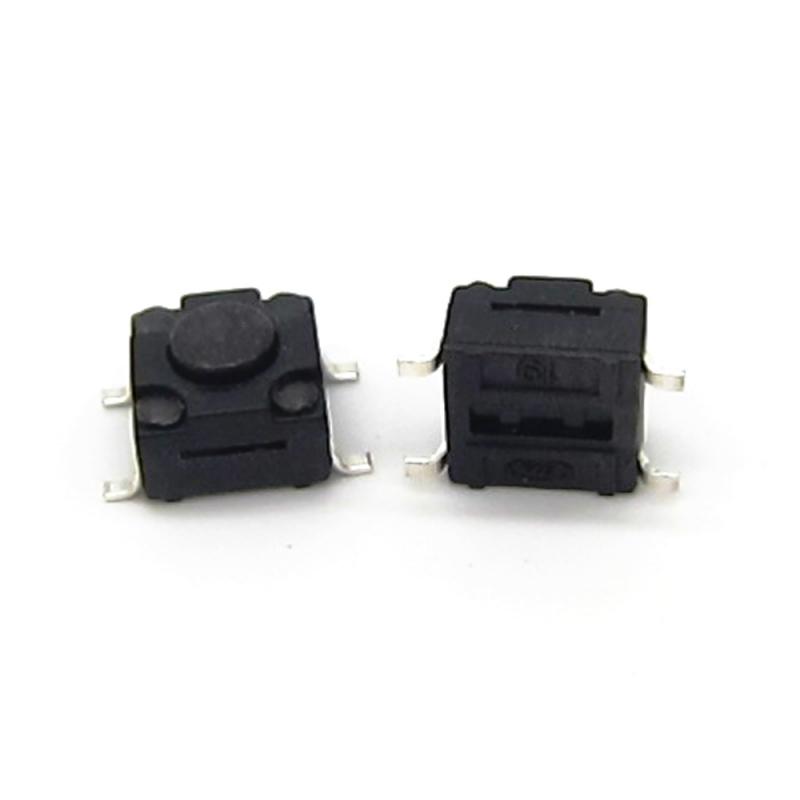

12V IP67 waterproof switch push button tact switch china

12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0642
  • Order(MOQ):

    1000
  • Payment:

    T/T before shipment
  • Product Origin:

    China
  • Color:

    black button color depend on requirements
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    3 Working Days after payment
  • Product Detail

12V IP67 waterproof switch push button tact switch china


Basic Information

Product name KAN0642
Travel  0.25±0.1mm
Operating force 1.0N/1.6N/2.6N±0.5N
Dimension 6x6xH
Return force 0.2N/0.4N/0.6N min
low resistance -30±2℃,96h
Heat resistance 80±2℃,96h
Salt Mist Test 8h±1h,35℃±2℃
Sulfuration Resistance Test 72h,40±2℃
Operating life 100,000/200,000 cycles
Waterproof grade IP67

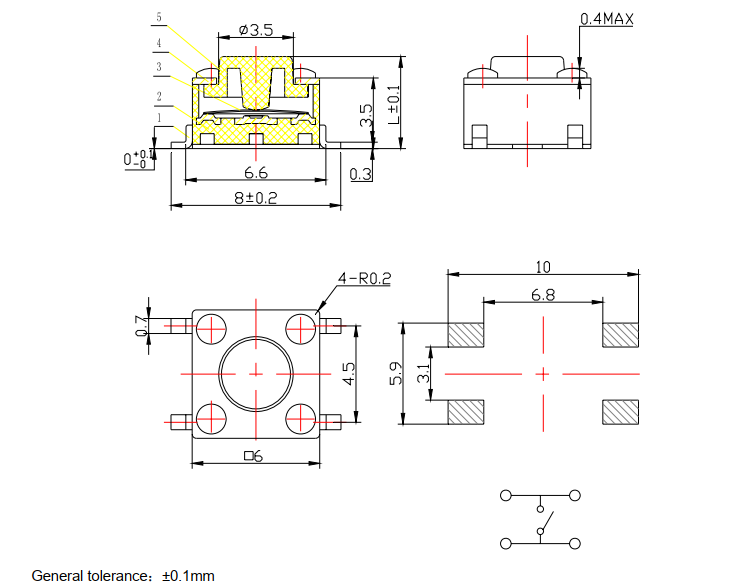

Outline Drawing





Tact Switch Using Attention

1.Please consult us when considering to wash tact switches
2.Please don’t immerse soldering flux into tact switches
3.Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.






Application

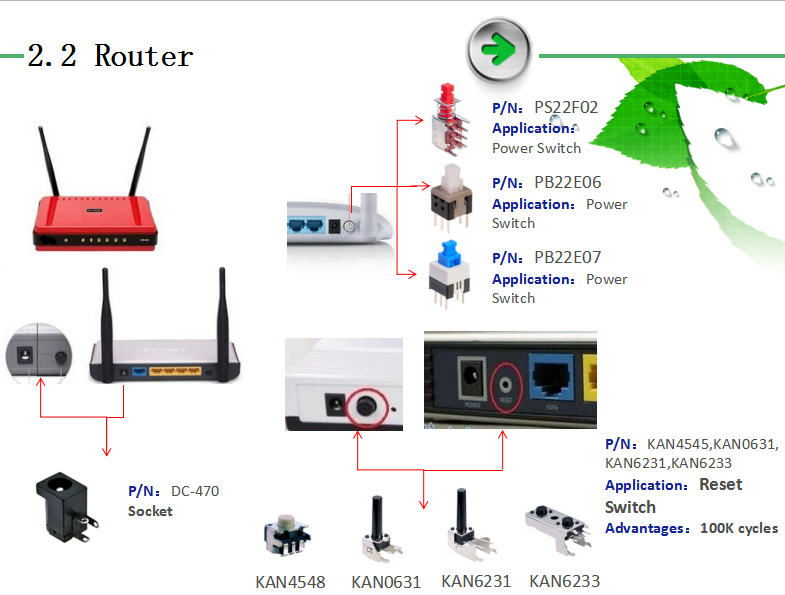

use for Audio and video products, Router, set-top boxes, communications products, white home appliances, black home appliances, small household appliances, security products: toys, office equipment, etc.
