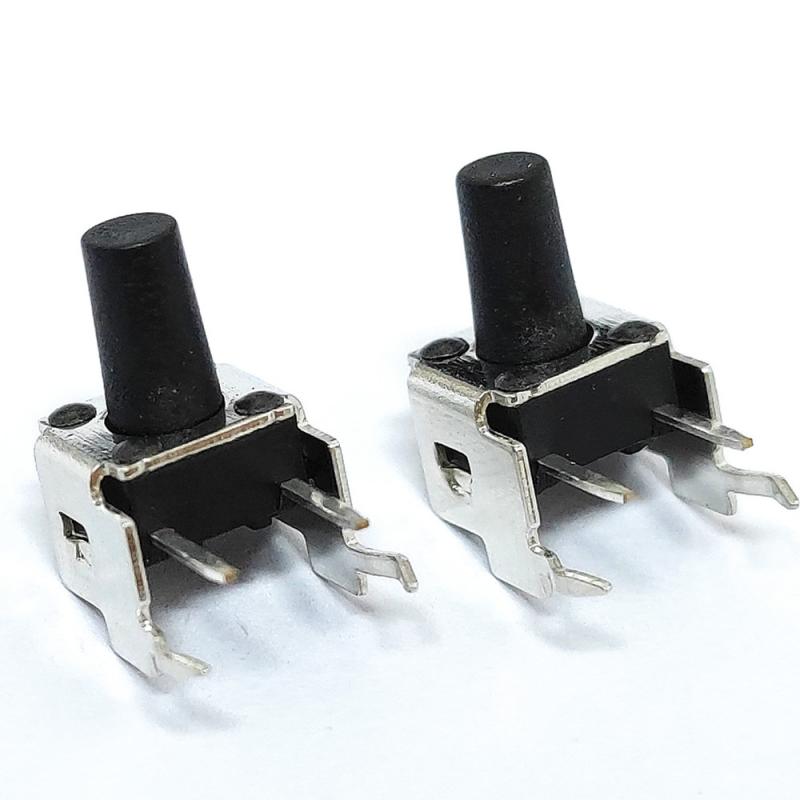

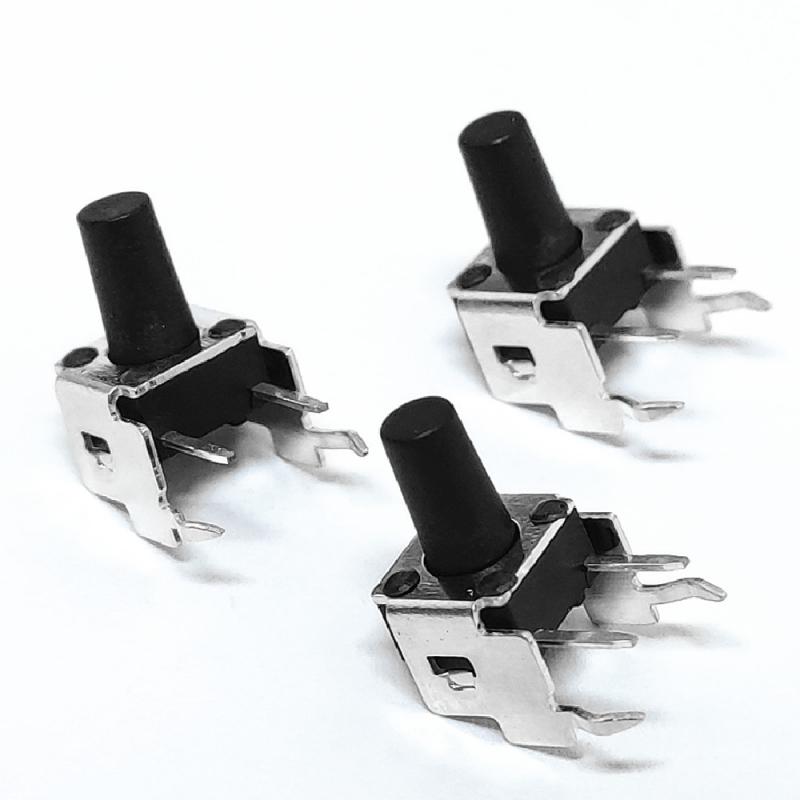

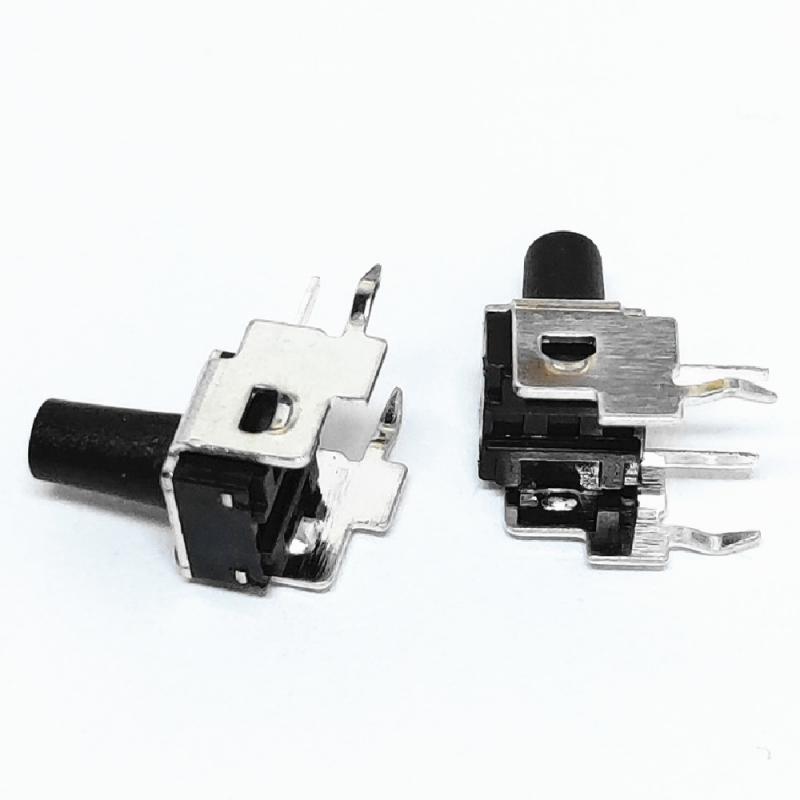

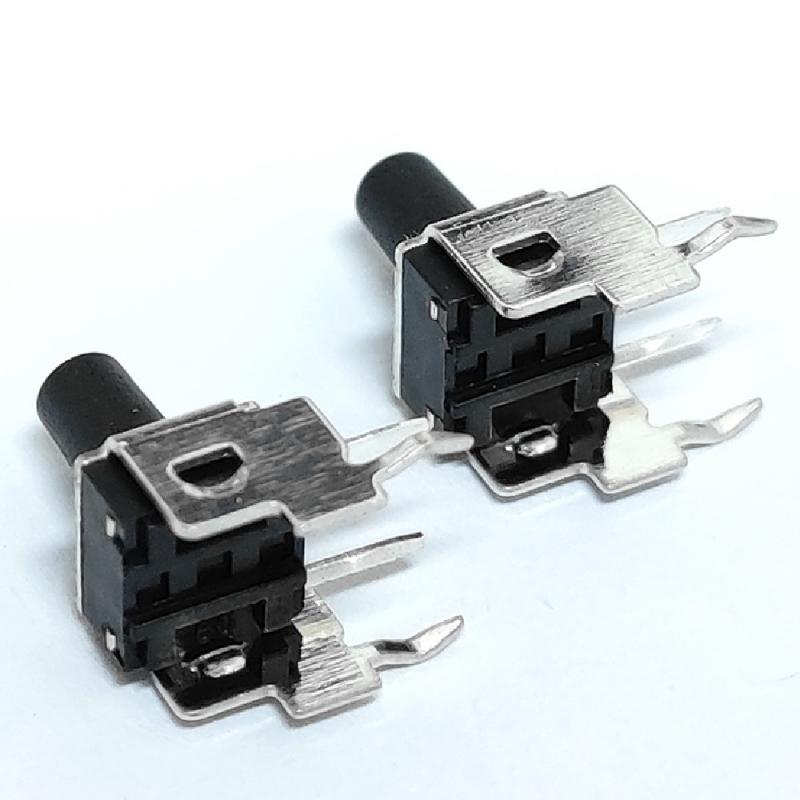

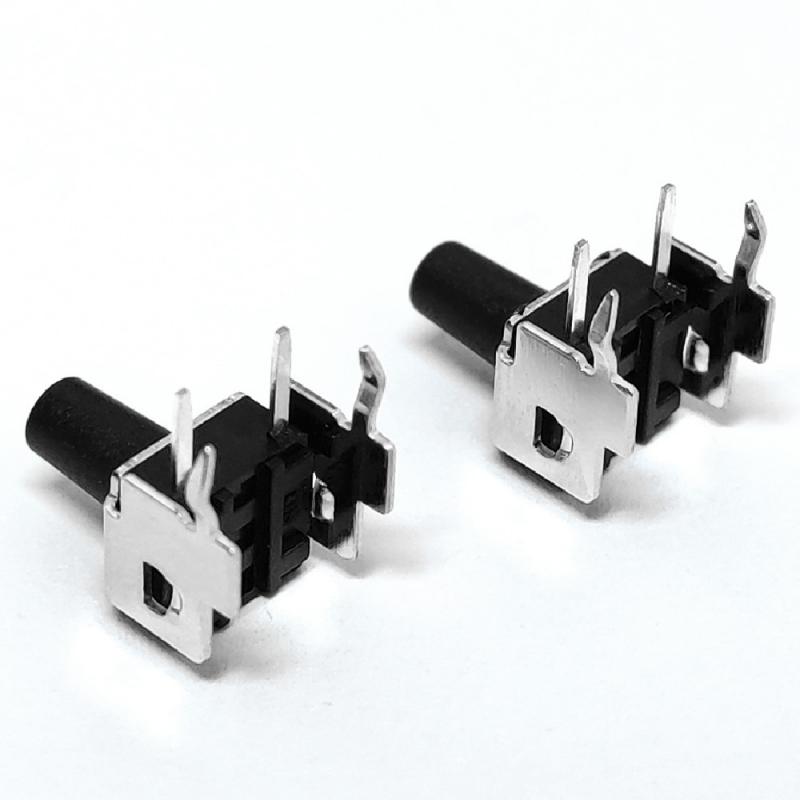

Bracket push type tact switch manufacturers

Applications: mobile phones, headphones, tablets, medical equipment, Bluetooth audio, Bluetooth headsets, remote controls, smart watches, smart homes, digital products and other electronic products.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0638-0951B
  • Order(MOQ):

    3000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Silver and black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

Dip mount type push button momentary tact switch

12V 50mA wholesale long life tact switch


Parameter


china tact switch factory


Contact Resistance: 100MΩ Max

Insulation Resistance: 100MΩ Min.at DC.100V

Dielectric Strength: AC 250V for 1 Minute

Operating Force: 160±50gf

Stroke: 0.25±0.1mm

Life: 100000 Cycles

Operating Temperature Range: -30℃~+80℃

Storage Temperature Range: -40℃~+90℃

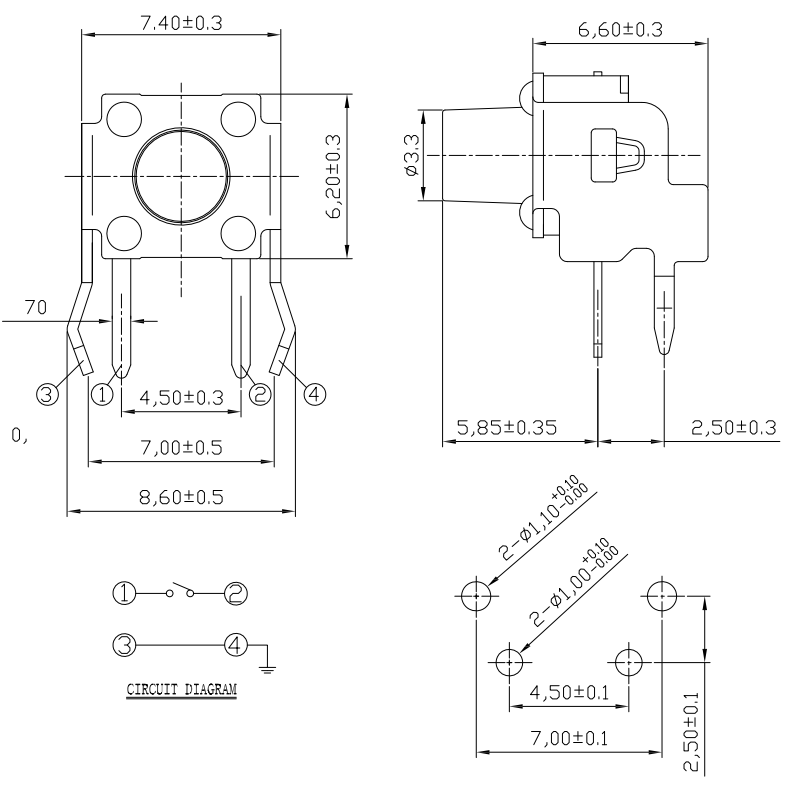

Drawing

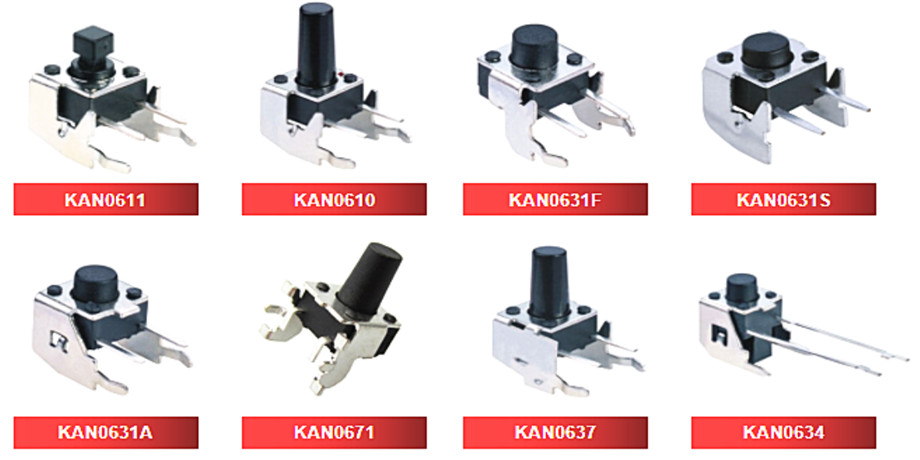

Appearance Style


Round hole bracket, upper bracket, lower bracket, bracket with column, waterproof bracket, dust-proof bracket, double bracket, two-in-one bracket, single bracket.


Advantage


1. Design flexibility
2. Rich operational reality
3. Excellent environmental resistance and long life
