tactile keyboard switch

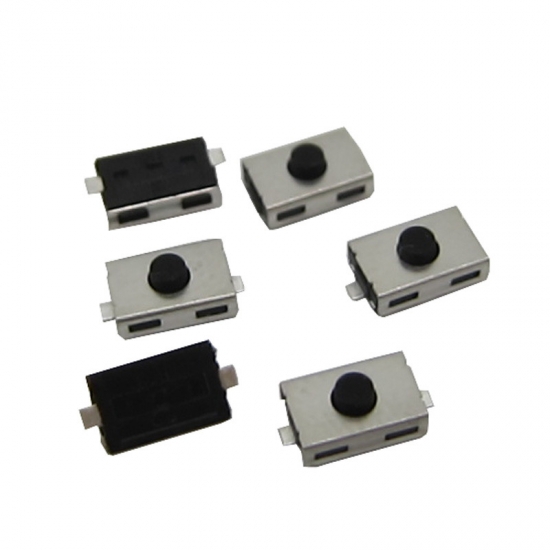

3x6 smd tact 2 pcb multifunction tactile keyboard switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0446D-0183E0201-1
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details


3x6 smd tact 2 pcb multifunction tactile keyboard switch



Basic Information

Product name SMD Tact Switch
Full travel 0.2±0.1mm
Return force 20gf Min
Dimension 3x6x1.8mm
Life Expectancy 200,000 cycles
Operating force 180±30gf
Salt Mist 8h±1h,35℃±2℃

Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
