Tact Switch 6×6 Red Button

Ratings: DC 12V 50mA（Max); DC 1V 10μA （Min）

Contact arrangement: 1 pole, 1 throw

  • Brand:

    Gangyuan

  • Item NO.:

    KAN0644-0552B

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    Red and Silver

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7-14 Working Days For Payment
Contact Us

  • Product Detail

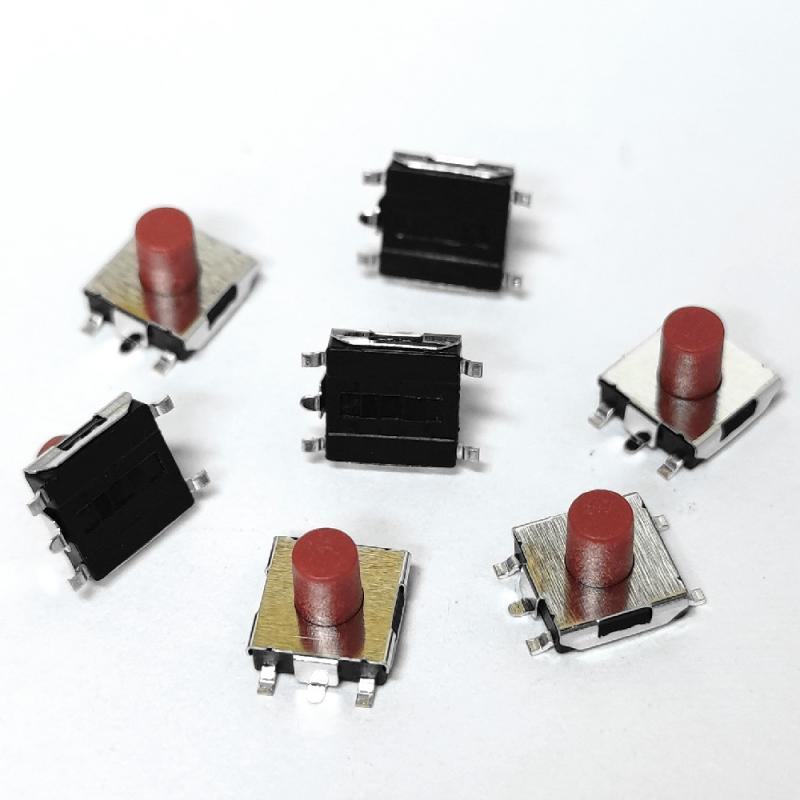

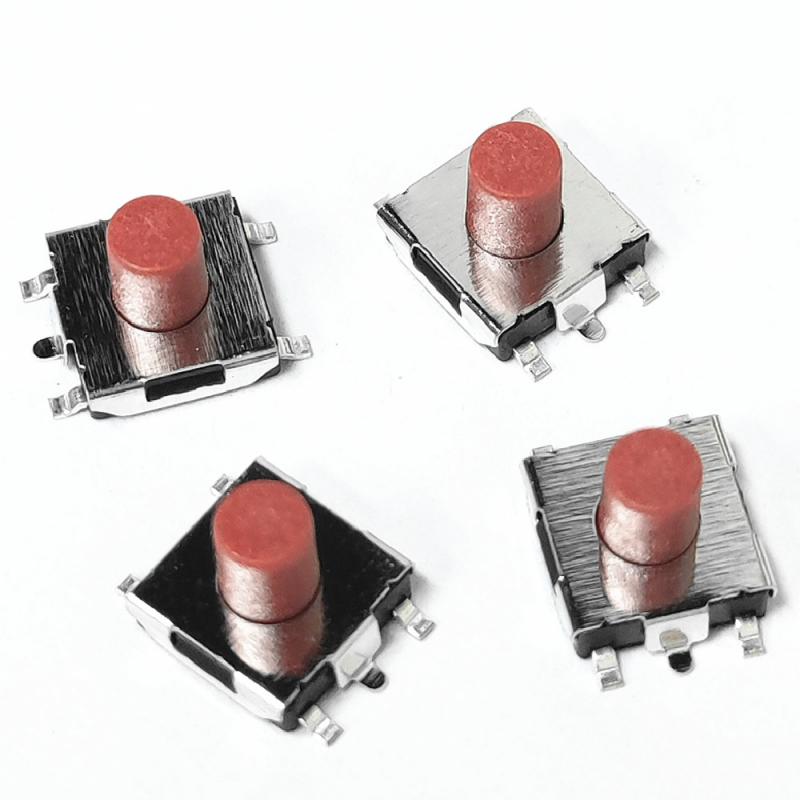

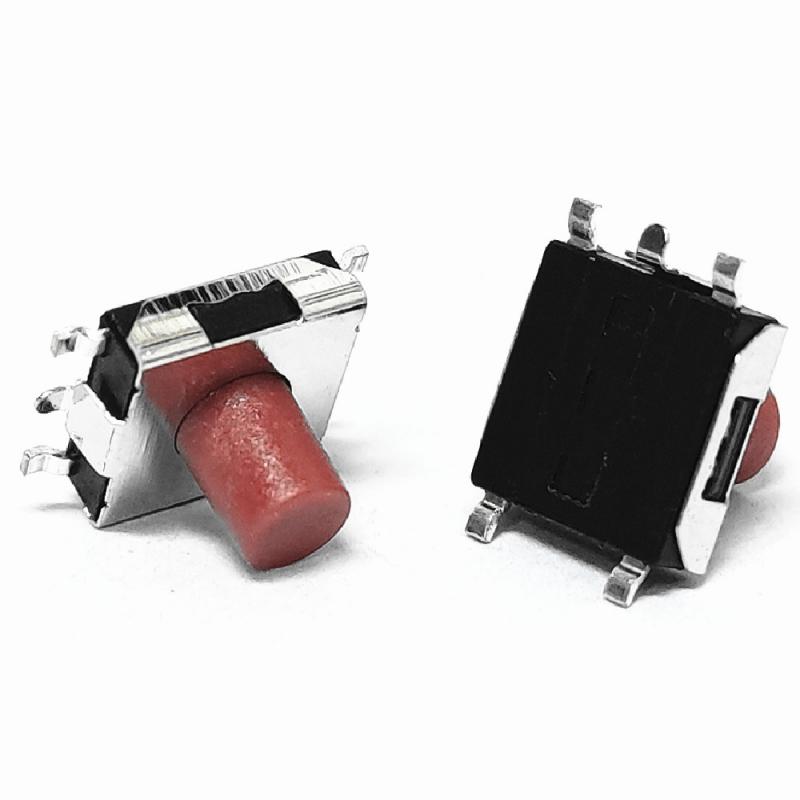

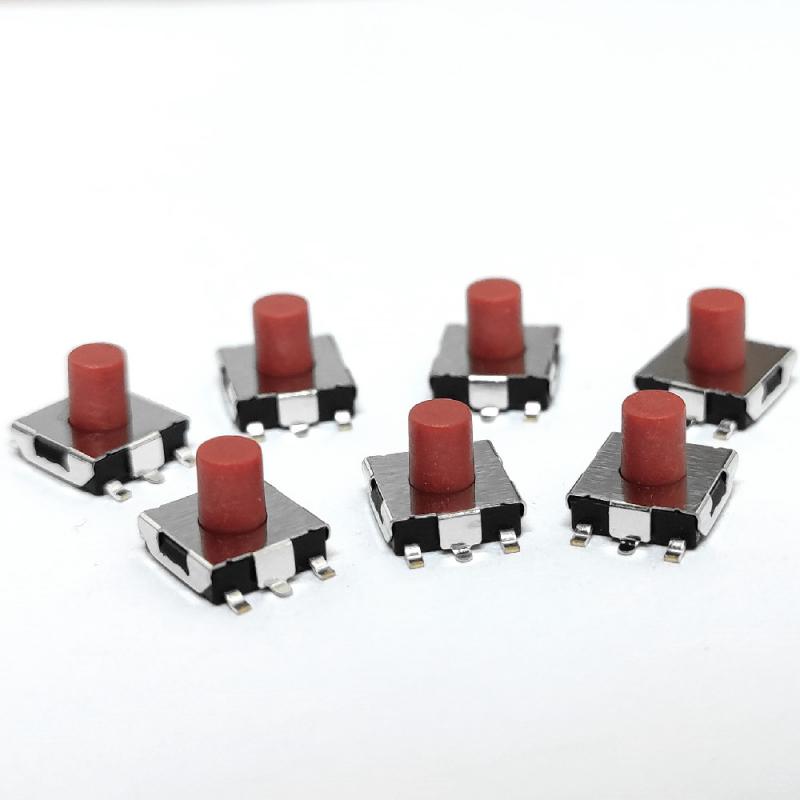

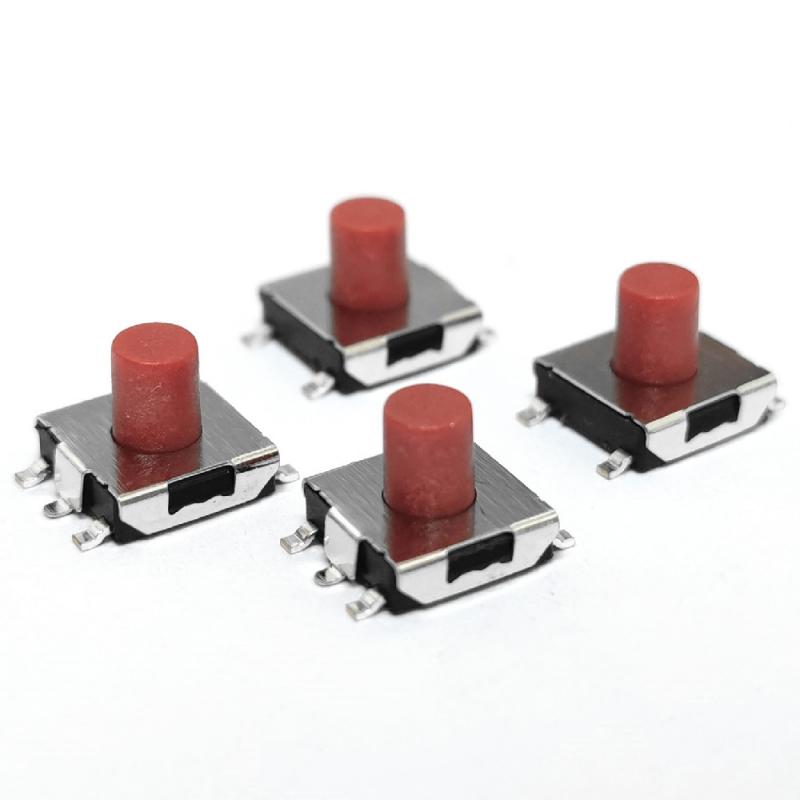

6×6×5.5mm automotive SMT terminal tact switch

Red push button tactile switch


Parameter


china tact switch factory


Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50 gf

Full Travel: 0.25±0.1mm

Life cycle: 100000 cycles

Dielectric Strength: 250V 50HZ 1Min

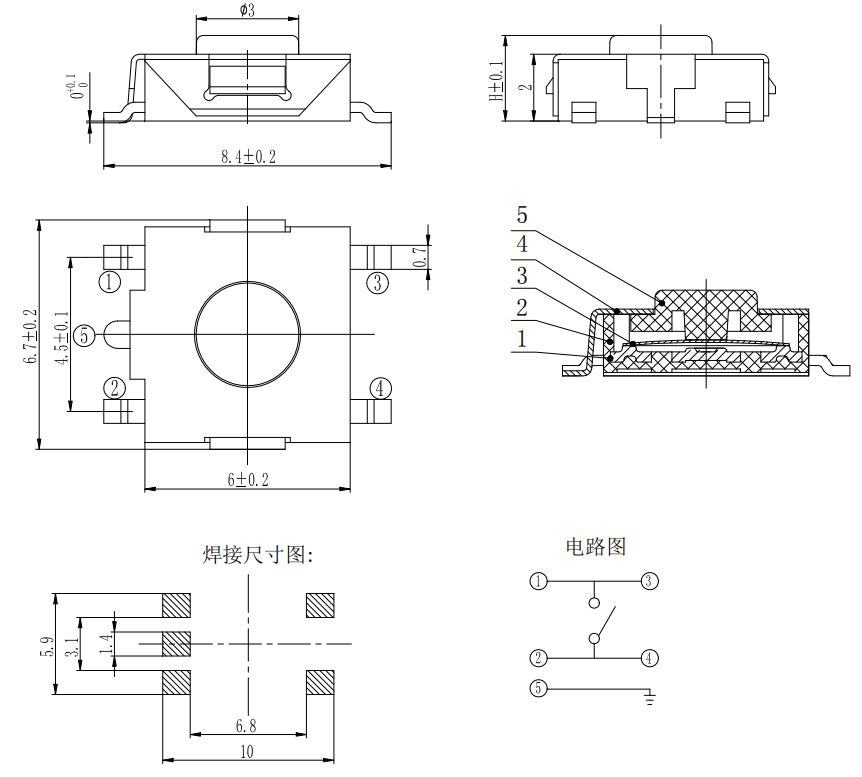

Drawing



Features


  • 6×6mm footprint
  • Multiple heights and operating forces
  • Ground pin option
  • Different button colors


Applications


  • Metering
  • White goods
  • Home and garden equipment
