Home Switch Tactile switch 06 Series tact switch wholesale smd tact switch

wholesale smd tact switch

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0644-0601B010-A42
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    6.00mm x 6.00mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

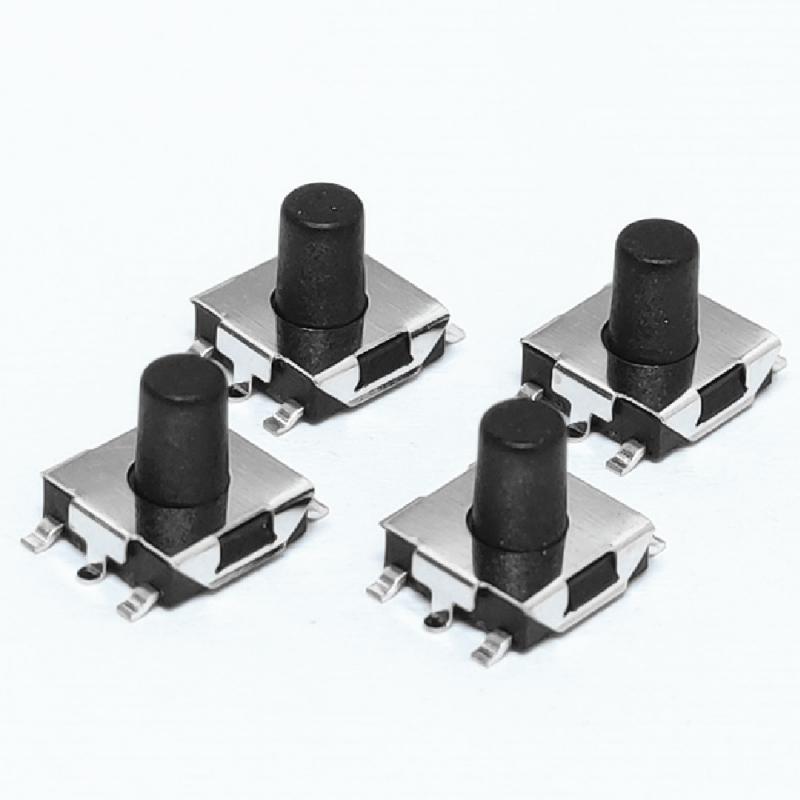

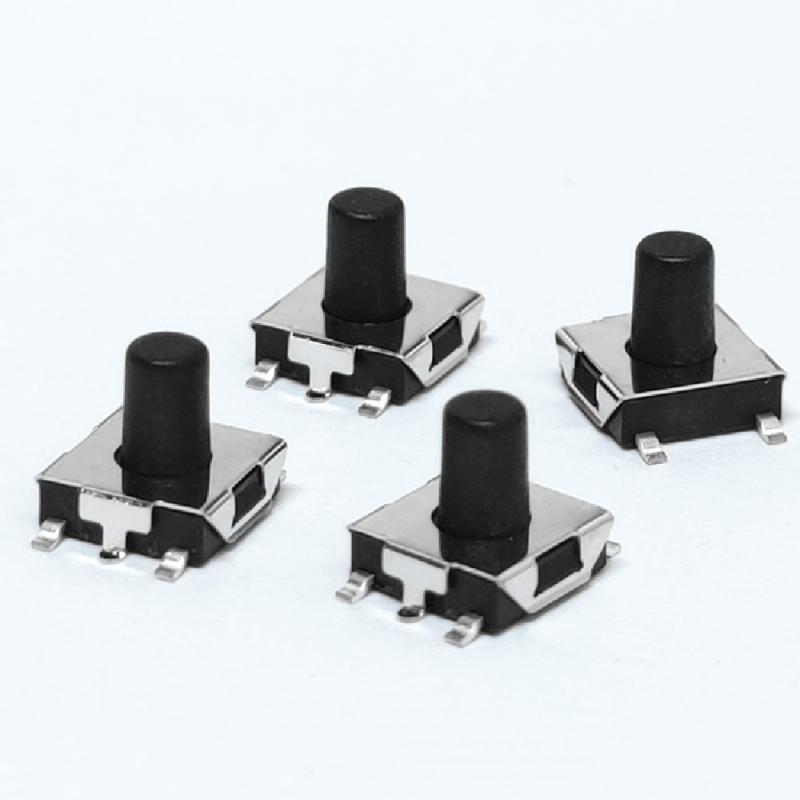

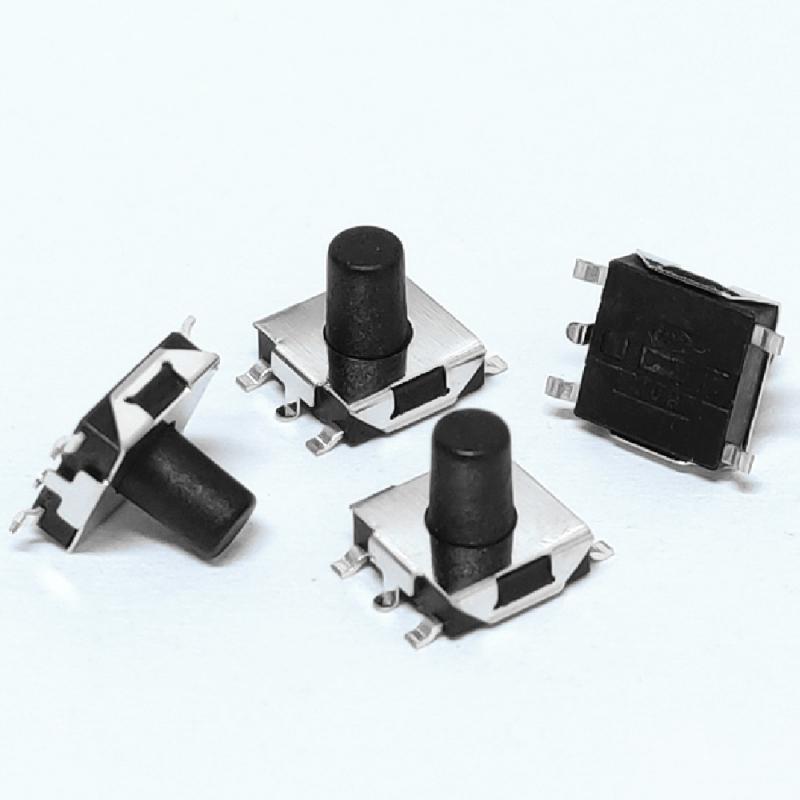

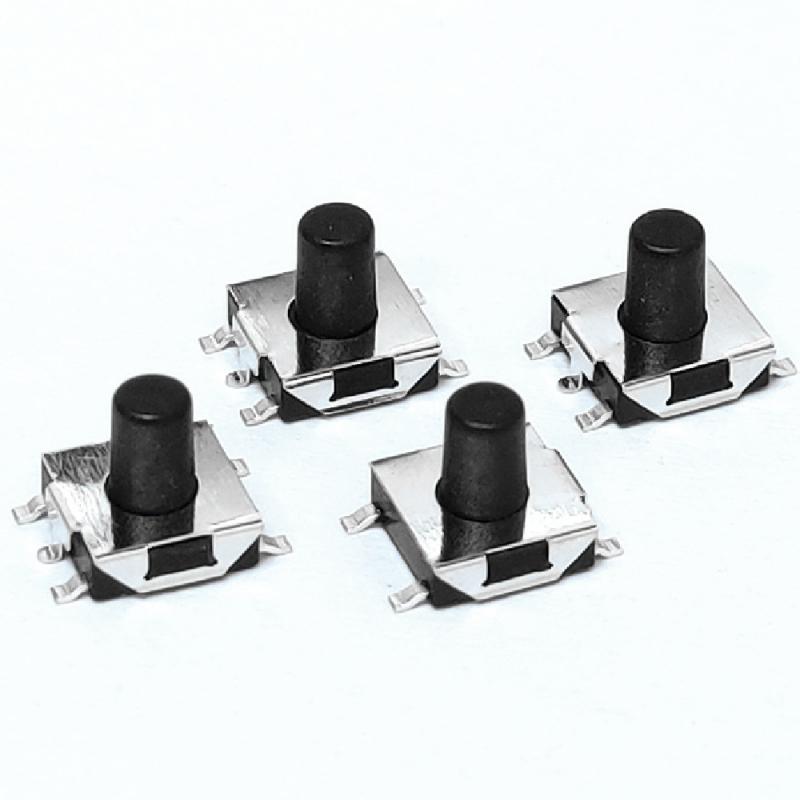

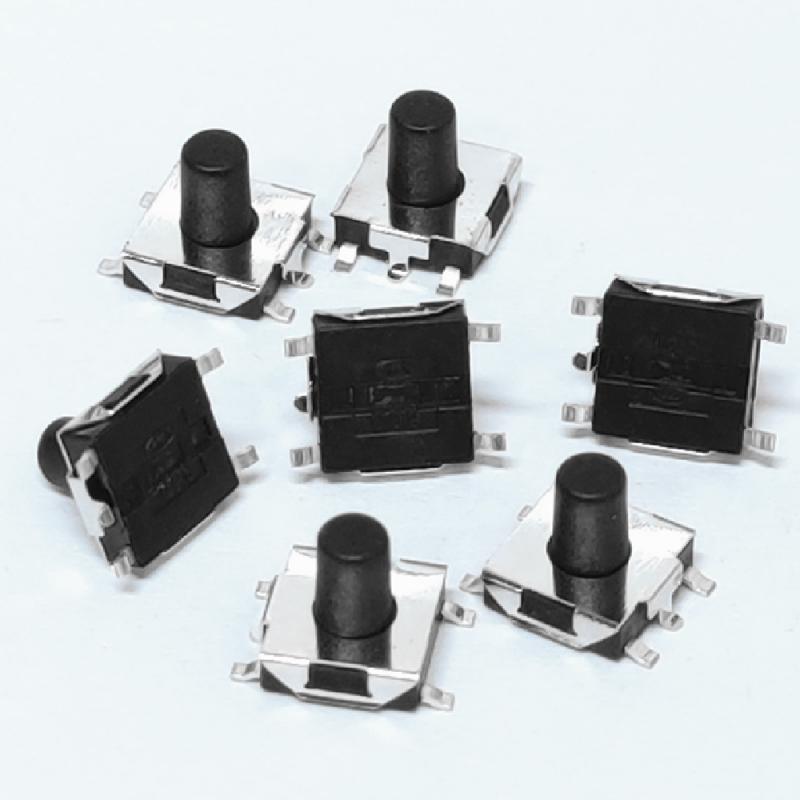

wholesale tact push button smd switch 6x6 tact switch


 4 pin tactile switch datasheet

Type: surface mount switches

Size: 6x6x6mm

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)

Contact Resistance:≤100mΩ
Insulation Resistance:≥100MΩ
Operating Force:160±50gf
Life:100,000 cycles
Storage conditions(Openedstatus ): use up within 1 month

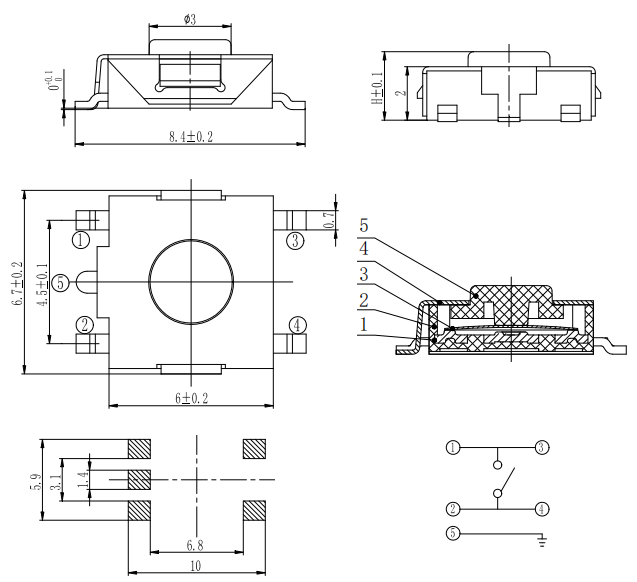

 Tactile switch footprint

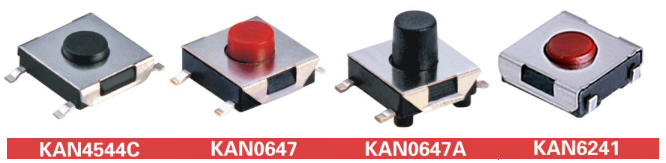

 Similar to smt tactileswitch type




Type:    mini tactile switch        6x6 smd tact switch     tact switch with positioning post   automotive tact switches

 Size:             4.5x4.5mm                         6x6mm                             6x6mm                               6.2x6.2mm

Height:             1.5mm                        2.5mm~5.5mm                2.5mm~5.5mm                      2.5mm~5.5mm


 Are tactile switches clicky ?


Tactile switches produce a bump of varying sizes (depending on the switch) and emit a small clicky sound

The tactile switches are not quite as loud as a clicky switch, so you should be able to use them in a public setting

without drawing too much attention to yourself with the noise.
