surface mount tact switch

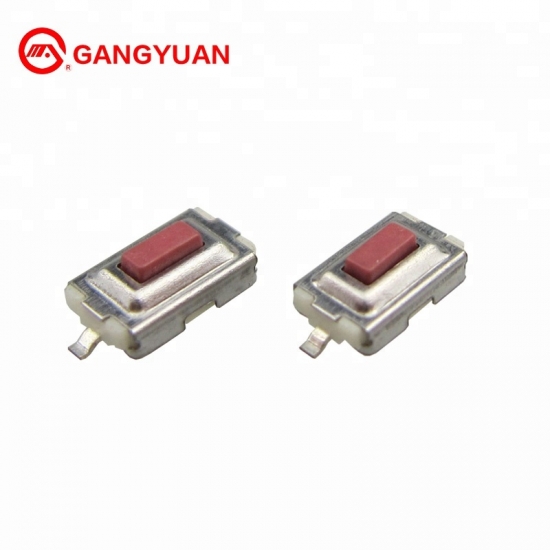

2 pin 3x6mm SMD surface mount tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0441B-0252C
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

2 pin 3x6mm SMD surface mount tact switch

This smd tact switch is mainly used in home appliances, such as washing machine, air conditioner, TV and so on


Basic Information

Brand GANGYUAN
Item No. KAN0441B-0252C
Product height 2.5mm
Operating force 160gf/260gf±50gf
Rating 12V DC 50mA
Life cycles 30,000/50,000 cycles
Sulfuration resistance 40±2℃, 72h
Heat resistance 80±2℃, 96h


Dimension


tactile switch






Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
