Home Switch Tactile switch 04 Series tact switch Microminiature turtle type tact switch

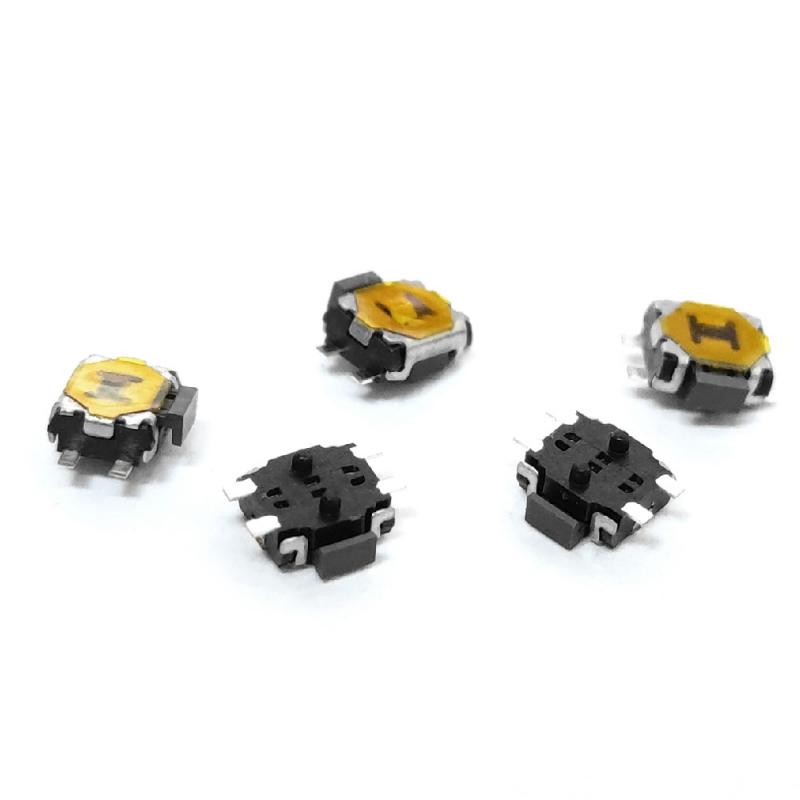

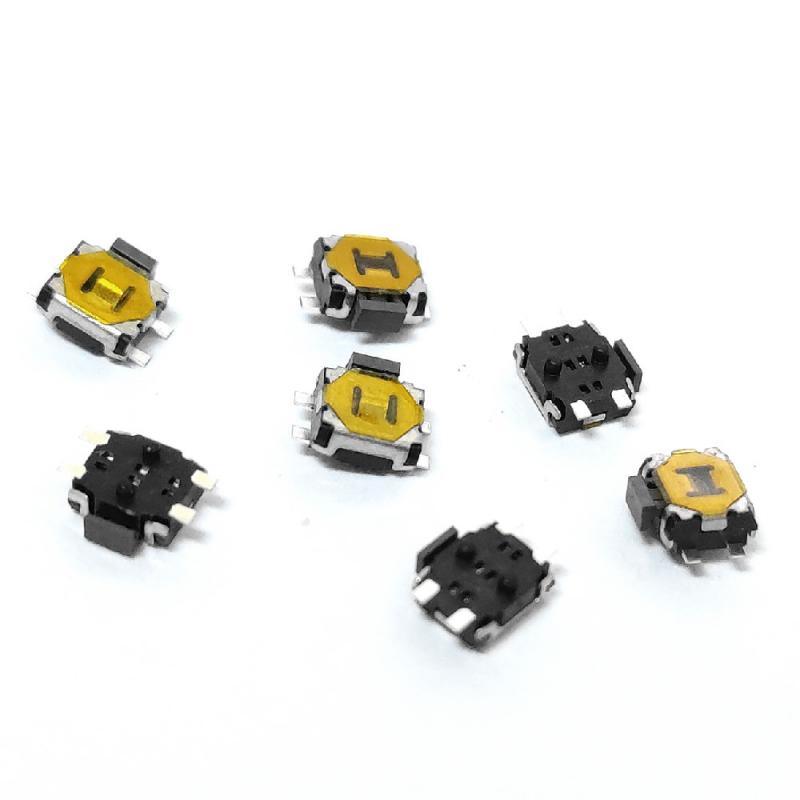

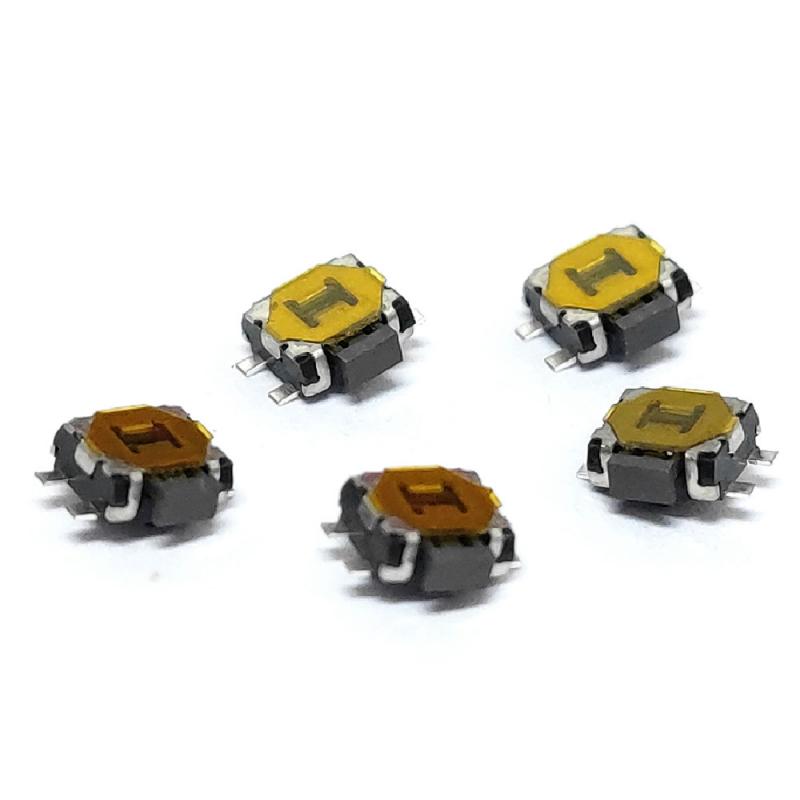

Microminiature turtle type tact switch

KAN0445M-B1-29 is ideal for small handheld and wearable devices.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0445M-B1-29
  • Order(MOQ):

    3000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black and yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Product Detail

1.4mm height with positioning column small tact switch

3×3.5 form factor push button tact switch


Parameter


china tact switch factory

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50gf

Full Travel: 0.2±0.1mm

Return Force: 0.2N Min

Operation life: 50,000 cycles

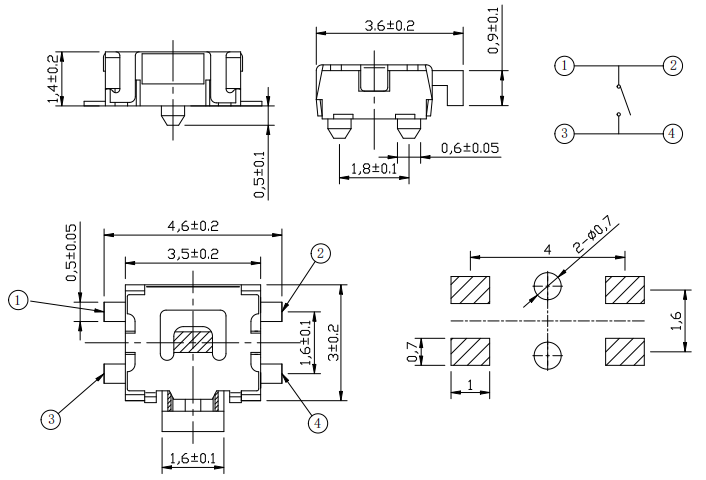

Drawing



Typical Applications


  • IoT devices
  • Portable devices
  • Remote controls
  • Wearables


Solderability


Measurements shall be made following the test set forth below:

  1. Solder temperature : 245±5℃

  2. Immersion time: 3s±0.5s

Except for the edge, the coating should cover a minimum 90%.


Packing


3000pcs/reel;

60000pcs/10 bags/ 20 reels / carton
