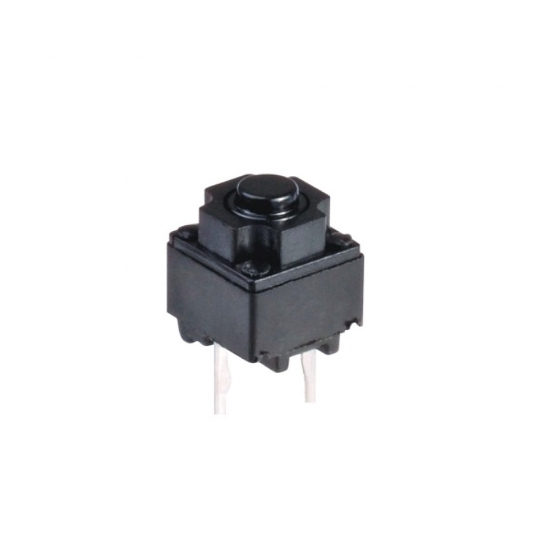

Made In China Wholesale Price 6*6 Dip Tact Switch

KAN0655: DC12v 50mA, 6*6mm, 4 pins dip tact switch.

  • Brand:

    Gangyuan
  • Item No.:

    KAN0655
  • Payment:

    T/T, Paypal full payment before produce
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Ningbo/ Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days depend on order quatity
Product Details

Made In China Wholesale Price 6*6 Dip Tact Switch


Basic Information

P/N
 KAN0655
Dimension
 6x6 mm
Rating current
 12VDC 50mA
Operating force
100gf, 160gf, 260gf(at customers request)
Life cycles
600,000/800,000/100,000cycles
Travel
 0.25±0.1mm

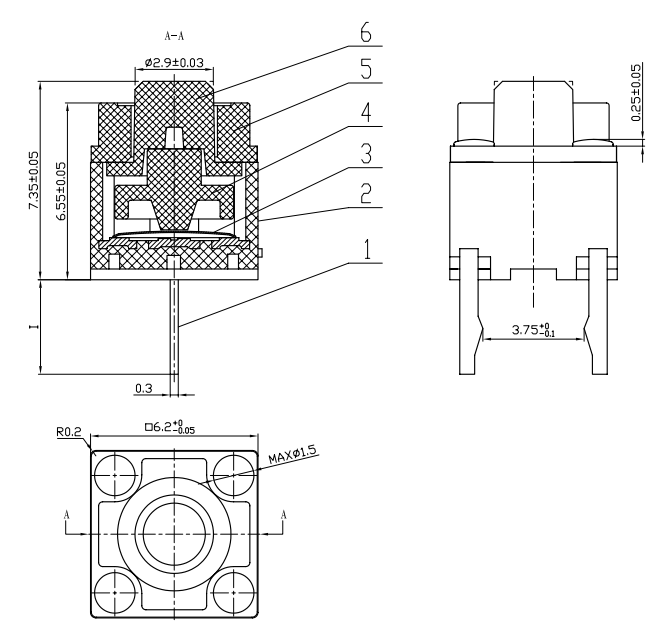

Dimension


Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.


Our Factory View

1. Gangyuan Electronics was founded in 1994, decades tact switch manufacturing experience.

2. Strong R&D group for related switches, sockets, transformers, relays series.

3. Headquartered in Zhejiang Province, China. with 3 plants over area of 5000 square meters and 100k grade clean process line.

4. The soonest respond to clients question. Sales offices with our top sales located in HK,Taiwan, Brasil, South Korea, Singapore.

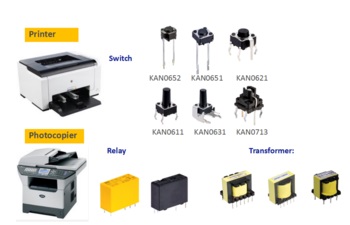

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
