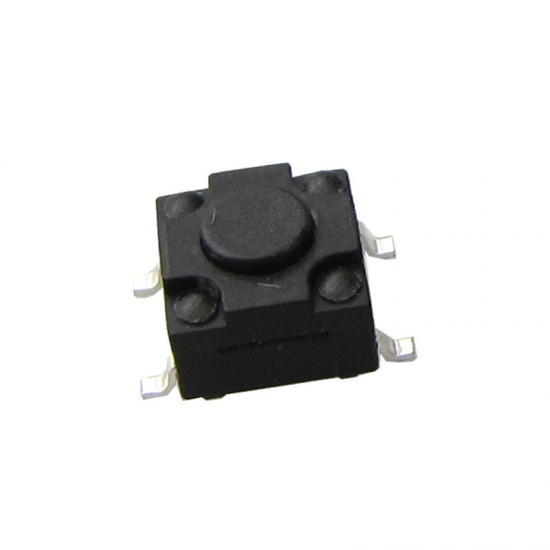

4 pin 6X6 SMD ip67 Waterproof Tact switch cap

6x6 smart sell of push button switch best Waterproof Tact switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0642F
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 Working Days after payment
Product Details

Hot selling 4 pin 6X6 SMD Waterproof Tact switch cap

Tact Switch Specification:

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

100gf/160gf/260gf±50gf

Operation life

100,000 cycles

Height

4.3mm~21mm

Heat resistance



80±2℃, 96h

Sulfuration resistance

40±2℃, 72h

Free samples range

30~50pcs


OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)

KAN0642F Waterproof switch.png
