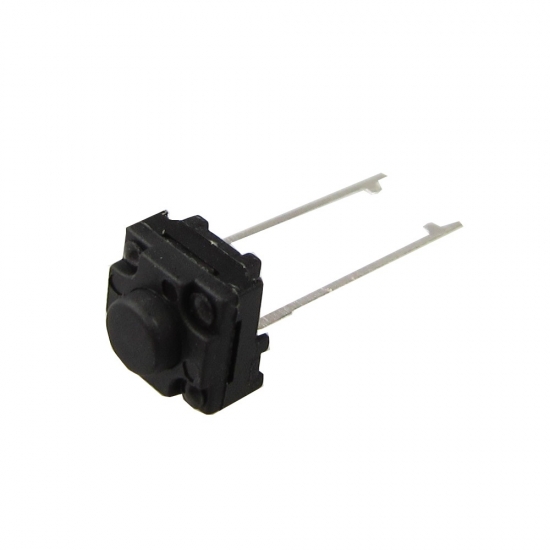

IP67 Waterproof tact switch 6 x 6 2 pins

80,000 life cycles tactile switch with hard actuator,terminals being silver plated.


  • Brand:

    Gangyuan
  • Item No.:

    KAN0656
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:Waterproof Tactile Switch 2 pins


Feature:


  • Positive tactile feeling
  • 4.3mm~ 8.0mm heights are available
  • 100,000 life cycles
  • Paper tape package
  • Hard actuator

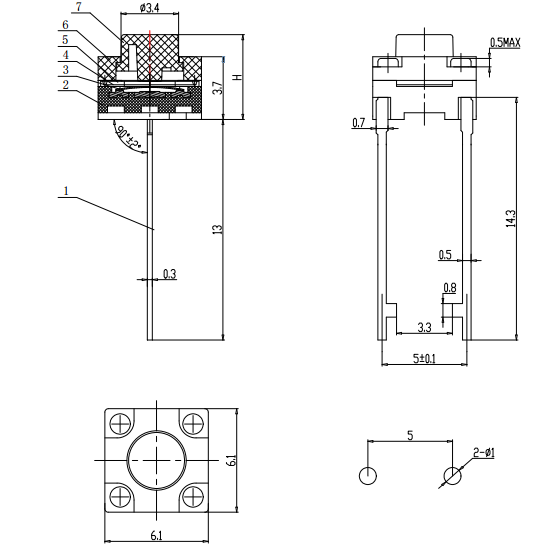

Dimension:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL
Brass 1 Silver plating
2 CASE PA66 1 BLACK
3 CONTACT SUS 1 Ag plating
4 Waterproof membrane SUS 301 1 Yellow
6 RUBBER PAD Silicone pad 1 Black
7 STEM PA66 1 BLACK

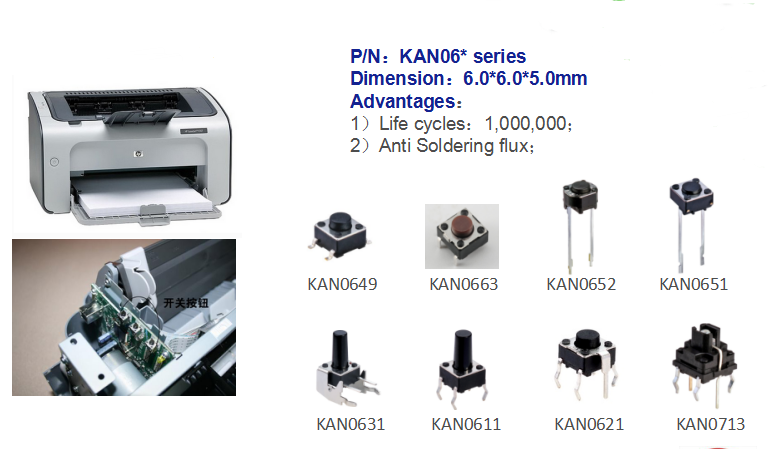

Application
