Home |Switch |Tactile switch |2018 hot sale 4*3mm momentary tact switch SMD switch for digital products

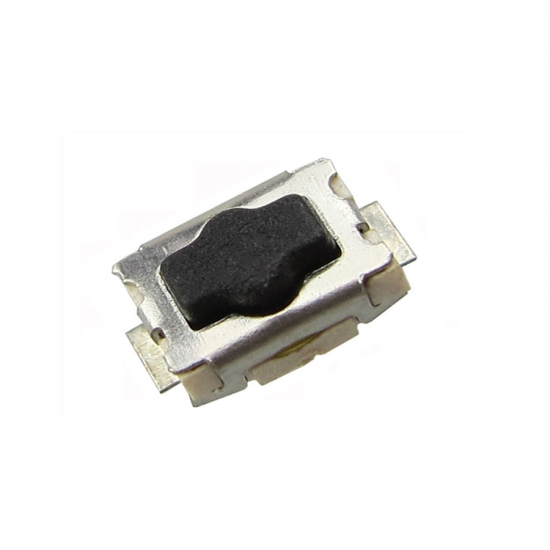

2018 hot sale 4*3mm momentary tact switch SMD switch for digital products

3*4*1.8mm tactile switch offers excellent dust- and waterproof properties (Equivalent to IP67)

Long Life cycles,anti Soldering flux,we have 2mm and 2.5mm height for choose.


  • Item No.:

    KAN0446
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details

 4*3mm Momentary Tact Switch SMD Switch


Feature:


 3*4*1.8mm tactile switch offers excellent dust- and waterproof properties (Equivalent to IP67), and embodies high clicking performance and high reliability. can be customized according to different request,such as operation force,height,with column or without column .Fully automated production,test and tape packaging

This switch is best suited for locations where space is small and reliability is required, as for s mart phones, wearable devices, or vehicle parts.


General characteristic

Operation Temperature

 -20℃~70℃

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Contact resistance

100mΩ max

Operation force

160±30gf

Operation life

200,000 cycles

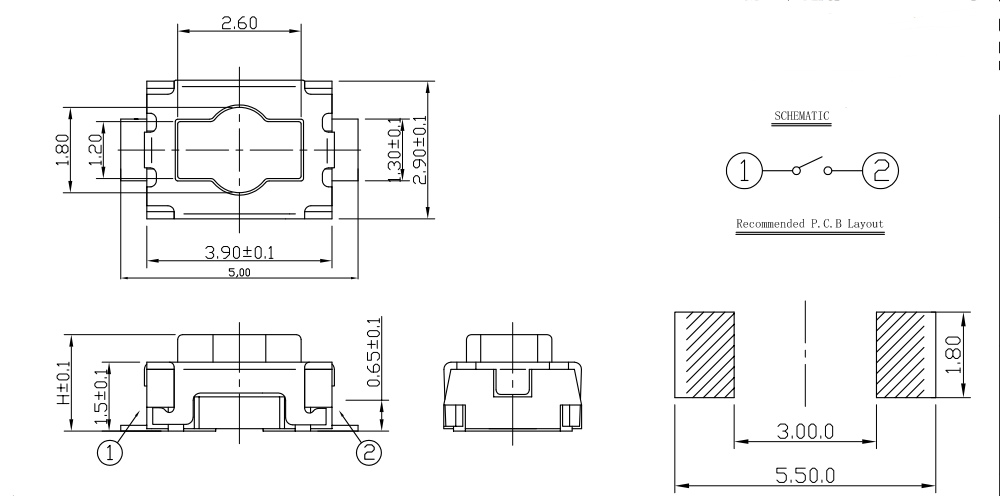

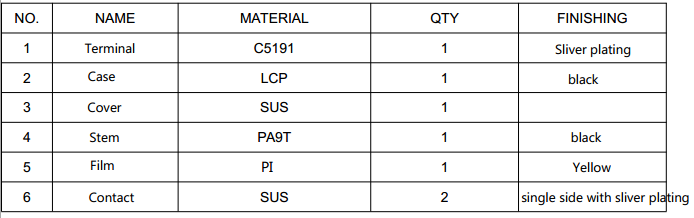

Datasheet:




WHY CHOOSE GANGYUAN?


  • Experience of more then two decades in switch manufacturing
  • Long-term cooperation with LG,SAMSUNG,PANASONIC,CANON,MINDA,etc.
  • 2 invention patents and 47 utility model patents
  • Assembly process in 10,0000 grade dust-free workshop
  • Owing TS16949,ISO9001,ISO14001,OHSA18001 system


A free consultation

Email us with any questions or inquiries or use our contact data. We would be happy to answer your questions.
