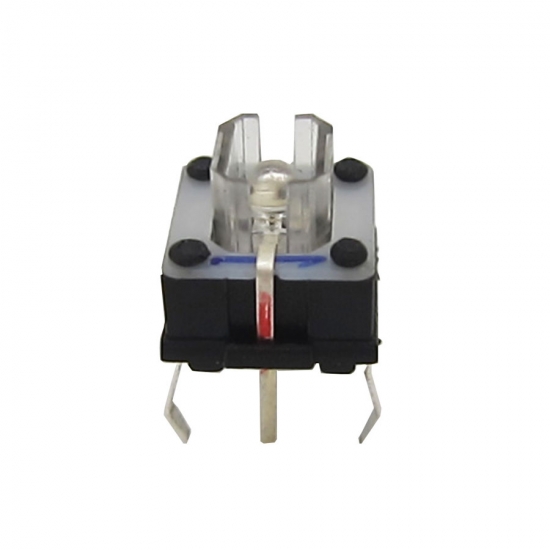

Illuminated tact switch with 5 pins

Illuminated Tactile Switch Series are rated up to 100,000 electrical lifecycles and designed for easy operation and reliability in a variety of board mounted applications.

  • Brand:

    Gangyuan
  • Item No.:

    KAN6811
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    Various LED light
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    7 working days
Product Details



Product item:Illuminated tact switch with 5 pins


Feature:


  • Rated up to 100,000 electrical life cycles

  • Low or high intensity LED indicators available in single or double color options

  • Integrated super-bright LED

  • Wave solder compatible designs

  • Tactile and audible feedback

  • Wide range of actuation forces available

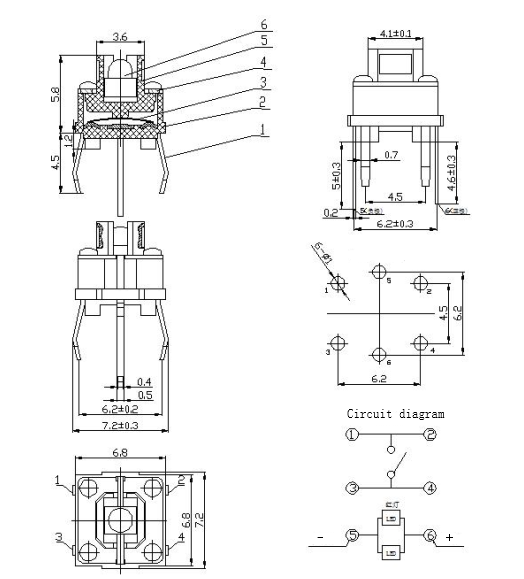

Dimension:


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE PA66 1 Black
3 CONTACT Phosphor bronze 2 Contact side silver plating
4 COVER SPCC 1 Cu Sn plating
5 STEM PA66 1 Red
6 LIGHT LED 1 single or double color

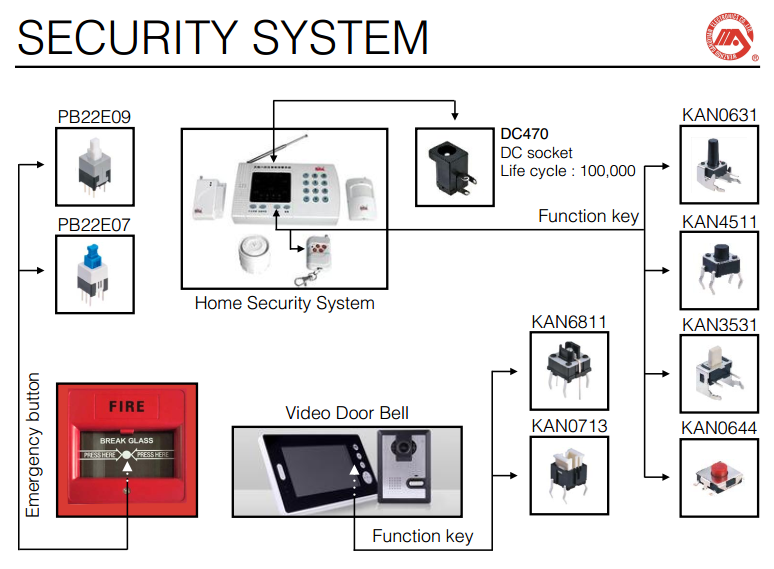

Application
