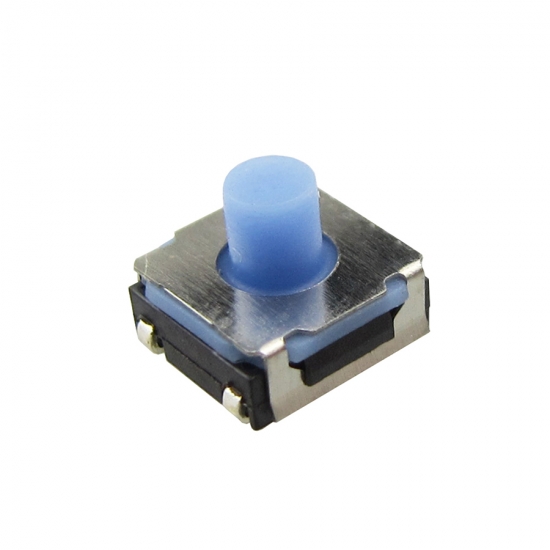

J bend SMD tactile switch with blue knob

100,000 life cycles tactile switch with silicone knob,terminals being silver plated.

Brand:
Gangyuan
Item No.:
KAN6247
Payment:
100% T/T before production
Product Origin:
Zhejiang
Color:
blue/white stem available
Shipping Port:
Ningbo/Shenzhen
Min Order:
1000pcs
Lead Time:
7 working days

Product Details

Product item:J bend Tactile switch

Feature：

Positive tactile feeling
3.4mm or 5.0mm heights for choose
Long life cycles
Sealed tact switch for SMT
Soft actuator

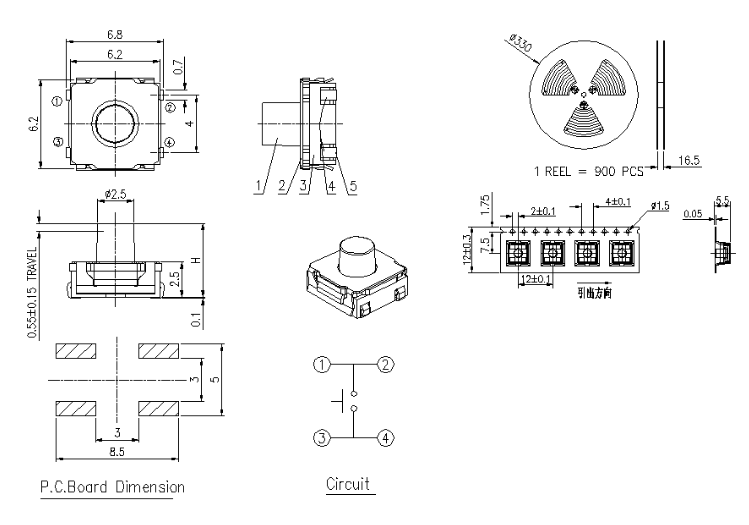

Dimension:

NO.	NAME	MATERIAL	QTY.	FINISHING
1	STEM	Silicone	1	Blue
2	COVER	SUS	1	Natural
3	CASE	PPS	1	Black
4	COTACT	SUS 301	1	Ag plating
6	TERMINAL	BRASS	1	Ag plating

Application
