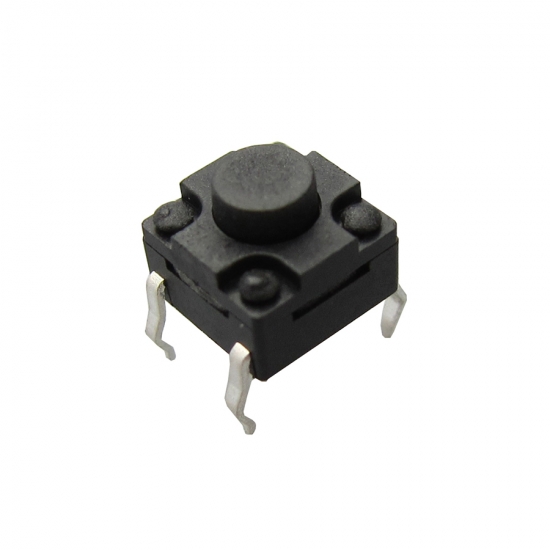

6×6 though hole tact switch waterproof type

6×6 classic type tactile switch meet IP67 waterproof level.Support wave soldering and hand soldering.

  • Item No.:

    KAN0616
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    1000pcs
  • Lead Time:

    5-7working days
Product Details

 6×6 though hole tact switch waterproof type


Feature


  • Dust and water resistance
  • IP67
  • Wave-soldering
  • 100,000 life cycles
  • RoHS compliant and compatible



General characteristic

     Operation Temperature

 -20℃~70℃

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Salt Mist

8h±1h

Operation force

2.6±0.5N

Full travel

0.25±0.1mm

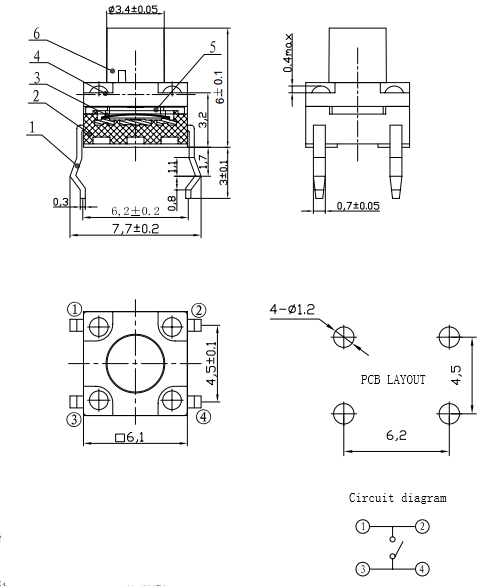

Drawing




NO. NAME MATERIAL FINISHING
1 TERMINA Brass Siliver plating
2 CASE PA66 Black
3 CONTACT Phosphor bronze Contact side silver plating
4 COVER SPCC-SD CuSn plating
5 WATERPROOF PAD Silicone Black
6 STEM PA66 Black

What is tactile switch?


A tactile switch is an on/off electronic switch that is only on when the button is pressed or if there is a definitive change in pressure. Another way to consider it, as momentary make or brake switch. As soon as a tactile switches button is released, the circuit is broken.
