Home Switch Tactile switch 6*6*5 SMD silent tactile switch use for automotive

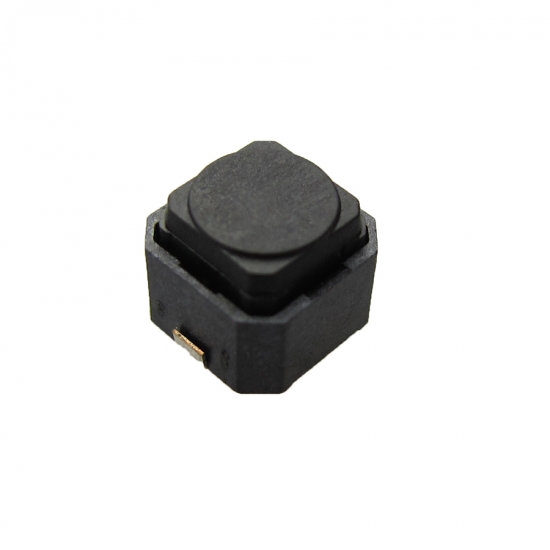

6*6*5 SMD silent tactile switch use for automotive

Silent silicone tactile switch operating force 230±50gf,very good clicking performance and high sensitivity.UL and Reach certification available.


  • Brand:

    Gangyuan
  • Item NO.:

    KTD0621
  • Order(MOQ):

    1000pcs
  • Payment:

    T/T
  • Product Origin:

    Zhejiang
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail

6*6*5 SMD silent tactile switch use for automotive


General characteristic

Operating Temperature            -40℃±90℃
Rating 16 VDC ,50mA
Travel 1.3±0.1mm
Return force 40gf min
operation life 100,000cycles


Application

Silent switch Widely used in vehicle DVD, audio, digital cameras, automotive electronics, GPS navigator and other products

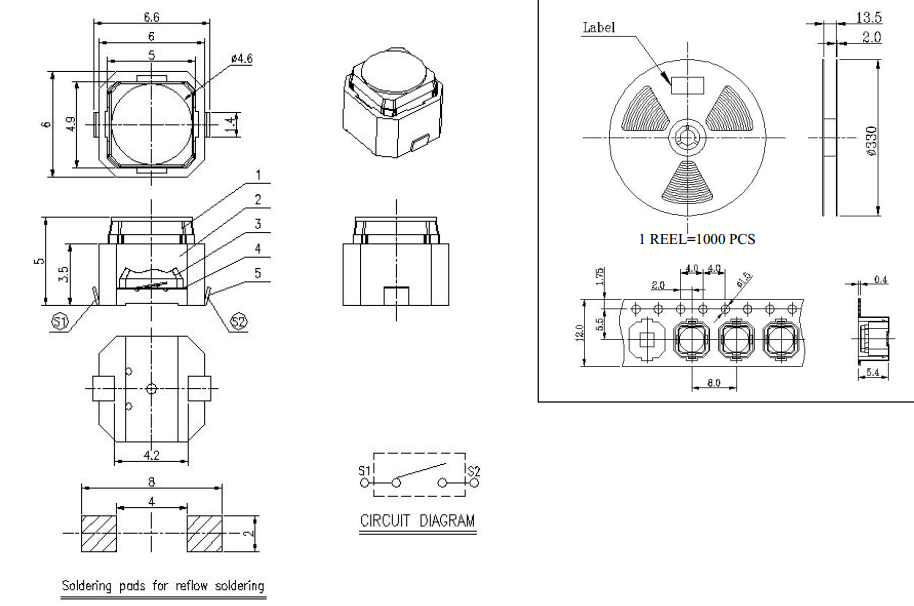

Drawing



NO. NAME MATERIAL QTY FINISHING
1 STEM PA 1 BLACK
2 CASE LCP     1 BLACK
3 CONTACT SILICONE 1 YELLOW/BULE/RED
4 CONTACT  C5210 1 Ag plated
5 TERMINAL C5191 1 Ag plated


Advantage

              Gangyuan electronics offers a wide variety of tactile switches including 6*6mm SMD/DIP , ultra-thin, and low profile tactile switch options. GYE tactile switches are specially sealed to permit automated wave soldering and washing. Logic-level surface-mount and PC board mounting options. Lighted and non-illuminated models and with various heights and operating force are designed to meet virtually any application. Customizable 3D CAD models would be provide if require. UL certifications available. Certificate of RoHS2 Environmental Compliance is provided within each product series.
