Home Switch Tactile switch 5.1x5.1x1.5 tactile switch SMD type

5.1x5.1x1.5 tactile switch SMD type

Product item KAN0542 TACT SWICH offers black and white color,plastic and metal stem is available.


  • Brand:

    Gangyuan
  • Item NO.:

    KAN0542
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T before production
  • Product Origin:

    Zhejiang
  • Color:

    black/white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 working days
  • Product Detail

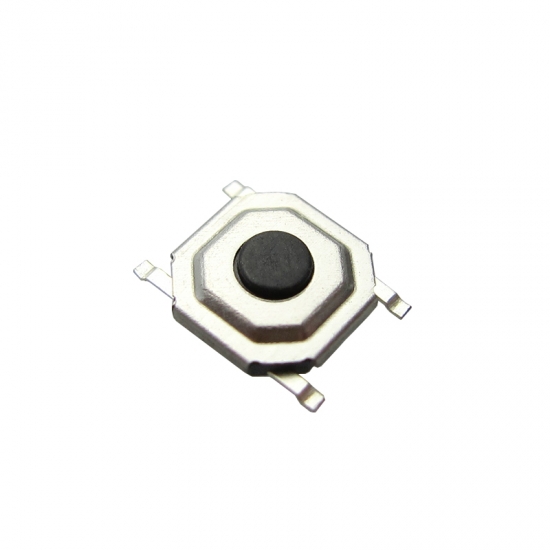

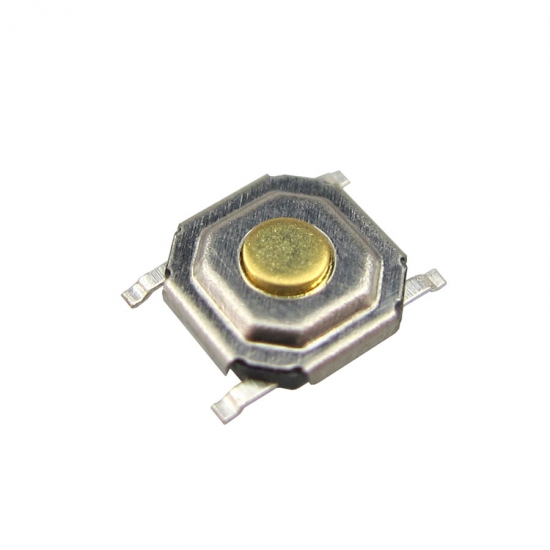

 5.1x5.1×1.5 tactile switch


Feature

ON/OFF tactile switch with high clicking performance and high reliability. can be customized according to different request,such as operation force,height,with column or without column .Fully automated production,test and tape packaging

This switch is best suited for locations where space is small and reliability is required, as for s mart phones, wearable devices, or vehicle parts.



General characteristic

Contact arrangement

                           1 pole,1 throw

Rating

12V DC,50mA

Insulation resistance

100mΩ min,100V DC

Contact resistance

100mΩ max

Operation force

160±30gf

Operation life

100,000 cycles

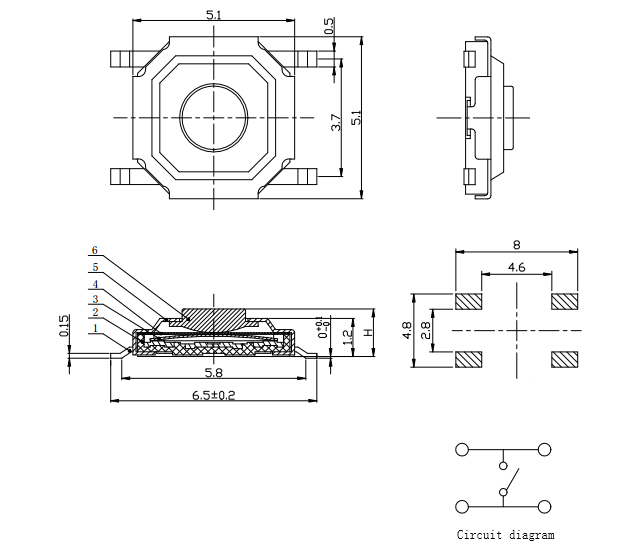

Datasheet


NO. NAME MATERIAL QTY. FINISHING
1 TERMINAL Brass 1 Silver Plating
2 CASE LCP 1 Black
3 CONTACT SUS 1 Ag plating
4 FILM PI 1 Yellow
5 COVER SUS 1 Electroplating
6 STEM Brass 1 Yellow

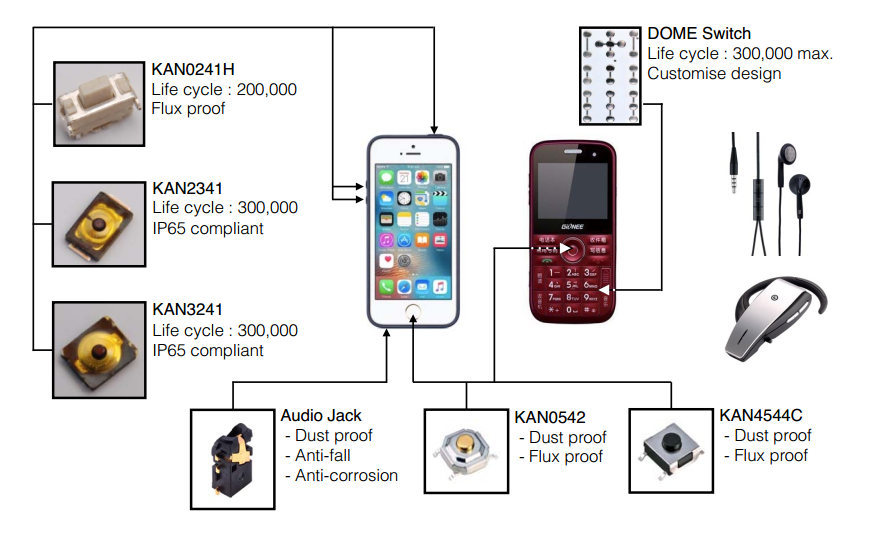

Application
