Home Switch Tactile switch 06 Series tact switch 50mA spst smd j-hook tact switch

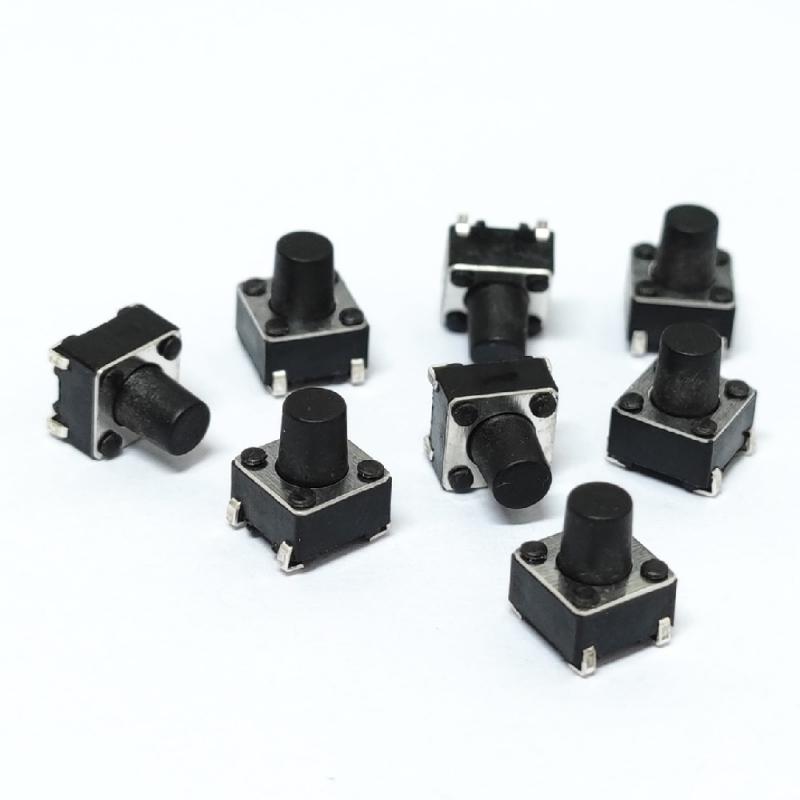

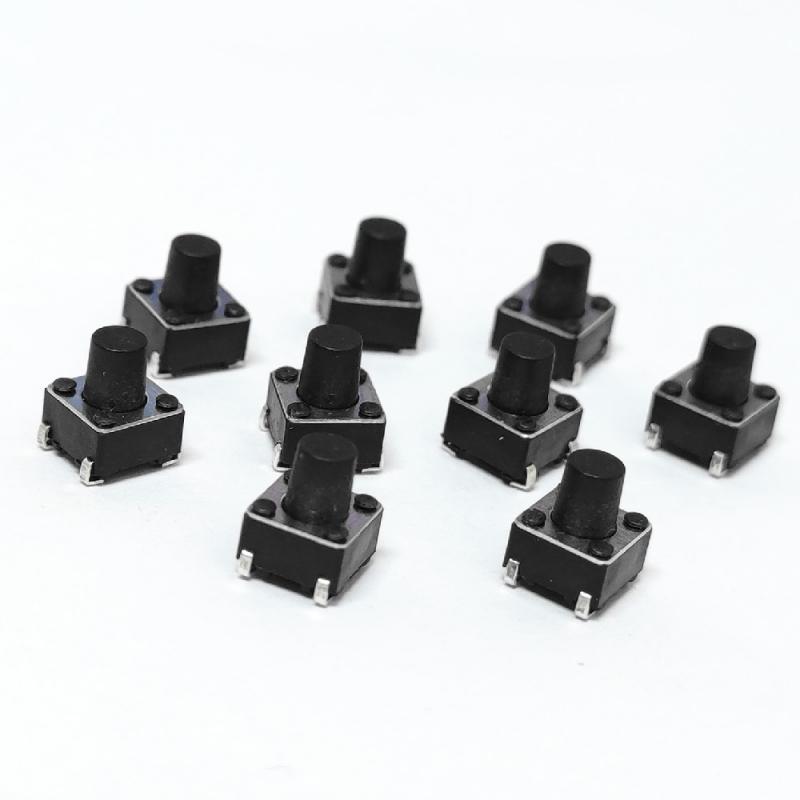

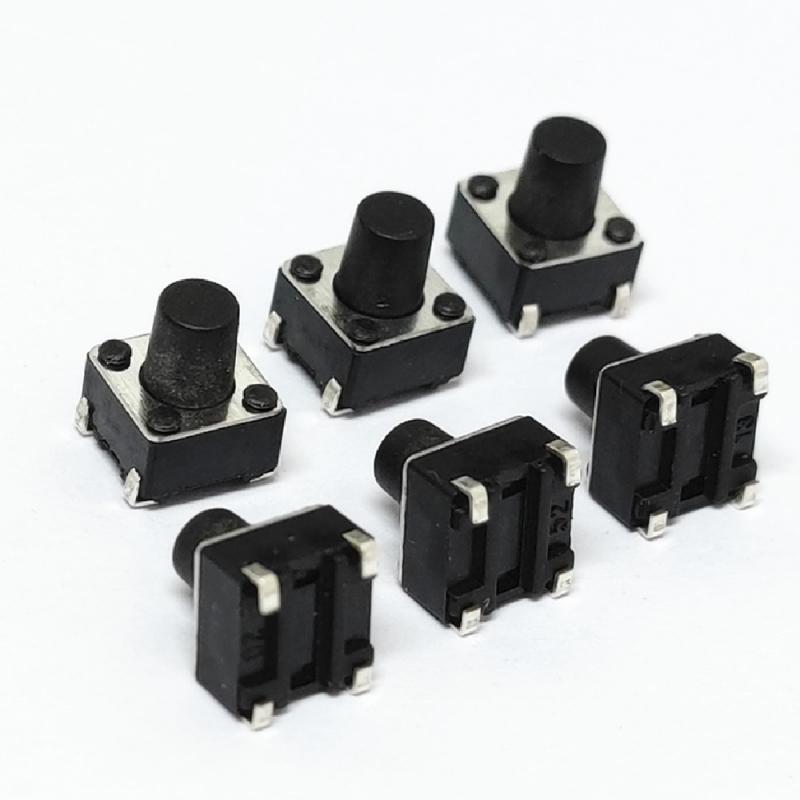

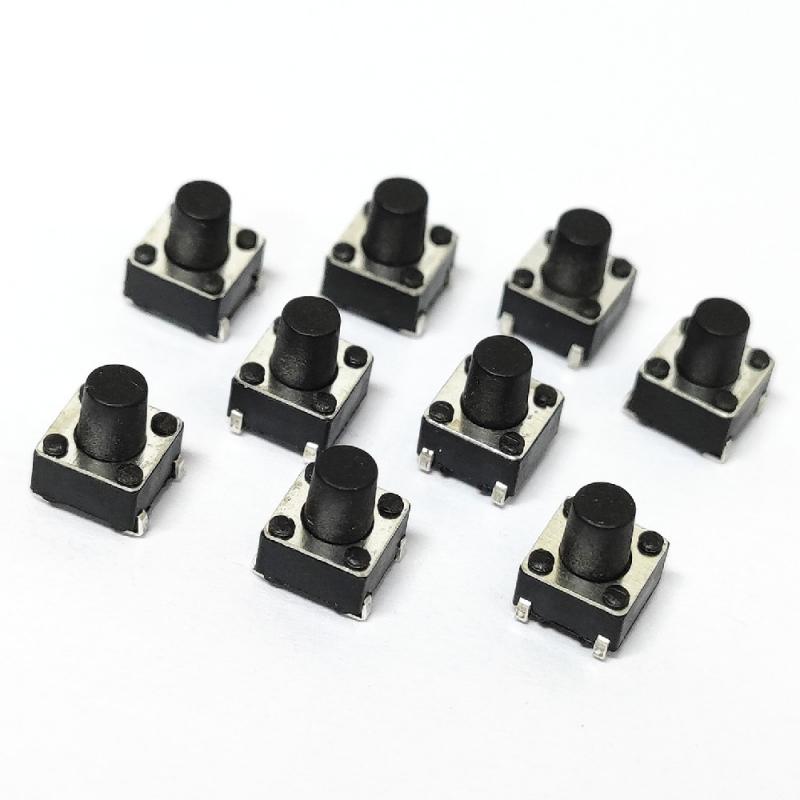

50mA spst smd j-hook tact switch

Tact switches are commonly used in many consumer electronic devices. They have a small footprint and come in many sizes and gram forces.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0649E-0731B
  • Order(MOQ):

    1000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

6x6mm tact switch 4 pin tactile tact push button micro switch

switch manufacturer


 Tact switch datasheet


Ratings: DC 12V 50mA
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 160±50gf
Full Travel: 0.25±0.1mm
Life Time(mating cycles): 100,000 cycles
Height: 7.3mm ( Other choose 4.3mm~17mm )

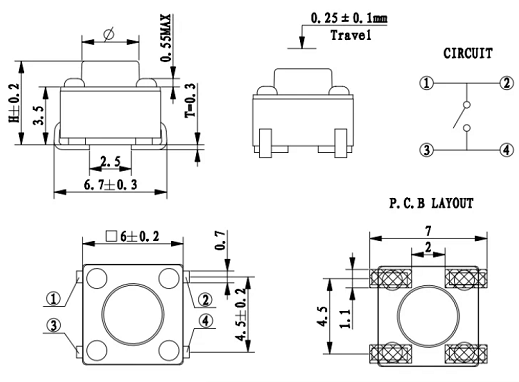

 Drawing


 What are the types of tactile switches?


There are two types of tactile switches: Standard tactile switch and sealed tactile switch.


 Related

6x6mm Gull wing tact switch, different foot spacing



  10mmfoot spacing    8mm foot spacing      9mm foot spacing


6x6mm dip tactile switch
