KAN0656 Waterproof tactile switch used the PA66 material can be meet the condition of high temperature resistance. High level waterproof grade with SMD,DIP,2PIN vertical type for choose.
Brand:
GangyuanItem NO.:
KAN0656Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
ZhejiangColor:
BlackShipping Port:
Ningbo/ShenzhenLead Time：

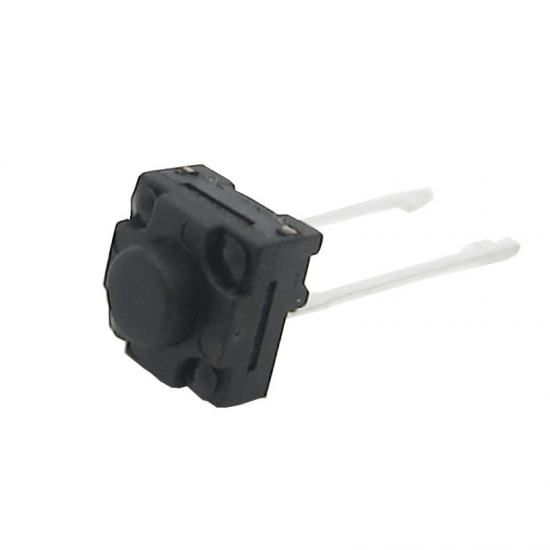

7 Working Days after paymentIP67 Vertical 2 pin push button switch
Product Description:
KAN0656 Waterproof tactile switch used the PA66 material can be meet the condition of high temperature resistance. High level waterproof grade with SMD,DIP,2PIN vertical type for choose.
|
Model Name: |
SMD Waterproof tactile switch |
|
Model No.: |
KAN0656 |
|
Dimension: |
6x6mmx H( 4.3-9mm) |
|
Operating force: |
160±50gf -260gf |
|
Life cycles: |
100000/200000 times |
|
Working temperature: |
-20℃to+70℃ |
|
DC rating: |
50mA.12V DC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.30±0.1mm |
|
Return Force: |
≥ 20gf |

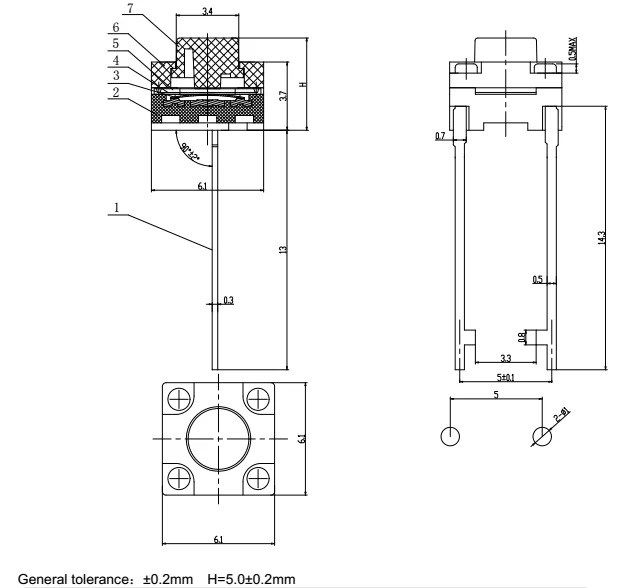

Dimension:
