Home Switch Tactile switch 04 Series tact switch 2 pin momentary tactile tact push button switch

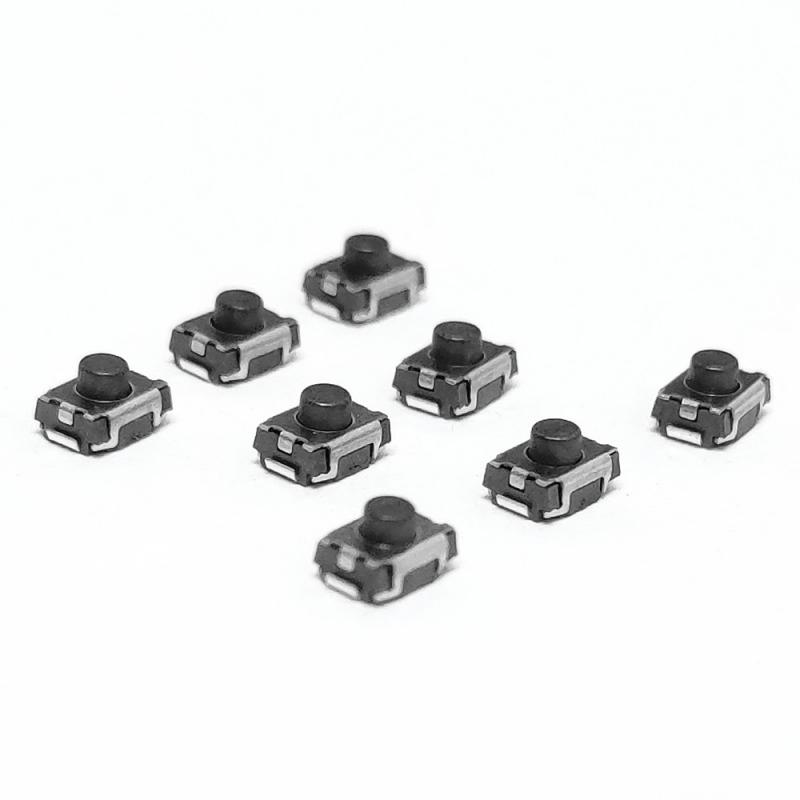

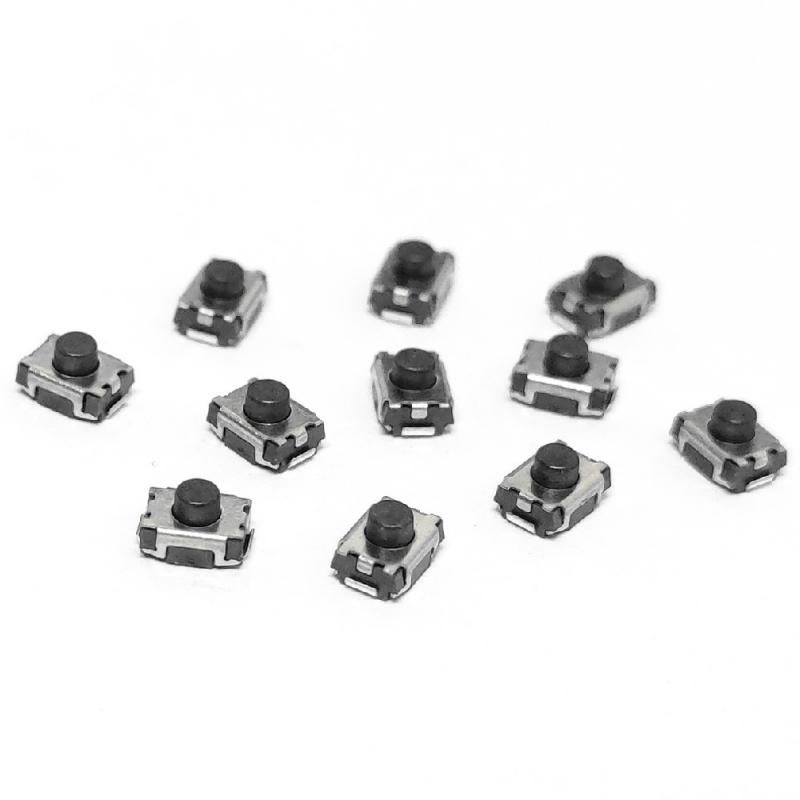

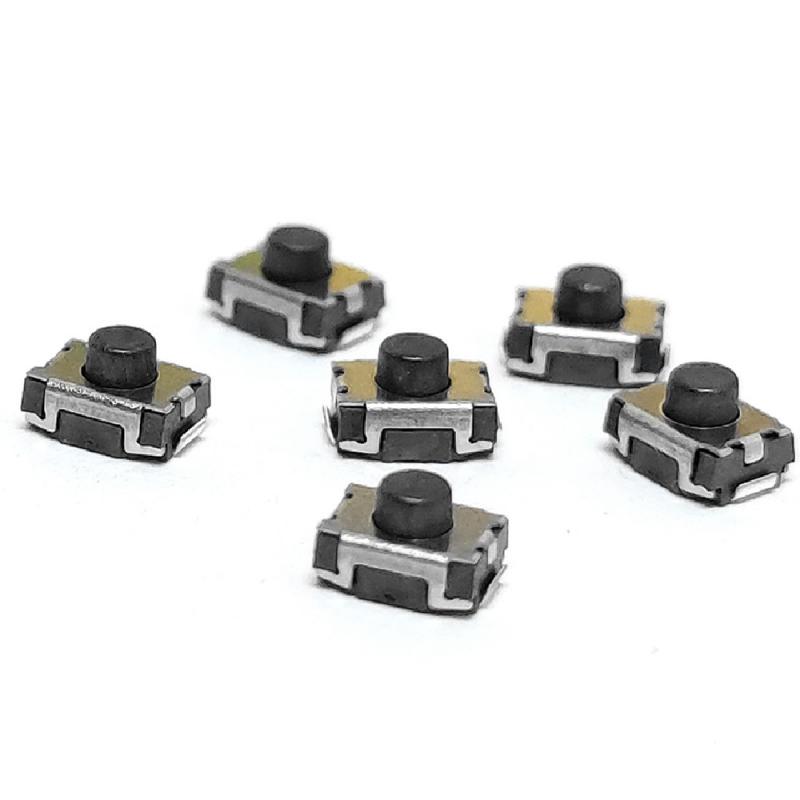

2 pin momentary tactile tact push button switch

A smt tactile switch, also known as haptic switches, is a momentary switch designed to provide tactile feedback or response when pressed to activate it.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0444G-0251B1
  • Order(MOQ):

    2500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

microminiature SMT top actuated 2 pin tact switches

SPST J Form Lead type tactile switches


 Tact switch datasheet

Ratings: 12V DC, 50mA
Contact Resistance: ≤100mΩ Max
Insulation Resistance: ≥100MΩ 100V DC
Operating Force:2.5±0.5N, 1.6±0.3N
Full Travel: 0.15±0.05mm
Life Time(mating cycles): 100,000 cycles
Height: 2mm

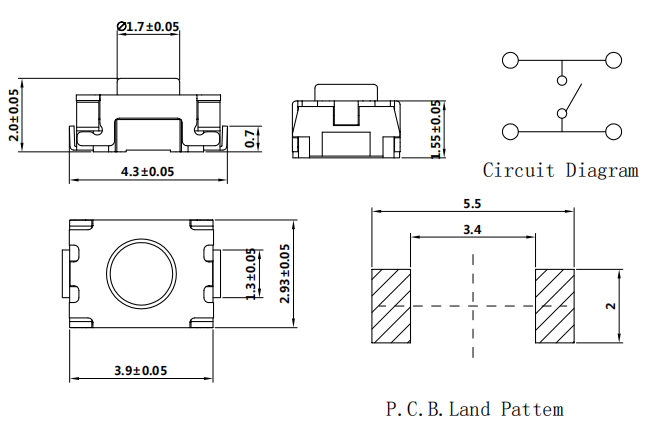

 Tact switch schematic

 How does a tact switch work ?

When the smd tactile switch is pressed with a certain force, the two internal contacts will be connected and conducted. After the hand is released,

the contacts will be separated and disconnected due to the action of mechanical force. This mechanical force can be provided by the metal dome

structure inside the tact switch.


 Typical Applications

• Control panels • Nomad devices • Remote controls • Keyless entry system

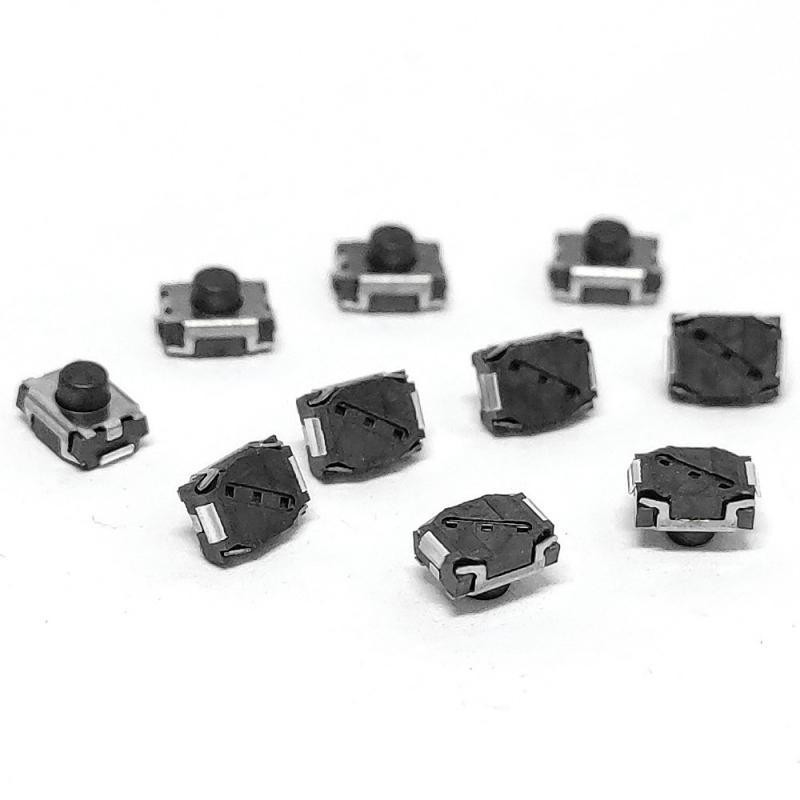

2 pin gull wing type tact switches         plum head microminiature tact switch for smt


 Tact switches supplier

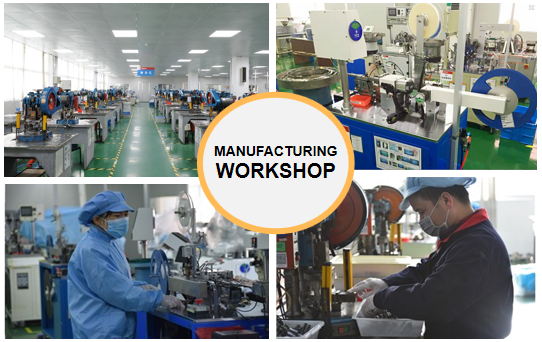

 Automatic production equipment ( 202 Sets )    Automatic testing equipment ( 36 Sets )

       Possess a 100,000-level workshop              One-stop laboratory equipment
