Home Switch Tactile switch 04 Series tact switch 2 pin flat miniature best smd tactile switches

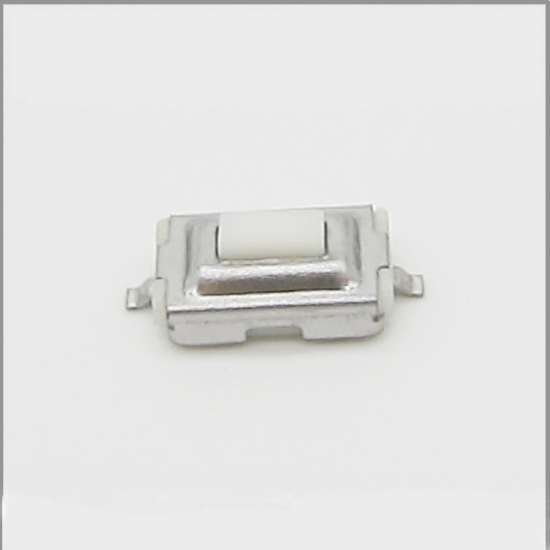

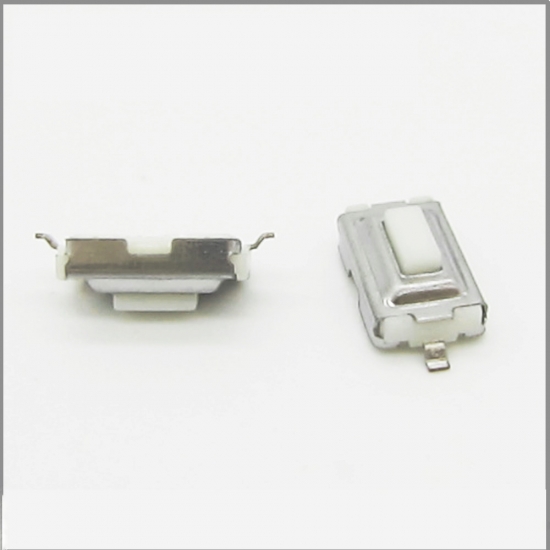

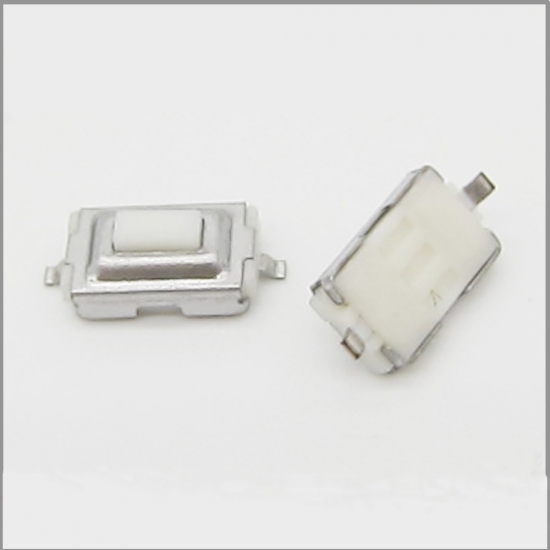

2 pin flat miniature best smd tactile switches

Gangyuan tactile switch with 2pin and miniature type tact switch

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0441C
  • Order(MOQ):

    3000pcs
  • Payment:

    EXW
  • Market Price:

    $0.03
  • Price:

    $0.028/pc
  • Price Range:3000 - 12000/$0.028
  • Product Origin:

    Zhejiang ,China
  • Color:

    white or natural
  • Shipping Port:

    Shanghai ,Shenzhen
  • Lead Time:

    7-10 working days
  • Product Detail

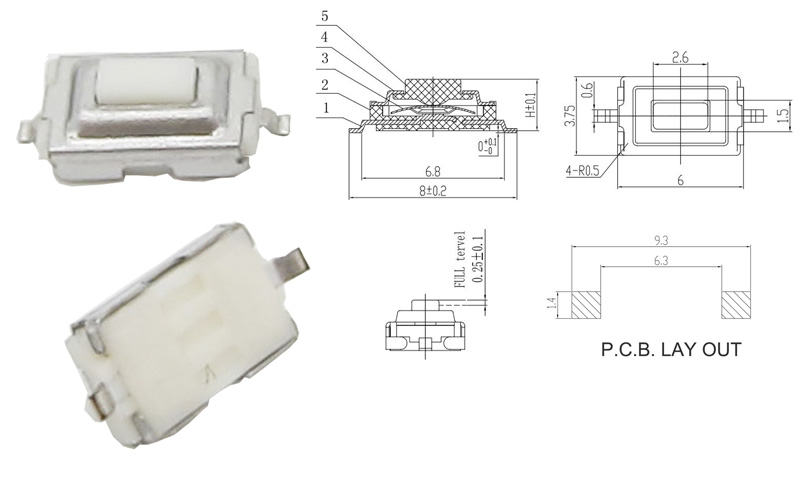

2 pin flat miniature best smd tactile switches


Quick details:

Model Number:KAN0441C
Type: SMD
Terminal: sliver plating
Soldering type: wave soldering
Salt Mist: 8h±1h
Operation life: 100,000 cycles
Certification: UL,ROHS,SGS
Damp proof tape: no
Protection Level: normal
Max. Current: 50mA
Max. Voltage: 12V

Package Type:
3000pcs/reel, 20 reel/carton, carton size: 44*34*34cm, GW: 111 KGS, N.W. 9.7 KGS

Leadtime :
MOQ or sample in 5-7 working days
Mass production: 10 working days

Certifications:
Factory certificate: TS16949,ISO9001,ISO14001,OHSA18001
Products: CE,ROHS, UL, REACH, ENEC, CQC,CCC

Supply Ability

200000 Piece/Pieces per Week

FAQ:
Q1: Where is your factory located ?
 A:We have three factories locates in Wenzhou,Hubei and Shenzhen

Q2: Is free samples available ?
 A: Sure

Q3:How to deal with the quality control ?
 A:  1) Factories all passed the certificate of TS16949,ISO9001,ISO14001,OHSA18001
        2) Supply kinds of tactile switch for famous brand such as SAMSUNG,LG,PANASONIC, MIDEA, HISENSE, SCHNEIDER, ARCADUAN,FLYCO, OMARON, CANON for more than 24 years.
        3) The the defected rate of production can be controlled within less than 0.1 %. once problem happen, we will offer you problem solution within 8 hours once get complaint and deal with the problem at customer processline or online guide.

Please set assurance to do business with us.
