Gangyuan Nice quality Side horizontal tact switch

KAN0671: DC12v 50mA, Electronic Push Tact Switch

  • Brand:

    Gangyuan
  • Item No.:

    KAN0671
  • Payment:

    T/T before shipment
  • Product Origin:

    ZheJiang China
  • Color:

    Black
  • Shipping Port:

    Ningbo, Shenzhen
  • Min Order:

    1000
  • Lead Time:

    5-7 working days depends on actual quan
Product Details

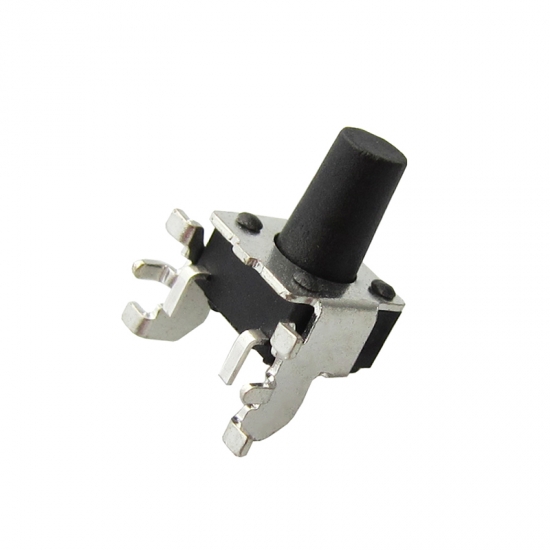

Gangyuan Nice quality Side horizontal tact switch

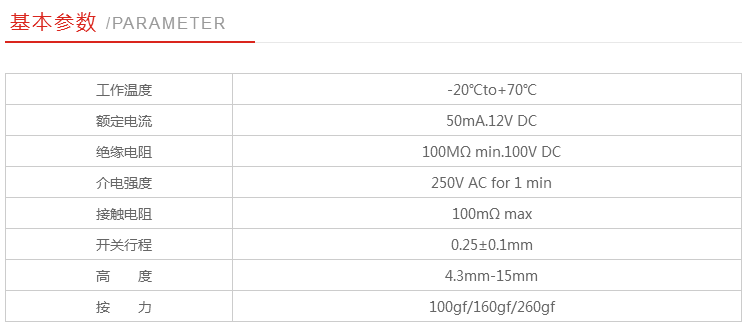

Basic Information

P/N KAN0671
Rating DC 12v, 50mA
Operating force
100gf /160gf/ 260gf ±50
Life
60,000/ 80,000/ 100,000 cycles
Full travel
0.25±0.1mm
Type Side Horizontal Tact Switch

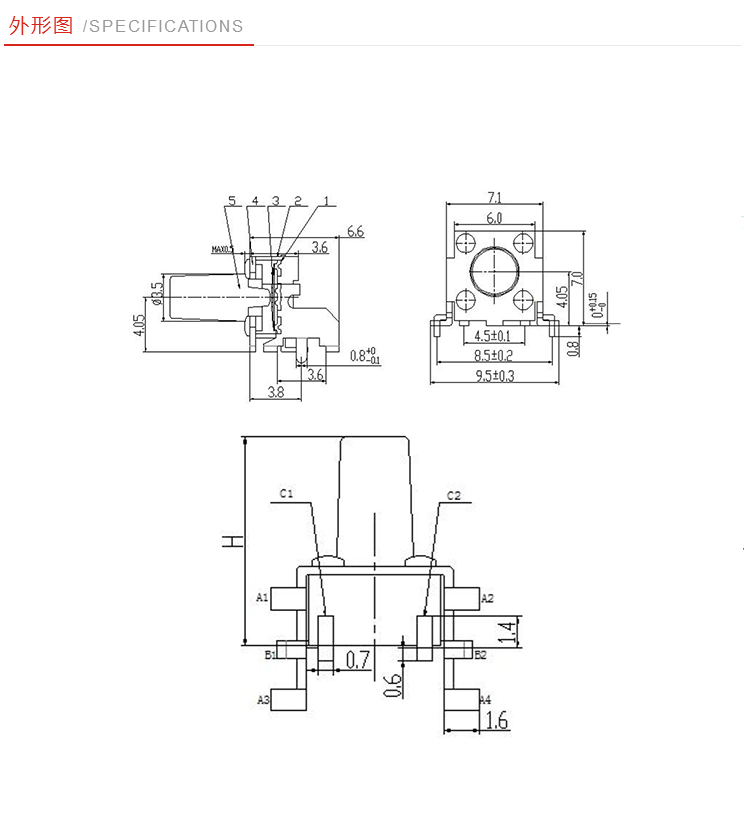

Dimention





Appliance

Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
