2 pins waterproof female dc power jack socket 30V 3A

2 pins waterproof female dc power jack socket 30V 3A

2 pin smart socket saves your time and smart your life

Quick Details

Model No.: DC-022B-2.5
Ratings ：30V 3A
Operation life: 5000cycles
Insulation resistance: ≥100MΩ
Contact resistance：≤0.03Ω
Dielectric voltage proof：AC500V (50Hz)/min
Certifications: UL  CE  ROHS  ISO9001

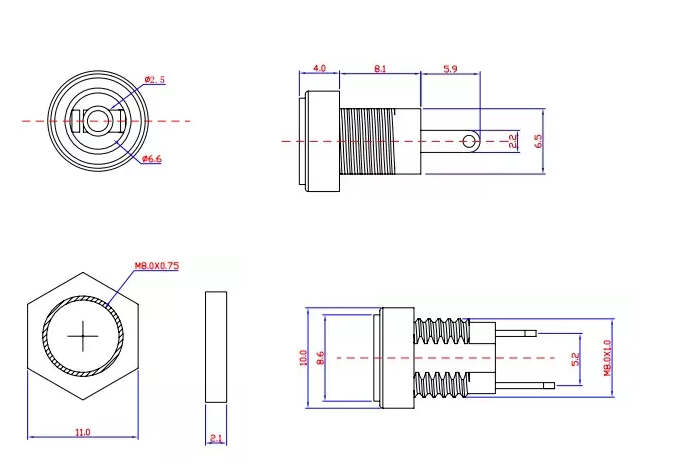

Dimension

Socket type

Socket-outlet
Fixed socket-outlet
Portable socket-outlet
Multiple socket-outlet
Socket-outlet for appliances
Rewirable plug or Rewirable protable socket-outlet
Non-rewirable plug or Non-rewirable protable socket-outlet

Application

   Sockets have a wide range of applications. As long as they are related to electricity, power connectors are basically used. For example, medical equipment, electric forklifts, tour buses, electric cruise ships, LED lighting, petroleum exploration, power communication systems and other industries and fields.

RFQ

1. Q: Are you manufacture/ factory? Location?
    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
    A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
   A: Yes, we have 100% test before delivery.
