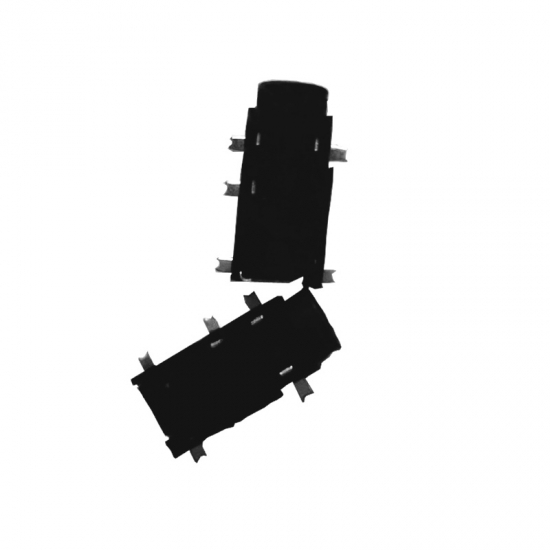

5 Poles audio jack normal plated Jack

smt stereo iphone jack 3.5mm audio earphone jack

  • Brand:

    Gangyuan
  • Item No.:

    PJ-381 5PINS
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Min Order:

    10pcs
  • Lead Time:

    3 working days for payment
Product Details


SMD 5 Poles audio jack normal plated Jack



Basic Information

Model No.:

PJ-381 5pins

Ratings

30V 0.5A

Operation life:

5000cycles

Insulation resistance:

≥100MΩ

contact resistance

≤0.03Ω

Dielectric voltage proof  AC500V (50Hz)/min
Insertion and extraction force  3~25 N

Application:

Audio and Video

Certifications:

UL  CE  ROHS  ISO9001

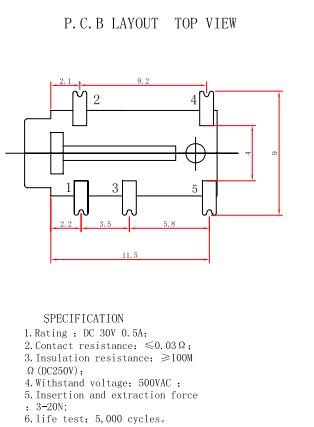

Dimension


 jack 35 4 broches.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact s

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
