12mm rotary encoder with switch

An encoder is classified into four types: mechanical, optical, magnetic, and electromagnetic induction types.

  • Brand:

    Gangyuan
  • Item NO.:

    GE1103S-D2-MAF10/4-1
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Metal
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

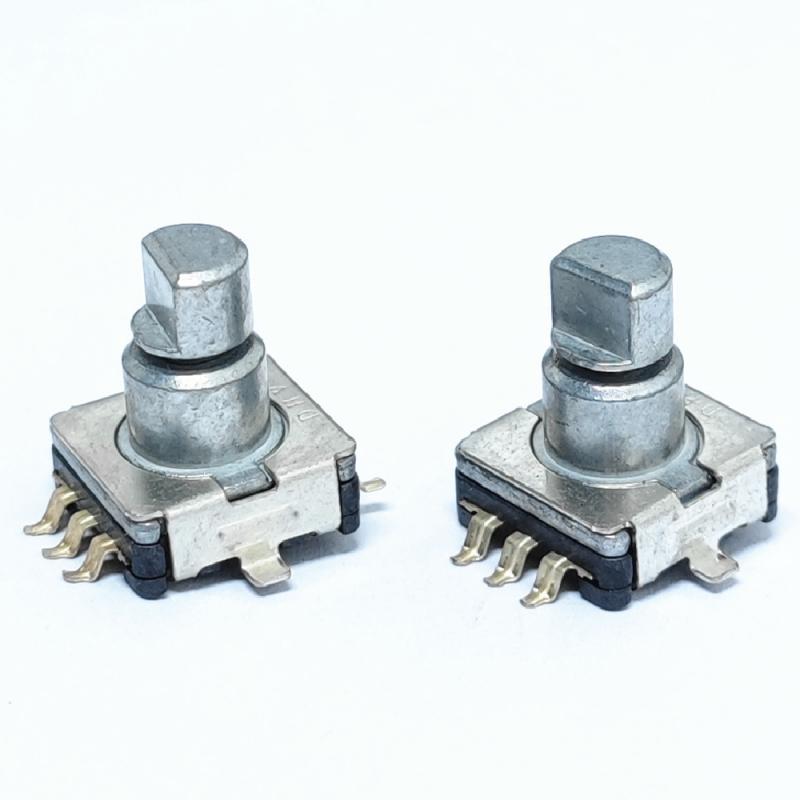

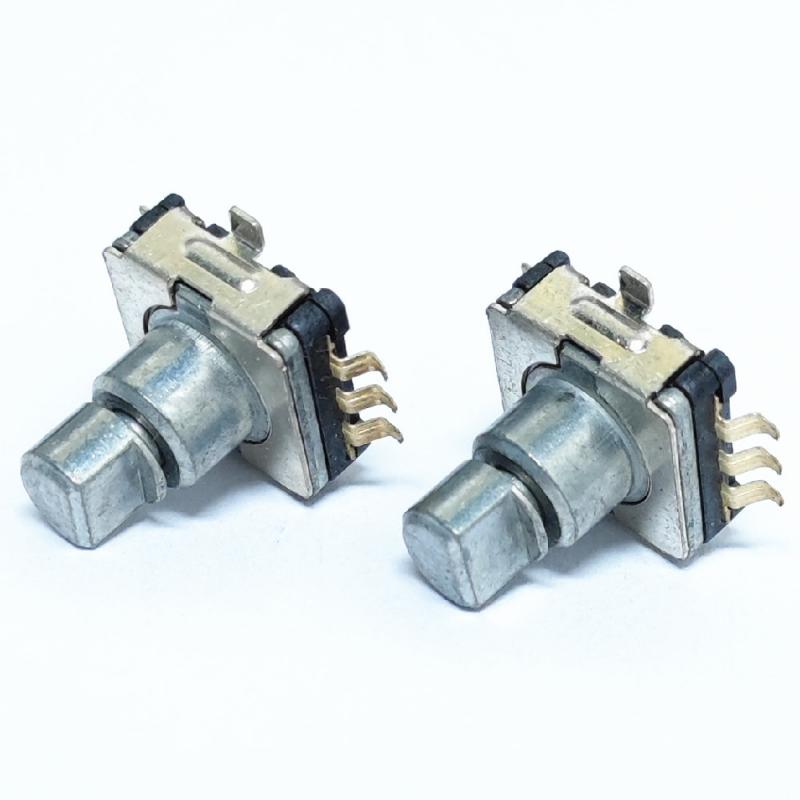

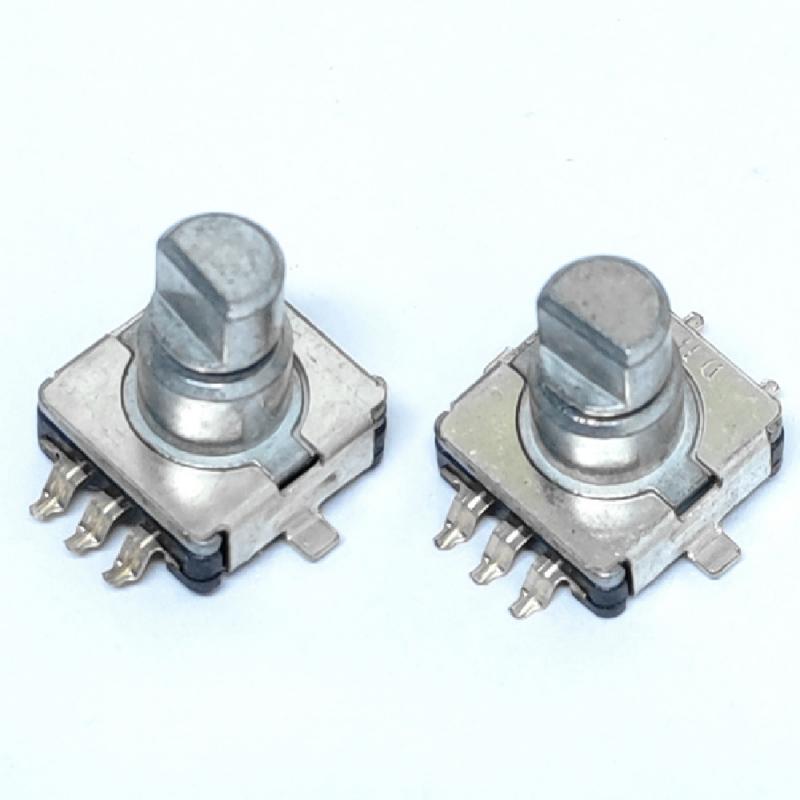

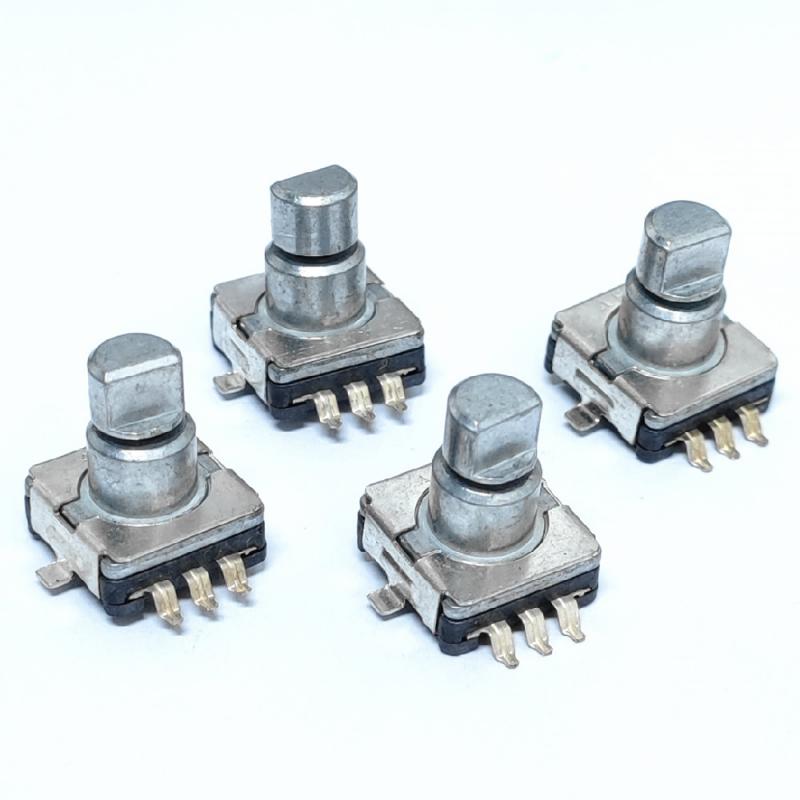

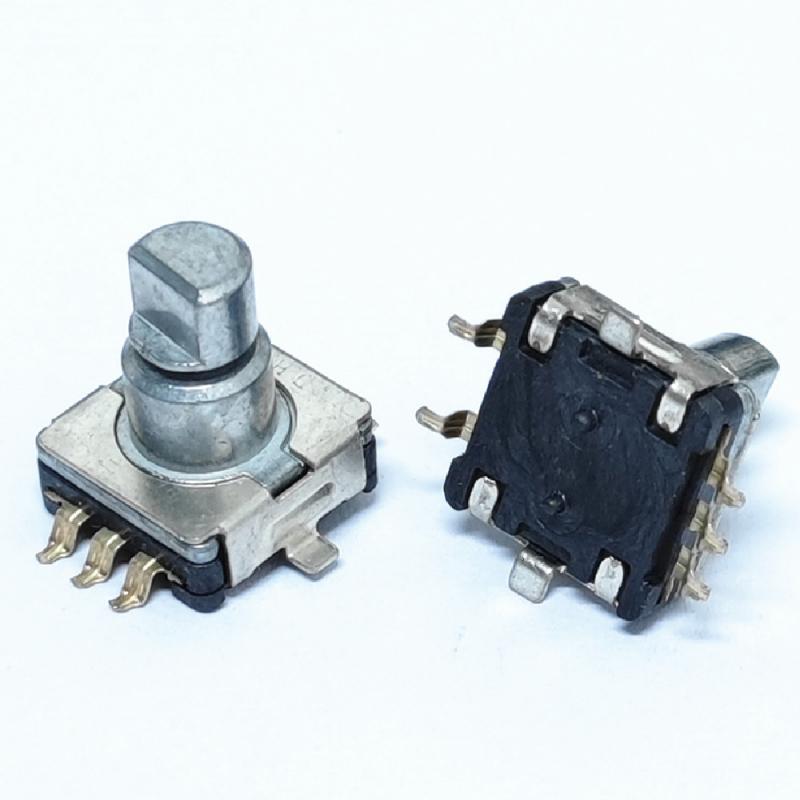

encoder electronics push button switch 12mm smd rotary encoder


 Product Attributes

Type: Rotary encoder  (absolute encoder and incremental encoder)

Rated voltage:DC 5V

Output signal format: 15 Phase ( Or 20 Phase )

Number of positions: 30 ( Or 20/18/0 )

Mounting Type: Panel, PCB Through Hole

Built in Switch: Yes

Travel of switch: 0.5±0.3 mm ( Or 1.5±0.3 mm )

Switch-life: 30,000±200cycles

Operating temperature range :-30℃ to+80℃

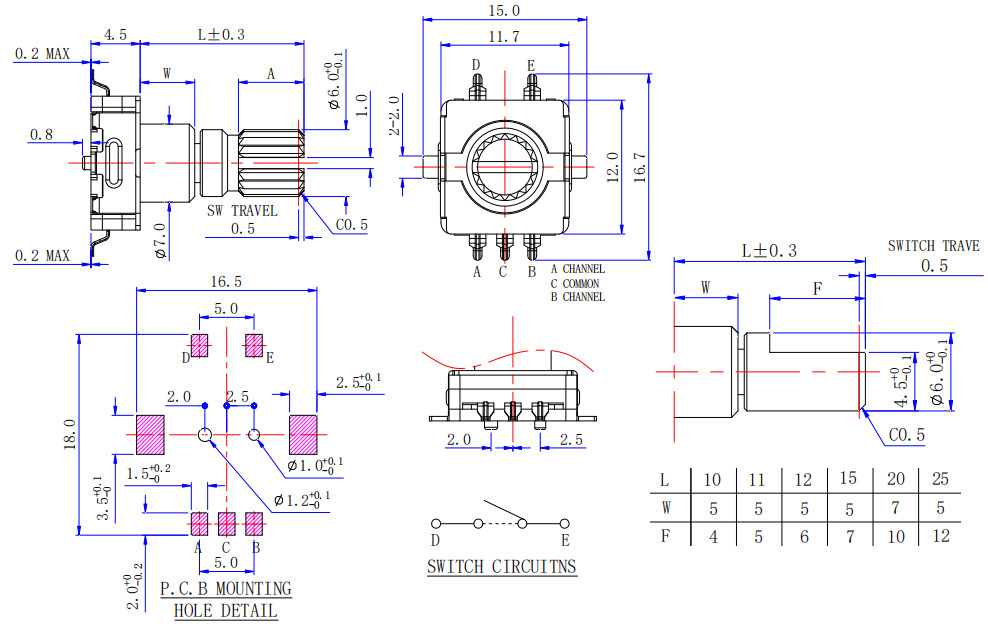

 Encoder circuit

Rotary encoder with push button

L: 10MM /  W: 5MM / F: 4MM

 Applications

Radios

Audio-visual equipment

Consumer electric appliances

Musical instrumentation

Communications equipment


 Advantages of Products

1. The product positioning is obvious, and the rotating feel is smooth.
2. Stable output, stable installation, thin design.
3. Shaft sleeve, shaft core selection, can be customized according to customer needs.


Leave A Message

If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
