Home Encoder & Potentiometers incremental encoder for consumer electronics

incremental encoder for consumer electronics

It is a through-shaft incremental encoder

  • Brand:

    Gangyuan
  • Item NO.:

    GE041X2-2.9/1.65-2V1
  • Order(MOQ):

    2000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Metal
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Product Detail

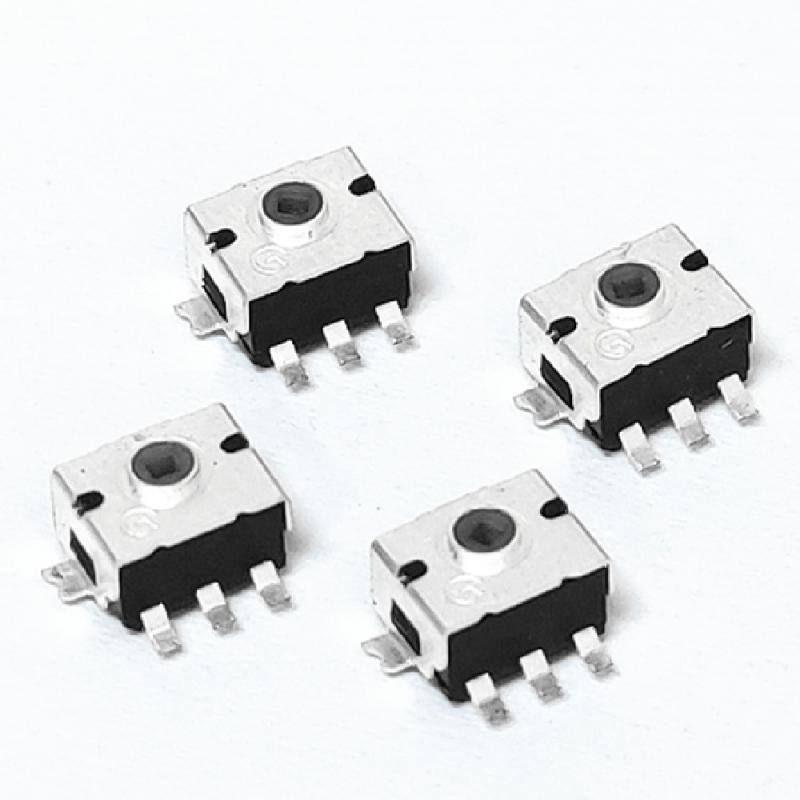

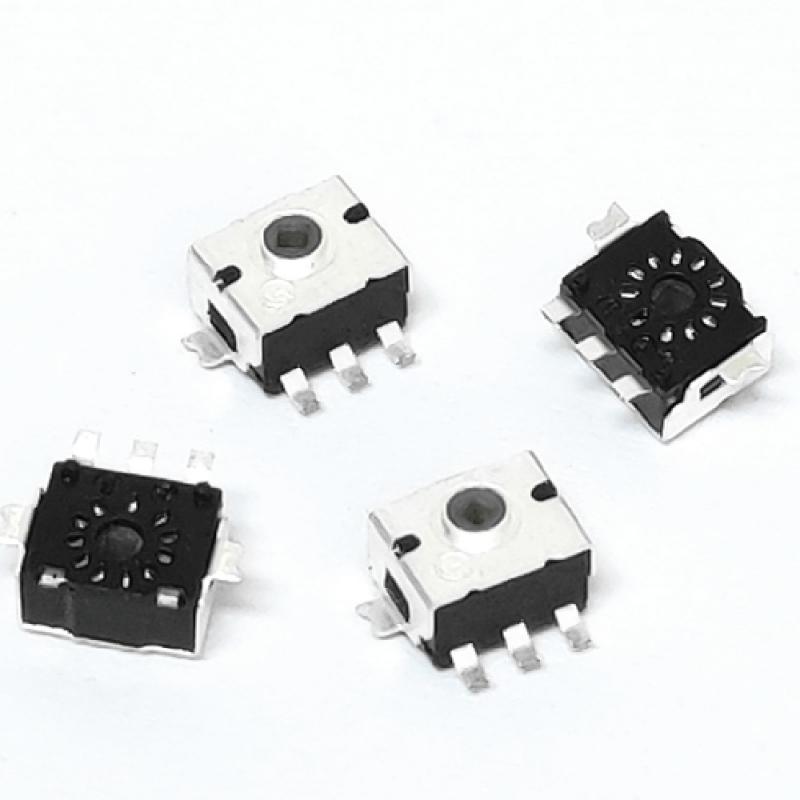

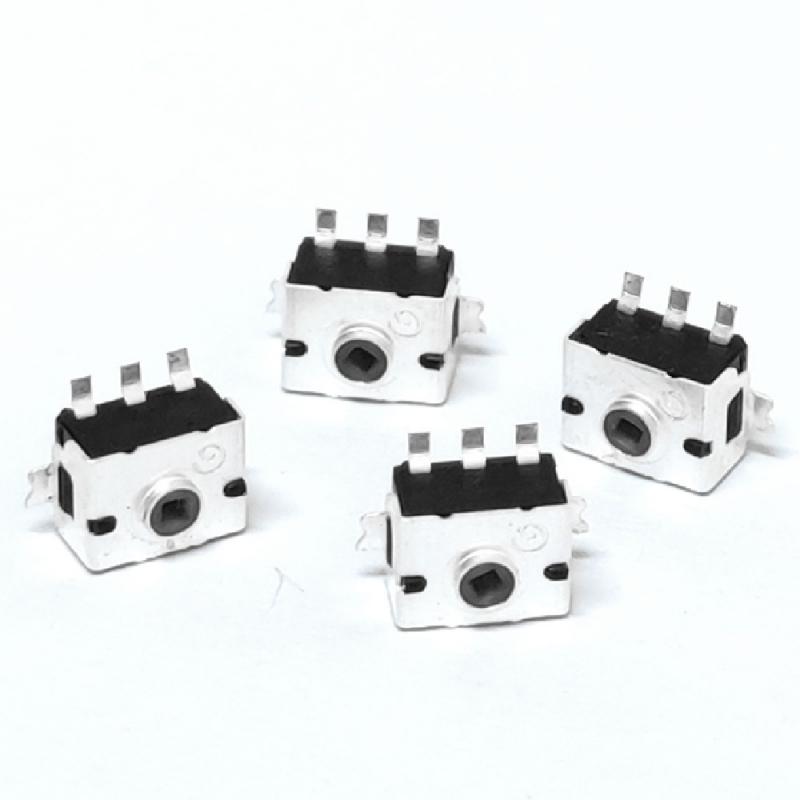

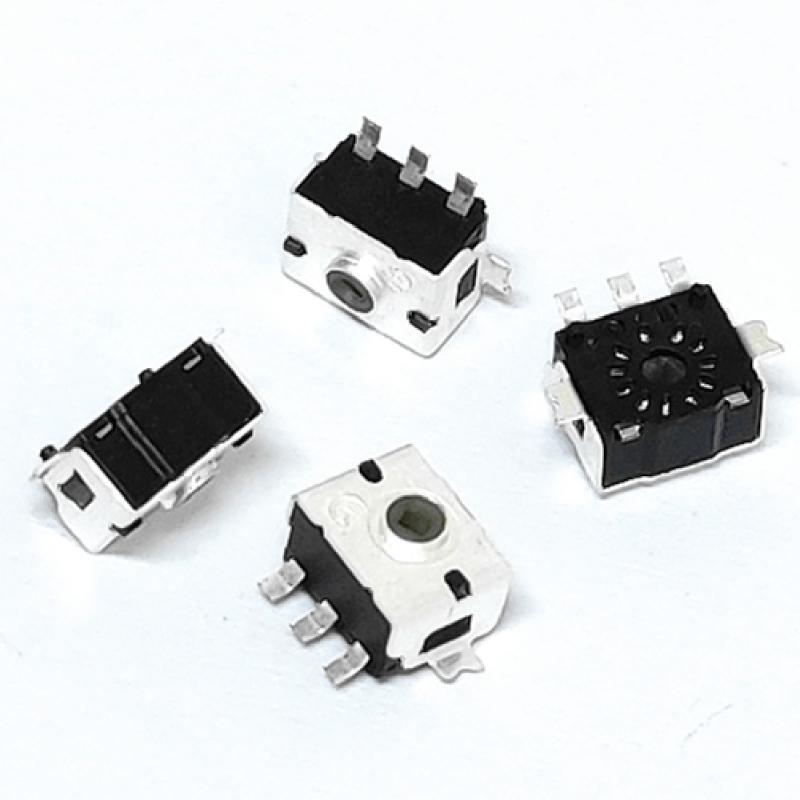

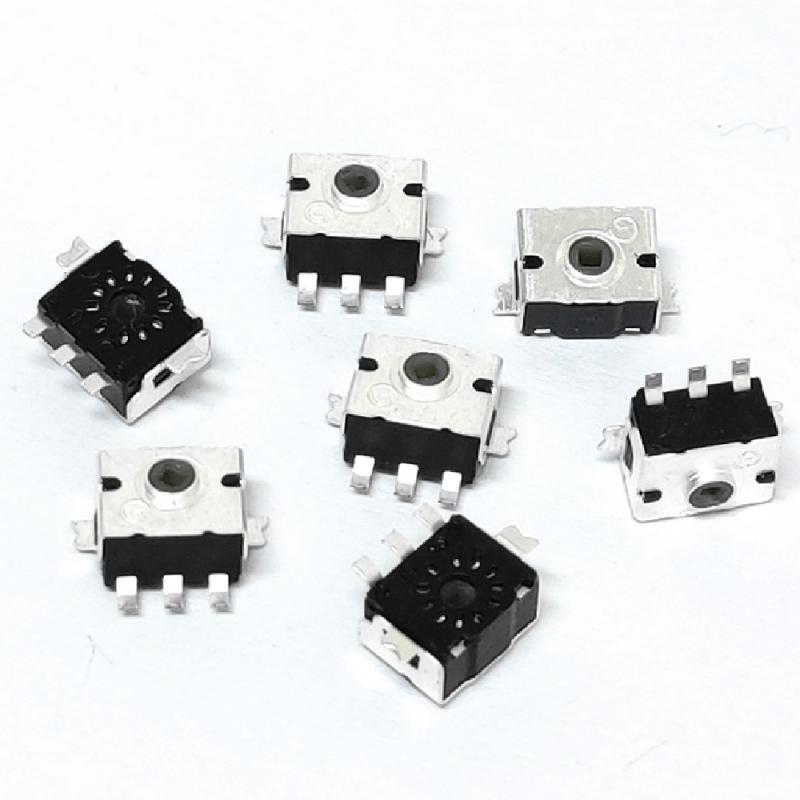

4.9*3.9mm mini rotary through-shaft incremental encoder

encoder manufacturers


 Characteristics

Size: 4.4*3.9*2.5mm

Rated voltage: DC 5V

Resolution: 12 pulses/360°

Sliding noise: 3.5V MIN

Operating Force: 150±50gf

Number and position of detent: 12detents(Step angle:30°±2°)

Encoder types: 04mm size low-profile thin rotary encoder (incremental type) for microscopic current circuits.

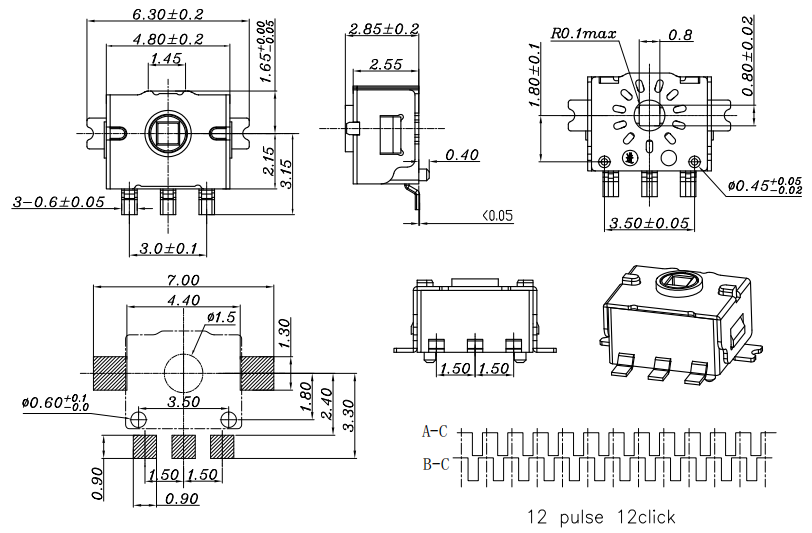

 Encoder circuit

 Product Application


This miniature encoder is widely used in home smart watches, such as electronic cigarettes, Bluetooth audio, earphones, small medical instruments,

wireless controllers and other equipment, mainly used in smart watches, headphones, head massagers, Bluetooth headphones , Bluetooth audio,

game console control handle, drone remote control and other fields. It has the characteristics of high frequency of use and strong randomness of operation.


 Factory


Gangyuan Electronics was established in 1994 and has 28 years of manufacturing experience. For 28 years, it has been focusing on the research and development and manufacture of tact switches, micro switches and other electronic switches. More than 2000 products. The company's registered capital is 34.48 million RMB, and it has 3 modern standard workshops. Covers a total area of 63148㎡.
