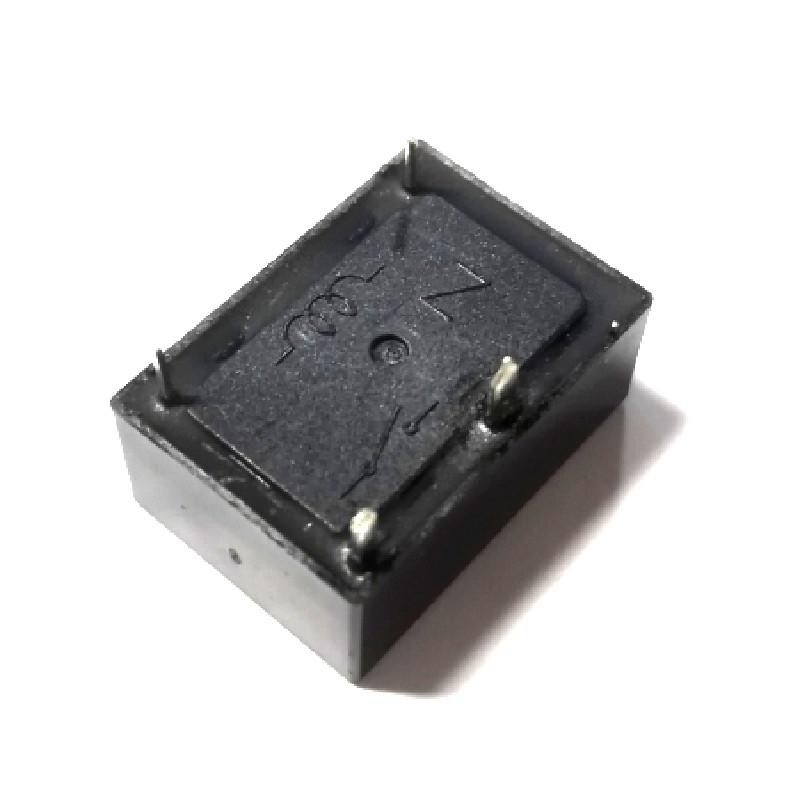

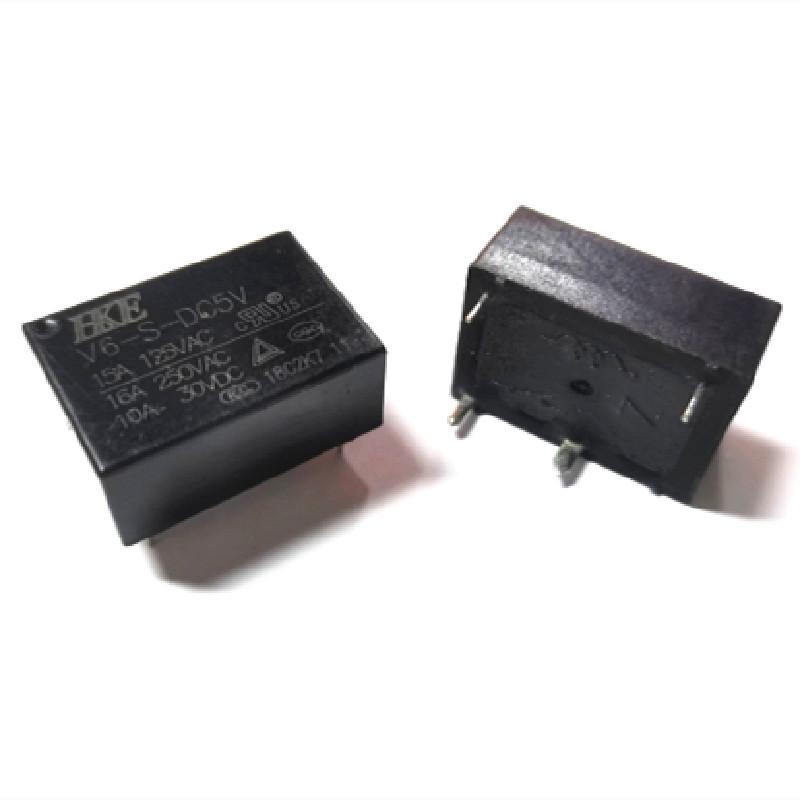

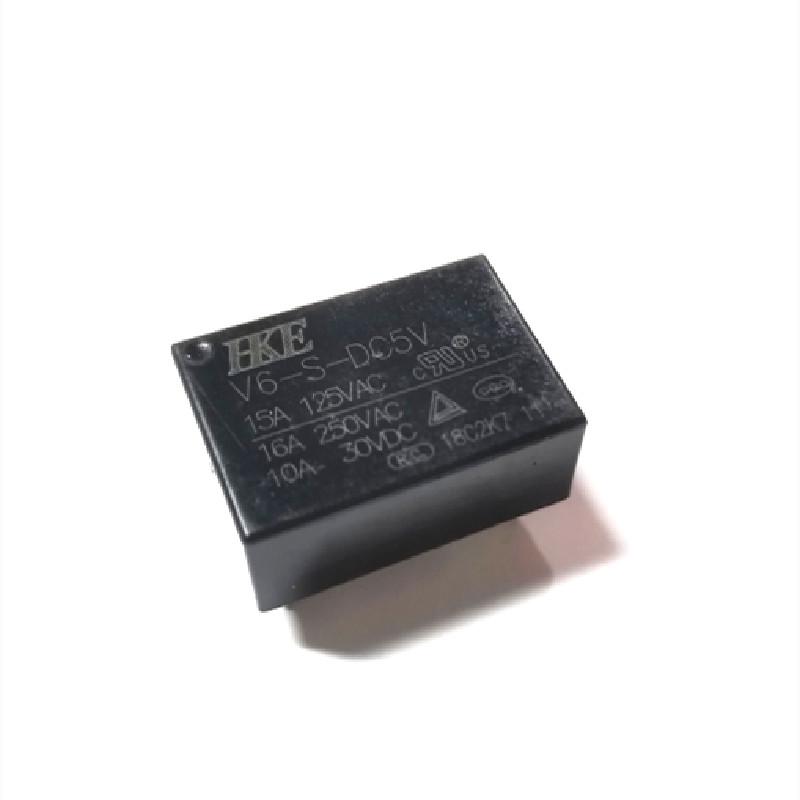

Small size 4pin 16A relay

250VAC/30VDC safety low profile relay

Basic Information

Product Features

1.Type: Power Relay

2.Low profile, flat type relay

3.Max. Switching capacity: 15A

4.Tungsten lamp load: 10A 125VAC

5.High sensitivity 200mW

Our Advantage

1.Free sample are welcome, experience of more then two decades 24 years in switch manufacturing.
2.Two thousands invention patents and 47 utility model patents.
3. Assembly process in 10,0000 grade dust-free workshop to guarantee quality. 3 factories,WenZhou, HuBei and ShenZhen. ShenZhen is a R&D center and factory.
4.Owing TS16949,ISO9001,ISO14001,OHSA18001 system.Products passed CE, ROHS,UL,REACH, ENEC etc.
5, 24 years honest switches supplier for famous brand all over the world and in China such as  SAMSUNG,LG,PANASONIC, MIDEA,HISENSE, SCHNEIDER, ARCADUAN,FLYCO, OMARON, CANON, so always offer to you brand high quality tact switches, push pull switch, detector switches, slide switches, non-locking switches, micro switches, rocker switches, transformer, relays and sockets etc.

Relay Application

1. Industrial automation control: manipulator, power control, protection circuit.

2. Household appliances: microwave oven, TV, air conditioner, dishwasher, etc.

3. UPS power supply: protection circuit, switching circuit.

FAQ

1. Q: Are you manufacture/ factory? Location?
    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.
3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
    A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: How do you proceed order for relay?
   A: First let us know your requirements or application.
       Secondly we quote according to your requirements or our suggestions.
       Thirdly customer confirms the samples and places deposit for formal order.
       Fourthly we arrange the production.
