Home Switch Micro switch G15 Series 5e4t125 micro switch factory

5e4t125 micro switch factory

Micro-switches are switches that need a very little amount of force (push/pressure) to operate at a rapid speed. They are very reliable, fast and efficient to use. A micro-switch is also known as a miniature snap-action switch.

  • Brand:

    Gangyuan
  • Item NO.:

    G15-10SM-01-40-18
  • Order(MOQ):

    500
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7-14 working days for payment
  • Outline (mm)

    20.00mm x 10.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

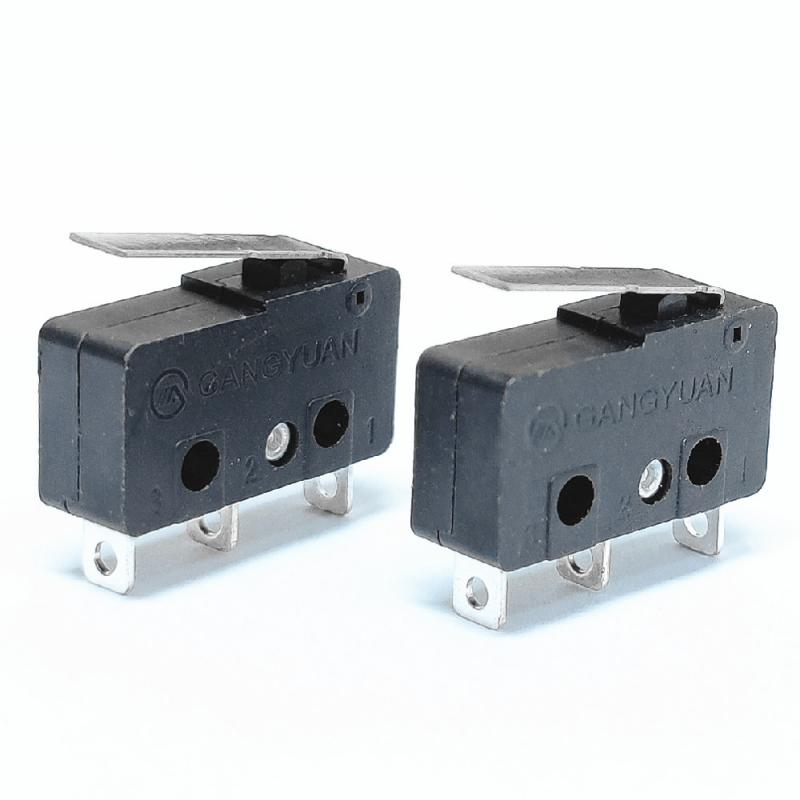

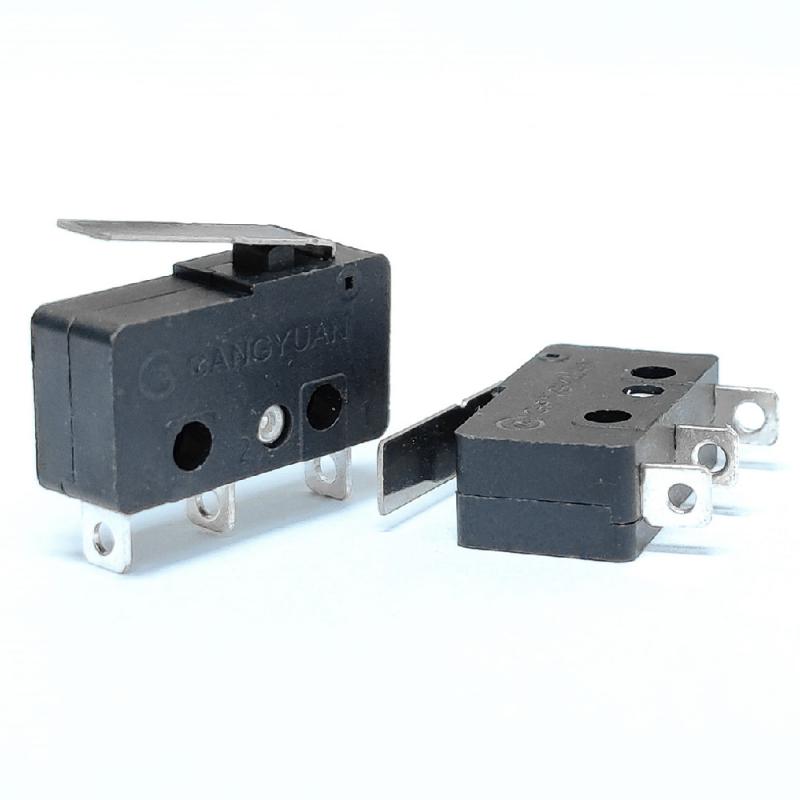

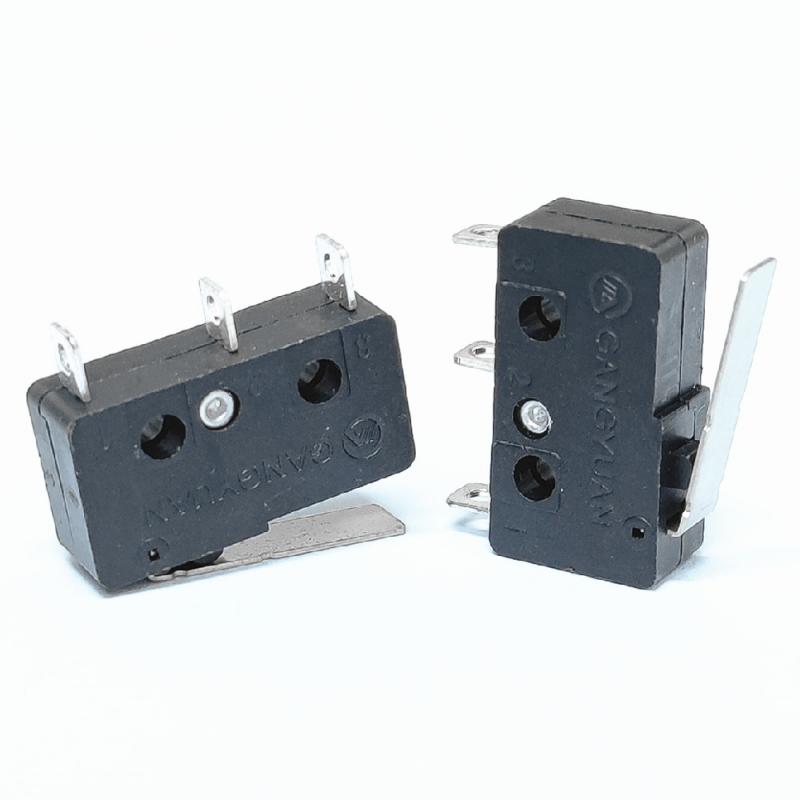

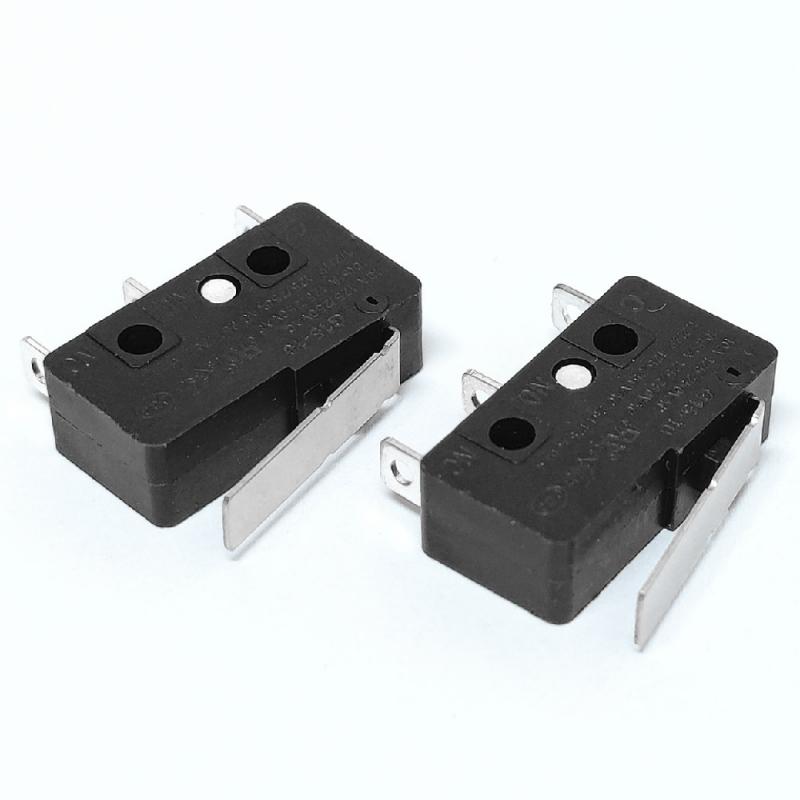

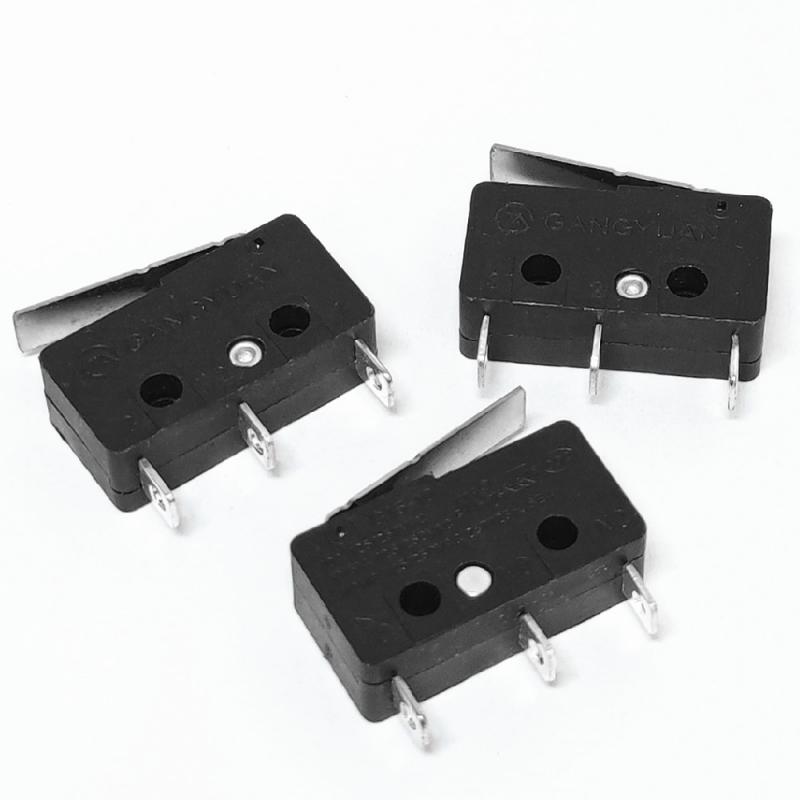

Microswitch snap action 1NO 1NC straight lever micro switch


 Micro switch specification

Voltage Rating:1/2HP 125/250V AC 25T125μ 5E4

Current Rating: 10A

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Dielectric Withstanding Voltage: 1000V AC 1Min

Soldering Temperature: 260±5℃ 5s

Operating Force: 40±20gf

Life Time(mating cycles): 10000 Cycles

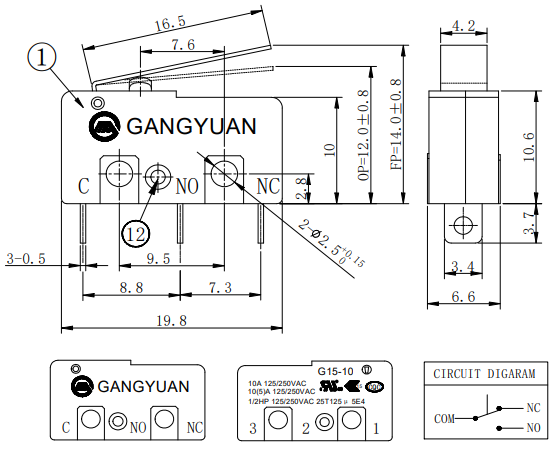

 Drawing

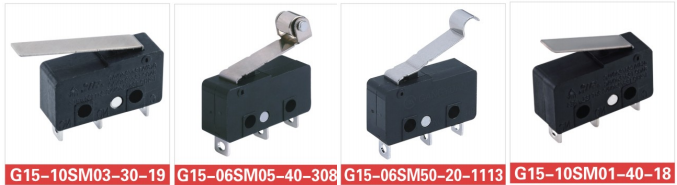

 Micro switch of type


Depending on the application we can select the type of micro switch using. Various types of lever terminals are available in microswitch

like Pin Plunger, Short Straight lever, Standard Straight Lever, Long Straight Lever, Extended Straight Lever, Small Simulated Roller Lever, Standard Simulated Roller Lever, Roller Lever, L-Shaped Lever.


 Application. ( Micro switch company )

Microswitches are in 3D printers, smart applianc es such as microwaves, air fryers, power tools.
3D printer / Senses door open or closed / Robotic projects / Refrigerators / HVAC
