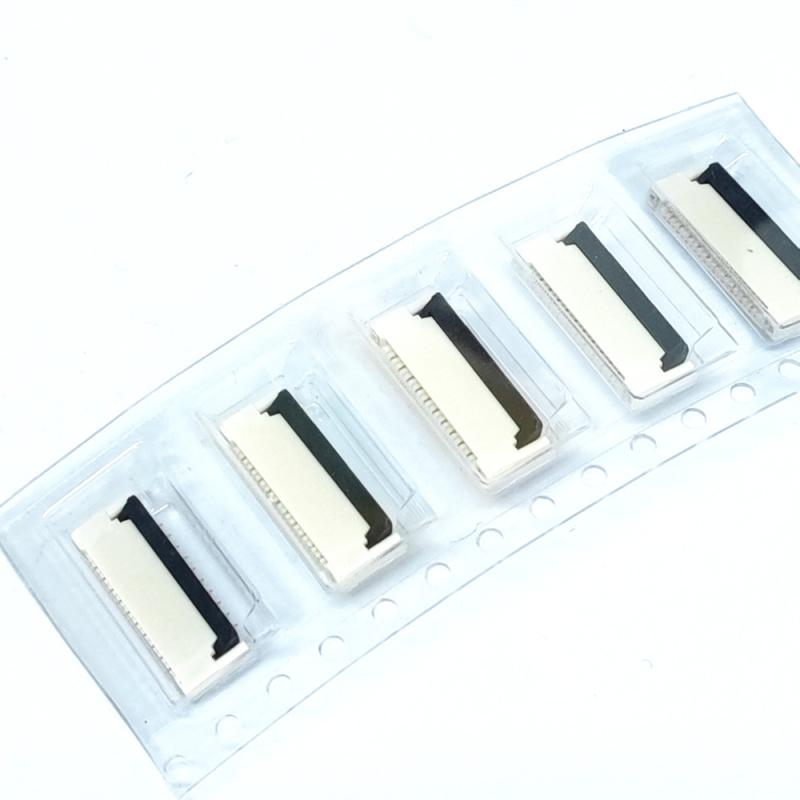

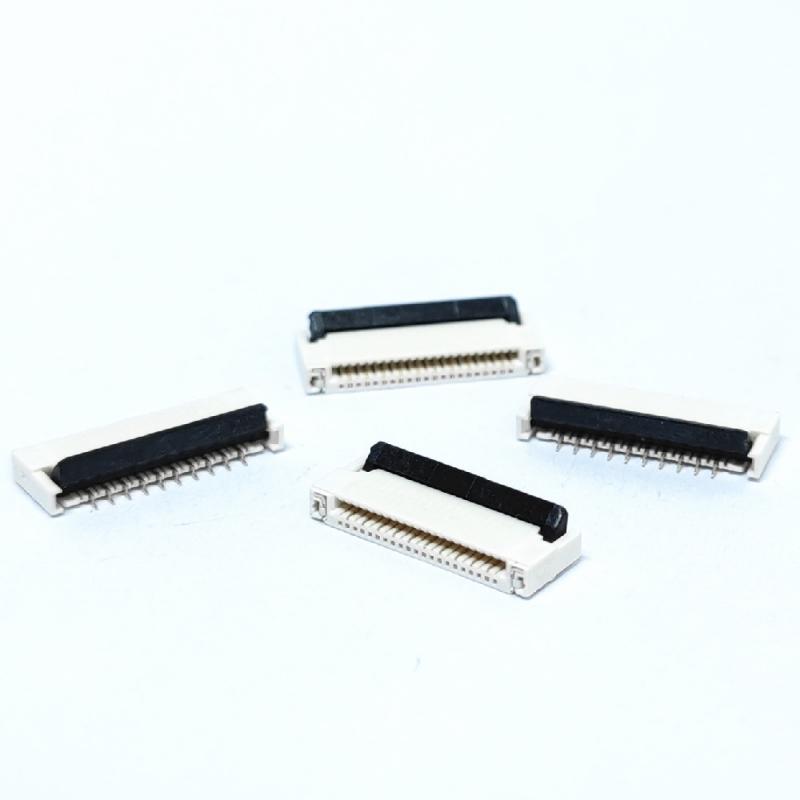

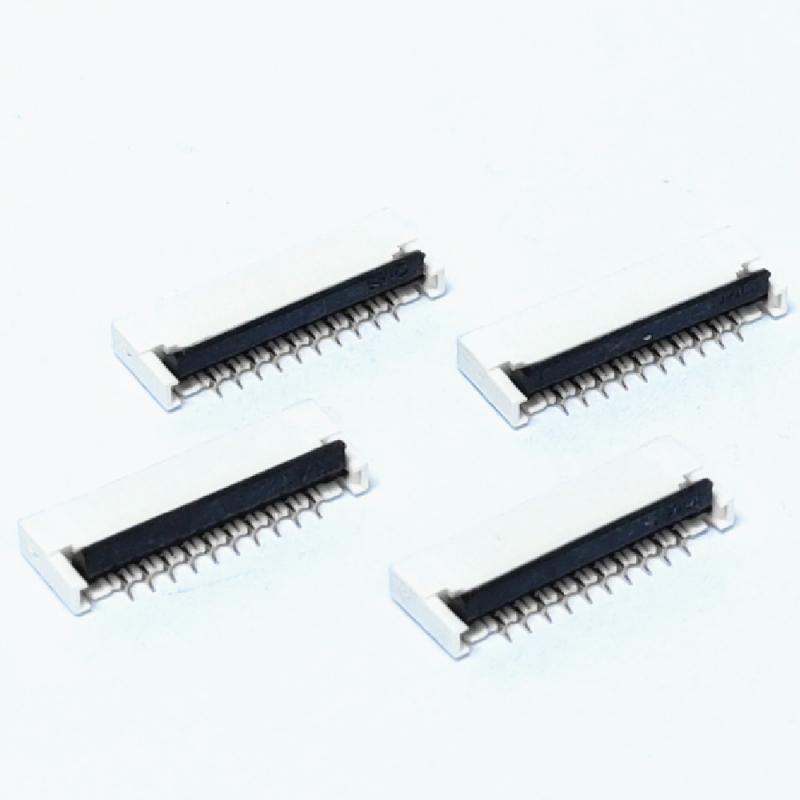

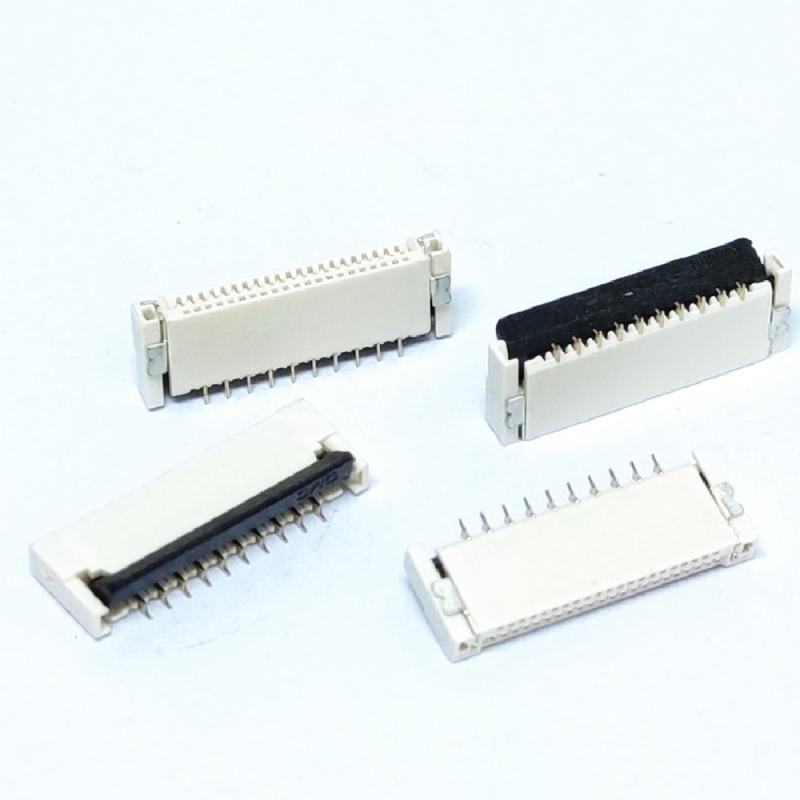

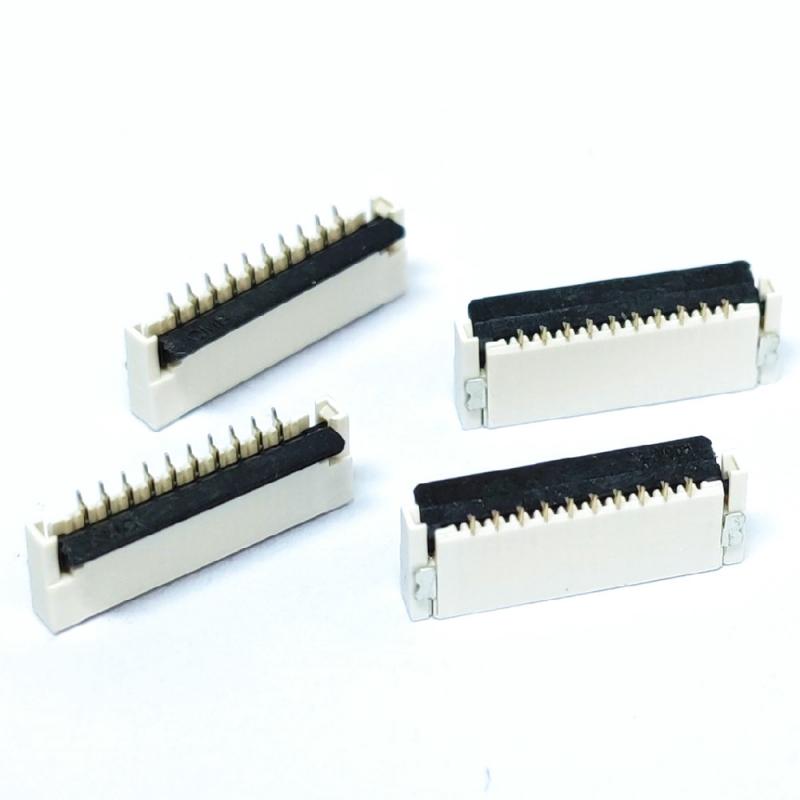

Flat Flexible Cable Connector with 0.5mm pitch. Orientation is side entry and surface mount, with a back flip lock actuator.
Brand:
GangyuanItem NO.:
GYFB1020-XXRD-GOrder(MOQ):
1500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
WhiteShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentSMT PCB mount 10 pin 0.5 pitch flex printed circuit connector
Bottom 0.020" (0.50mm) Surface Mount FPC Connector
Electrical specification
Series name: right angle type FPC Connector
Pitch between: 1.0 mm Pitch

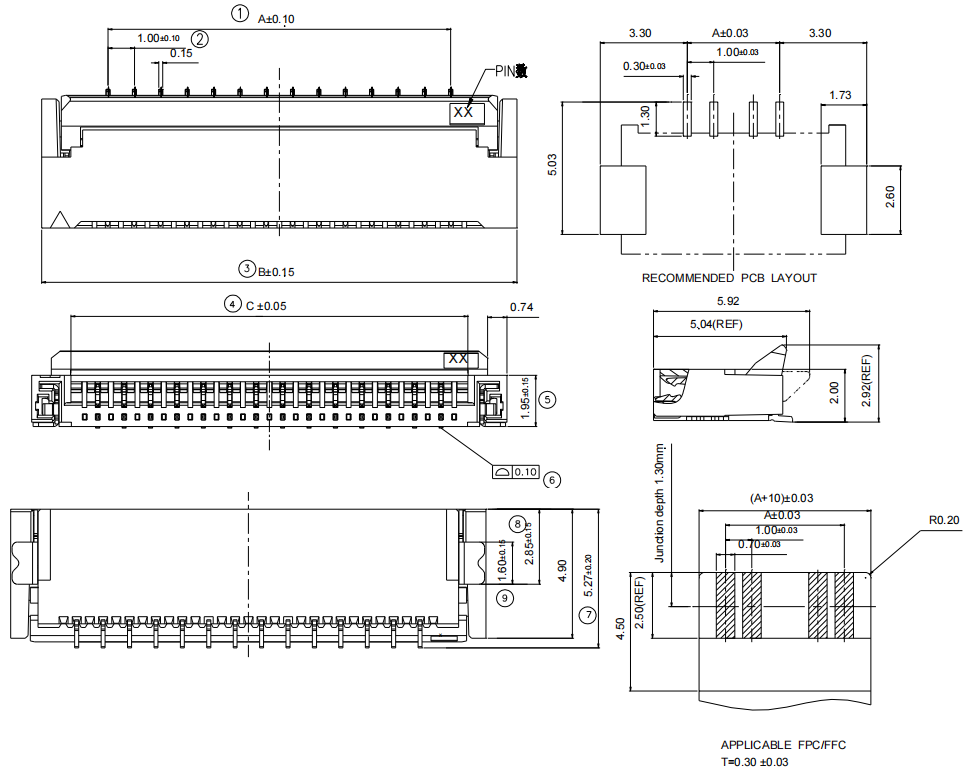

FPC connector dimentions
Features
Type: Forward Insert Back Flip Cover
1. Dual Contact
2. Smooth FPC cable insertion guide
3. Back-Flip design, reduced assembly
4. Thick FPC cable design, not easy to be bending and deformation when insert
5. Prevent FPC cable from falling out
Instruction upon usage
Warning!!
|
The whirling angle can't be greater than 90
degrees.
|
 |
|
The strength of exerting pressure should be average and
pushing actuator at the center .
|
 |
|
To lift actruator at the center. |
 |
|
The roughness of PCB board must be in 0.1mm max. |
 |
|
Products not inserted flip lid. |
 |
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Two or more wire windings placed around a common magetic core is the physical structure of a transformer.
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
Two or more wire windings placed around a common magetic core is the physical structure of a transformer. It’s electrical purpose is to transfer power from the primary winding to the other windings with no energy storage or loss
The extensive function of the connector is to rely on the connection of the cable (FPC or FFC) to conduct the signal between the two lines on the PCB.
FPC: Flexible Printed Circuit board, It uses soft materials and has good bending, folding and stretching properties.
The connector with double contact points can improve the directionality of the contact points of the cable assembly when the customer is in the research and development stage.
A type of connector intended to connect FPCs (Flexible Printed Circuits) and PCBs (Printed Circuit Boards). A method of connecting FPCs is directly inserting them into the connector. Connection with FFCs (Flexible Flat Cable) is also possible.
There are another type that plating with mylar membrane.
